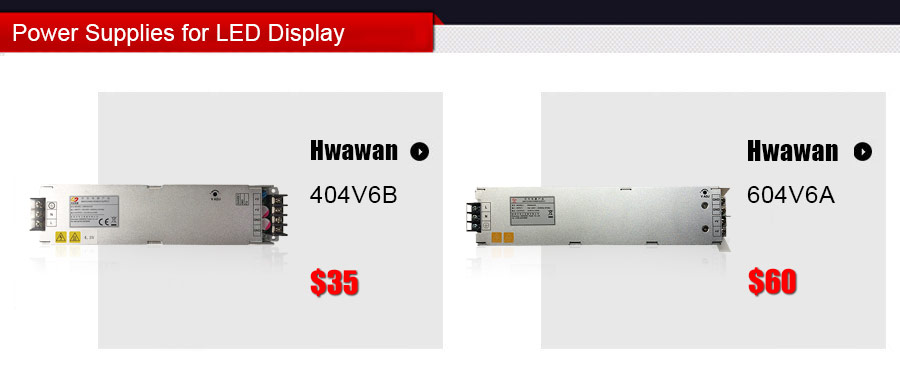

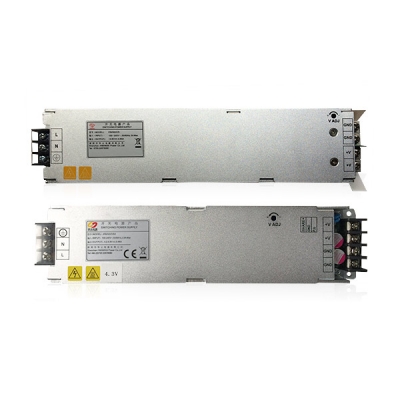

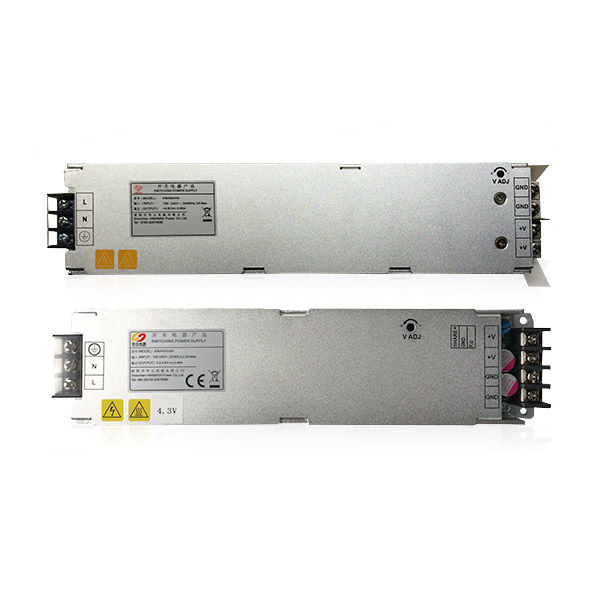

Hwawan Power Supplies for LED Display Screens

Hwawan Power Supplies for LED Display Screens #HWA

Price:US$ 35.⁰⁰

Model No:: HWA404V6B HWA604V6A

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

MEANWell Power Supplies for LED Display Screens

led display receiving cards sending card

receiving card sending card control card of led display

Have you found out the suitable led card for your project? More advises of purchasing led sending card please contact our online service! Enjoy your shopping moment!

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

MEANWell-1 Power Supplies for LED Display Screens
US$ 21.77

Add to cart
Power Supplies for LED Display Screens (CZCL)
US$ 11.20

Add to cart
Power Supplies for LED Display Screens (youyi)
US$ 8.30

Add to cart
Power Supplies for Led Strip Curtain Display
US$ 38.60

Add to cart
MEANWell-2 Power Supplies for LED Display Screens
US$ 38.46

Add to cart

Quick Index: A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0-9 Sitemap Mobile Site

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

Model Number	HWA404V6B	HWA604V6A
Brand	HWAWAN
Size	146×55×26mm	250×53×26mm
Wiring Instructions	Input (L N FG), output (GND GND + V + V)
AC Input Voltage Range	90～265VAC
Input Rated Voltage	110/220VAC
Input Voltage Frequency	47～63Hz
Overall Efficiency	≥91％
Output Voltage	4.2V
Adjustable Output Voltage Range	4.2～4.6V
Output Rated Current	0～40A	0～60A
Output Ripple and Noise (Vp-p)	200mA
Boot Time	1s
Output Overvoltage Protection	5.5-6V
Output Overcurrent Protection	48～70A	70～90A
Output Short Circuit Protection	Have
Working Temperature	－20～60℃
Storage Temperature	－25～80℃
Cooling Method	Air Cooled
Dielectric Strength	Input to output 3000VAC / 1min / 10mA
	Input to ground 1500VAC / 1min / 10mA
	Output to ground 500VAC / 1min / 10mA
Leakage Current	＜1.0mA
MTBF	≥40000 hours
Safety / EMC Standards	According to GB4943-2001, EN55022, EN55024 design
Weight	0.3kg/PCS	0.53Kg/PCS

Hwawan Power Supplies for LED Display Screens #HWA
