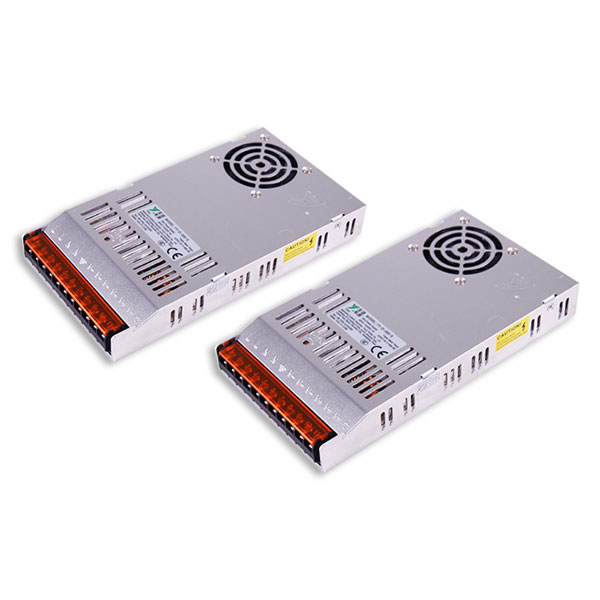

Meanwell, G-energy and CZCL Power Supply for LED Display Screens

Power Supplies for LED Display Screens (youyi) #YY

Price:US$ 8.³⁰

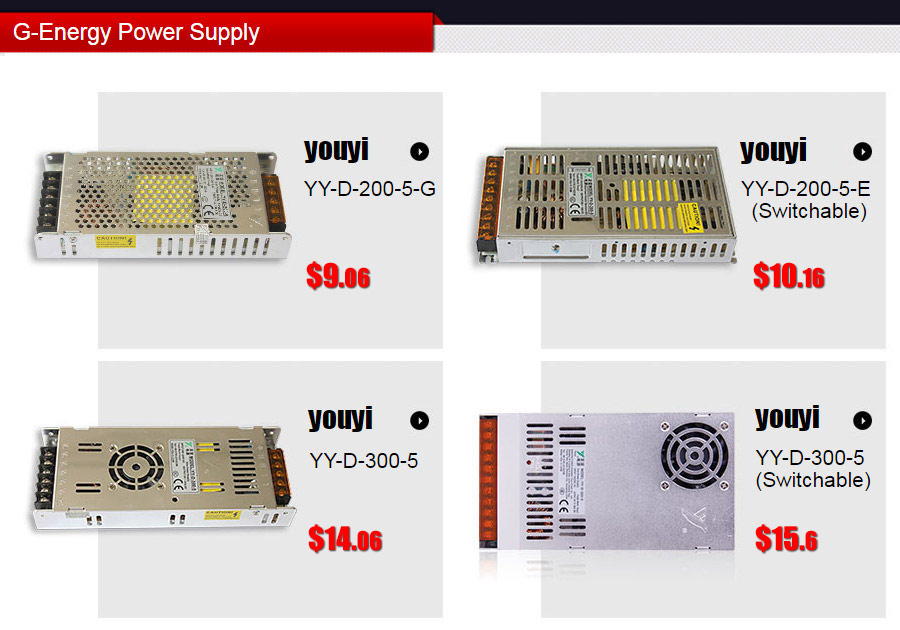

Model No:: youyi-YY-D-200-5-G youyi-YY-D-200-5-E(Switchable) youyi-YY-D-300-5 youyi-YY-D-300-5(Switchable)

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

led display receiving cards sending card

receiving card sending card control card of led display

Meanwell, G-energy and CZCL power supply is manufactured with strict standard and requirements which make it run well and work efficiency. More advises of select power supply please contact our online service. Enjoy your shopping moment!

Model Number	YY-D-200-5 AG	YY-D-200-5AE(switchable)	YY-D-300-5	YY-D-300-5(Switchable)
Brand	you-yi
Size	190×86×30mm	190×98×30mm	212×85×30mm	212×97×30mm
Wiring Instructions	Input（L N FG ）、Output（ V- V- V- V+ V+ V+)	Input（L N FG ）、Output（ V- V- V- V+ V+ V+)	Input（L N FG ）、Output（ V- V- V- V+ V+ V+)	Input（L N FG ）、Output（ V- V- V- V+ V+ V+)
AC Input Voltage Range	200～240VAC	110～130VAC、180～240VAC	200～240VAC	110～130VAC、180～240VAC
Input Rated Voltage	220～240VAC	110、220VAC Switchable	220～240VAC	110、220VAC Switchable
Input Voltage Frequency	47～63Hz
Average Input Current	1.8A	1.8A	2A	2A
Overall Efficiency	88%	84%	88%	84%
Output Voltage	5V
Adjustable Output Voltage Range	5V±10％
Output Rated Current	0～40A	0～40A	0～60A	0～60A
Output Ripple and Noise (Vp-p)	100mA
Boot Time	50mS
Output Overvoltage Protection	5.75-7.5V
Output Overcurrent Protection	41-50A	41-50A	61-70A	61-70A
Output Short Circuit Protection	Have
Working Temperature	－30～60℃
Storage Temperature	－30～85℃
Cooling Method	Fan cooling
Dielectric Strength	Input to output 3000VAC/1min/3mA
	Input to FG 1500VAC/1min/3mA
	Output to FG 500VAC/1min/3mA
Leakage Current	≦2mA
MTBF	≥40000 hours
Safety / EMC Standards	Design refer to GB4943,EN60950 / Design refer to GB9254,EN55022 class A
Weight	0.6kg	0.65kg	0.65kg	0.67kg
