Meanwell, G-energy and CZCL power supply is manufactured with strict standard and requirements which make it run well and work efficiency. More advises of select power supply please contact our online service. Enjoy your shopping moment!

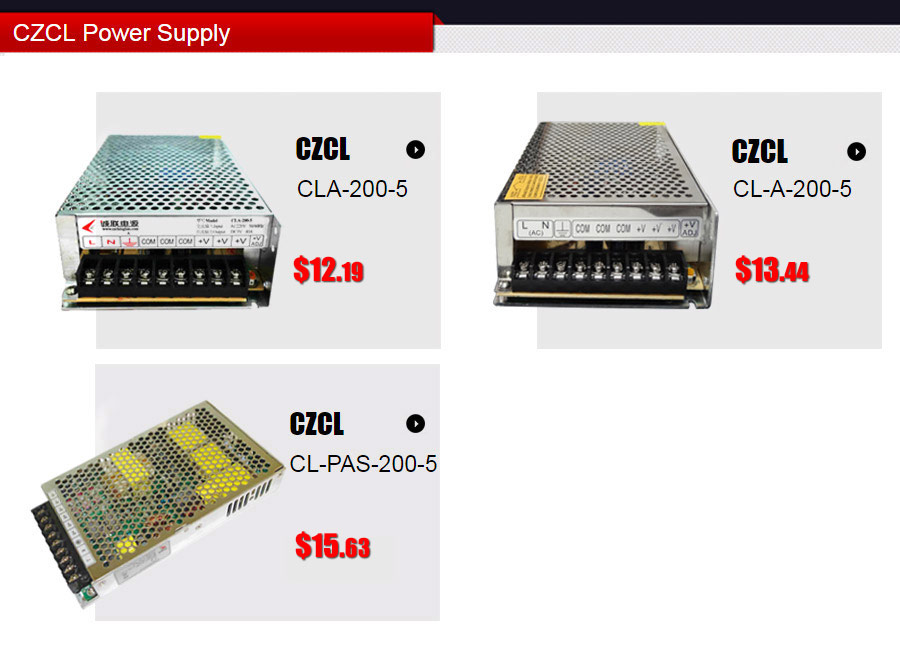

Model Number

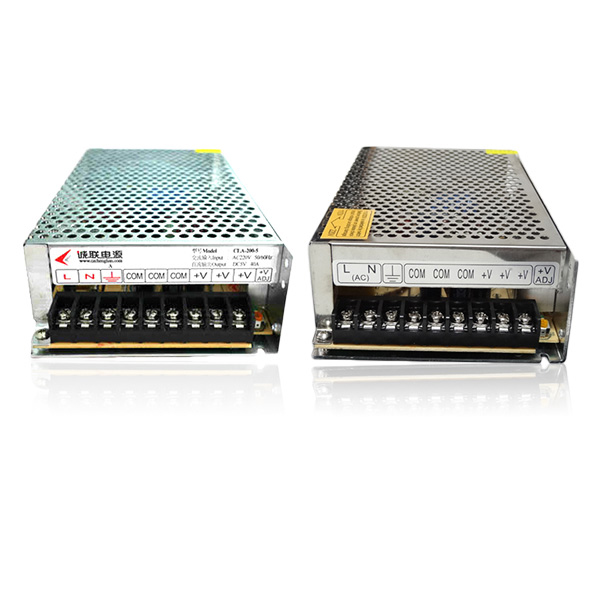

CLA-200-5
CL-A-200-5(Switching Power Source)
CL-PAS-200-5
Brand
CZCL
CZCL
CZCL
Size
199×110×50mm
190×83.5×30.5mm
Wiring Instructions
Input(L N FG )、Output(COM COM COM +V +V +V)
Input(L N FG )、Output(COM COM COM +V +V +V)
AC Input Voltage Range
176~264VAC
90~130VAC、176~264VAC
190~250VAC
Input Rated Voltage
180~250VAC
110、220VAC Switchable
200~240VAC
Input Voltage Frequency
47~63Hz
50~60Hz
Average Input Current
1.8A
1.8A (220VAC)
1.8A (220VAC)
Overall Efficiency
≥78%
79%
≥88%
Output Voltage
5V
Adjustable Output Voltage Range
5V±10%
Output Rated Current
0~40A
Output Ripple and Noise (Vp-p)
150mV
80mV
120mV
Boot Time
≦2S
50ms
≦2S
Output Overvoltage Protection
No
115%~150%
No
Output Overcurrent Protection
50~60A
48~54A
Output Short Circuit Protection
Have
Working Temperature
-10~50℃
-30~60℃
Storage Temperature
-20~85℃
-35~85℃
Cooling Method
Free air cooling convection
Dielectric Strength
Input to output 3000VAC/1min/2.0mA
Input to output 3000VAC/1min/1.0mA
Input to output 1500VAC/1min/1.0mA
Input to FG 1500VAC/1min/2.5mA
Input to FG 1500VAC/1min/1.0mA
Input to FG 1500VAC/1min/1.0mA
Output to FG 500VAC/1min/2.0mA
Leakage Current
≦0.75mA
MTBF
≥50000 hours
Safety / EMC Standards
Design refer to GB4943,EN60950
Design refer to GB4943,EN60950 / Design refer to GB9254,EN55022 class A
