Triple-color WIFI Card

Triple-color WIFI Card #TWC

Price:US$ 12.²⁵

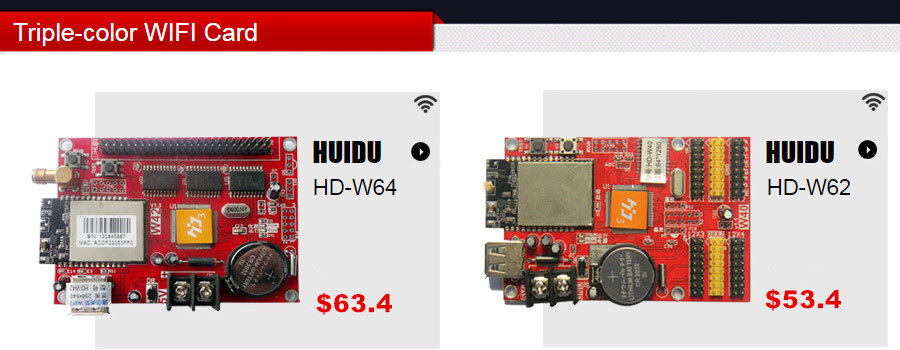

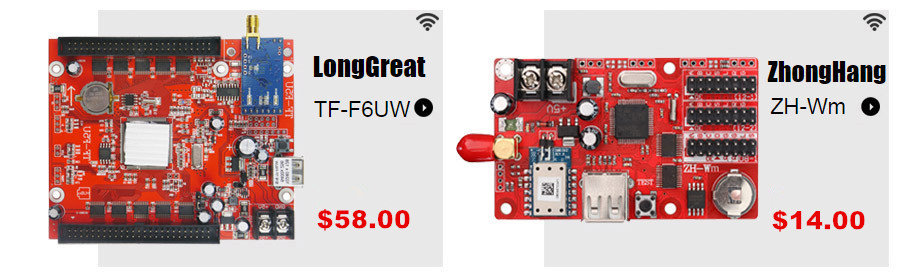

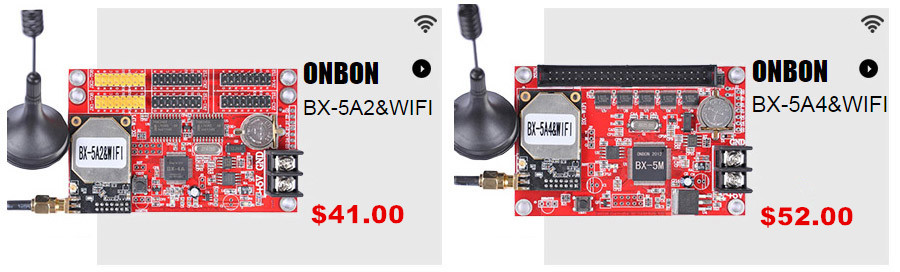

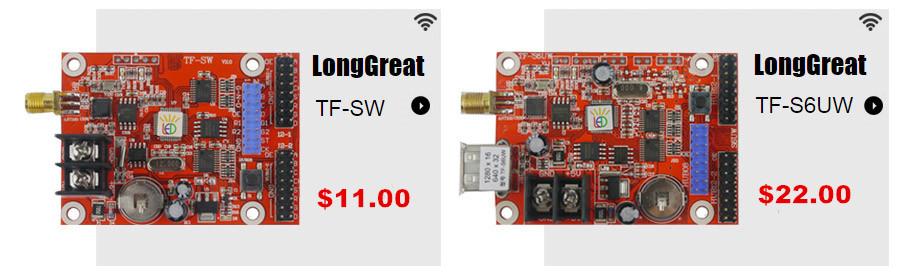

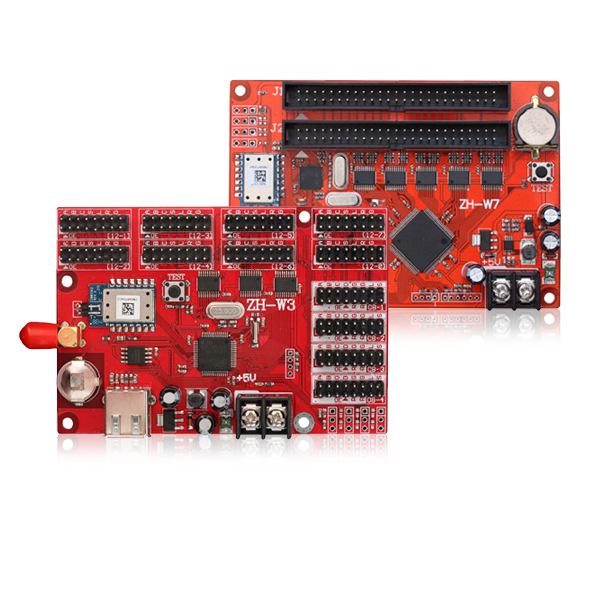

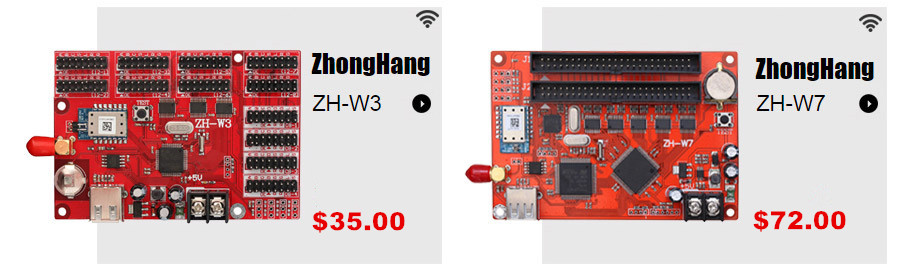

Model No:: HUIDU-HD-W64 HUIDU-HD-W62 LongGreat-TF-SW LongGreat-TF-S6UW LongGreat-TF-F6UW ZhongHang-ZH-Wm ZhongHang-ZH-W3 ZhongHang-ZH-W7 BX-5A2&WIFI BX-5A4&WIFI

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

led display receiving cards sending card

receiving card sending card control card of led display

Have you found out the suitable led card for your project? More advises of purchasing led sending card please contact our online service! Enjoy your shopping moment!

Model Number	HD-W64	HD-W62	TF-SW	TF-S6UW	TF-F6UW	ZH-Wm	ZH-W3	ZH-W7	BX-5A2&WIFI	BX-5A4&WIFI
Brand	HUIDU	HUIDU	LongGreat	LongGreat	LongGreat	ZhongHang	ZhongHang	ZhongHang	ONBON	ONBON
Operating System	Windows2000、NT、XP、Vista、Win7		Windows2000、NT、XP、Vista、Win7、Android	Windows2000、NT、XP、Vista、Win7		Windows2000、NT、XP、Vista、Win7、Android
Control Range	Single Color:256×416、128×832、48×2048；Triple Color:256×208、128×416、64×832	Single Color:64×1280、32×2048；Triple Color:64×640、32×1280	Single Color:832×16、416×32；Triple Color:416×16、192×32	Single Color:1536×32、768×64；Triple Color:768×32、384×64	Single Color:2048×64、1024×128；Triple Color:1024×64、512×128	Single Color:32×512、16×1024	Single Color:96×680、128×512	Single Color:256×2048、512×1024	Single Color：3200×32,2112×48,1600×64;Triple Color：1600×32,1056×48,800×64	Single Color：3200×32,2720×48,2048×64; Triple Color：3200×16,2048×32
Onboard Interface	Need HUB board	Four 12 interfaces,two 08 interfaces	Two 12 interfaces,one 08 interface	Six 12 interfaces,two 08 interfaces	Eight 12 interfaces,four 08 interfaces	Two 12 interfaces,one 08 interface	Eight 12 interfaces,four 08 interfaces	Need HUB board	Two 08 interfaces,four 12 interfaces	Need HUB board
Drive Mode	Static、1/2、1/4、1/8、1/16 Scan		1/16、1/8、1/4、1/2、Static			1/4、1/8、1/16 Scan			1/4、1/8、1/16 Scan
Communication Interface	USB、WIFI		WIFI wireless communications, supports stand-alone, LAN connection	WIFI wireless communications, supports stand-alone, LAN connection		WIFI、USB			WIFI
Communication Distance	＜50m		Support mobile client sends the program and set the parameters, WIFI control＜50m	WIFI control＜50m		WIFI﹤100m			WIFI<50m
Display Color	Triple Color (Red、Green、Yellow)		Triple Color (Red、Green、Yellow)			Triple Color (Red、Green、Yellow)			Triple Color (Red、Green、Yellow)
Number of Programs	200, support key to switch		200			32			128
The Number of Regions	4, independent partitions, independent effects, independent border		16, independent partitions, independent effects, independent border			4, independent partitions, independent effects, independent border			8 regions	24 regions
Display Content	Text, pictures, time, temperature (requires external module), timing, animation word		Text, images, animation, countdown,timing, the clock does not support the temperature, humidity and brightness module	Text, images, animation, countdown,timingg, temperature (requires external module), humidity, clock		Teletext, subtitles, digital time, analog dial, animation			Text, pictures, time, temperature (requires external module), timing, animation word
Storage Capacity	2MB		2MB			16MB			2MB
Display Method	Sequential display, key switch		Support turn playback, timed long play, support segment by date, time, week broadcast regularly			Order, couplet word display, timed play, divided time segment play, locking a single broadcast			Support turn playback, timed long play, support segment by date, time, week broadcast regularly
Screen Switch	Support machine timer switch		It supports four time periods timer switch screen			Software-enforced switch and timer switch machine			Support
Dimming	Support		Support			Support			Support
Working Voltage	4.2～5.5V		4.5～6V			4.6V～6V			4.6V～6V
Working Temperature	-40℃～75℃		-30℃～70℃			-30℃～70℃			-30℃～70℃
Humidity	15%～85%		15%～85%			15%～85%			15%～85%
Power Consumption	≤0.5W		≤3W			≤3W			≤3W
Language	Chinese，Traditional Chinese，English，French，German，Japanese，Korean，Thai，Portuguese，Russian，Spanish，Turkish，Vietnamese language，Mongolian，Bulgarian，Persian，Polish		Chinese，Traditional Chinese，English，French，German，Japanese，Portuguese，Spanish，Turkish，Arabic，Persian，Mongolian，Thai.			Chinese，Traditional Chinese，English，French，Japanese，Portuguese，Spanish，Turkish，Arabic，Russian			English, Simplified Chinese, Traditional Chinese, Korean, Japanese, French, Russian, Thai, Arabic, German, Spanish, Kazakh, Portuguese, Vietnamese, Croatian, Turkish, Hebrew, Persian, Romania , Bulgarian, Polish
Supporting Software	HD2014		PowerLed, PowerLed Mobile version	PowerLed		Led Control system V3 ZH_Android_V3.03.11			LedshowTW2015
Certificate	CE,ROHS,FCC,ISO9001，TUV
