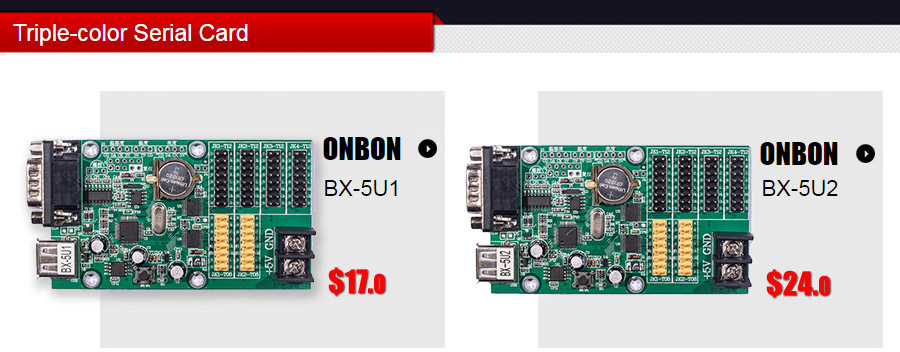

Triple-color Serial Card

Triple-color Serial Card #TSC

Price:US$ 15.⁹⁰

Model No:: LongGreat-TF-M6NUR LongGreat-TF-C6NUR ZhongHang-ZH-E1 ZhongHang-ZH-E5 ZhongHang-ZH-E8 HUIDU-HD-E65 ONBON-BX-5U1 ONBON-BX-5U2 ONBON-BX-5E1 ONBON-BX-5E2 ONBON-BX-5E3

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

led display receiving cards sending card

receiving card sending card control card of led display

Have you found out the suitable led card for your project? More advises of purchasing led sending card please contact our online service! Enjoy your shopping moment!

Model Number	HD-E65	TF-M6NUR	TF-C6NUR	ZH-E1	ZH-E5	ZH-E8	BX-5U1	BX-5U2	BX-5E1	BX-5E2	BX-5E3
Operating System	Windows2000、NT、XP、Vista、Win7
Control Range	Single Color:512×2048, 256×4096；Triple Color:512×1024, 128×4096, 64×8192	Single Color:1536×32, 768×64；Triple Color:768×32, 384×64	Single Color:2048×64, 1024×128；Triple Color:1024×64, 512×128	Single Color:32×800, 48×512	Single Color:256×640, 128×1280, 96×1704	Single Color:256×4096, 512×2048, 480×2184	Single Color：3200×16, 2048×32, 1344×48, 1024×64; Triple Color：1600×16, 1024×32, 672×48, 512×64	Single Color：3200×32, 2112×48, 1600×64；Triple Color：1600×32, 1056×48, 800×64	Single-triple Color：2048×128, 1344×192, 1024×256	Single-triple Color：4096×128, 2048×256	Single-triple Color：8192×128, 4096×256, 2048×512
Onboard Interface	Need HUB board	Four 12 interfaces,two 08 interface	Eight 12 interfaces,four 08 interface	Three 12 interfaces,one 08 interface	Need HUB board	Need HUB board	Two 08 interfaces，four 12 interfaces		Need HUB board
Drive Mode	Static、1/2、1/3、1/4、1/5、1/6、1/8、1/16 Scan	1/16、1/8、1/4、1/2、Static		1/4、1/8、1/16 Scan			1/16、1/8、1/4、1/2、Static
Communication Interface	USB、RS232、RJ45	USB, RS232, RJ45, which can be accessed wireless router, IP automatic acquisition, control card default IP: 192.168.1.252		RJ45、USB、RS232	RJ45、USB、RS232	RJ45、USB、RS232	USB、RS232		RJ45、USB、RS232
Communication Distance	HSYV-5E﹤140m	HSYV-5E﹤140m、not support the RF wireless communication		HSYV-5E﹤140m,automatically assigns IP			Unlimited		HSYV-5E﹤100m
Display Color	Triple Color (Red、Green、Yellow)	Triple Color (Red、Green、Yellow)		Triple Color (Red、Green、Yellow)			Triple Color (Red、Green、Yellow)
Number of Programs	200, support key to switch	200		32			128		512
The Number of Regions	8, independent partitions, independent effects, independent border	16, independent partitions, independent effects, independent border		4, independent partitions, independent effects, independent border			8 regions		32 regions
Display Content	Text, pictures, time, temperature (requires external module), timing, animation word	Text, images, animation, countdown,timing, temperature (requires external module), humidity, clock		Teletext, subtitles, digital time, analog dial, animation			Teletext, subtitles, digital time, analog dial, animation
Storage Capacity	8MB	2MB		16MB	16MB	32MB	2MB		4M
Display Method	Sequential display, key switch	Support turn playback, timed long play, support segment by date, time, week broadcast regularly		Order, couplet word display, timed play, divided time segment play, locking a single broadcast			Order, couplet word display, timed play, divided time segment play, locking a single broadcast
Screen Switch	Support machine timer switch	It supports four time periods timer switch screen		Software-enforced switch and timer switch machine			Support machine timer switch
Dimming	Support
Working Voltage	4.2～5.5V	4.5～6V		3.2～5.5V			3.5V～6.5V
Working Temperature	-40℃～75℃	-30℃～70℃		-30℃～70℃			-40℃～80℃
Humidity	15%～85%
Power Consumption	≤0.5W	≤1.5W	≤1.5W	≤0.5W			≤2W		≤2.5W
Language	Chinese，Traditional Chinese，English，French，German，Japanese，Korean，Thai，Portuguese，Russian，Spanish，Turkish，Vietnamese language，Mongolian，Bulgarian，Persian，Polish	Chinese，Traditional Chinese，English，French，German，Japanese，Portuguese，Spanish，Turkish，Arabic，Persian，Mongolian，Thai.		Chinese，Traditional Chinese，English，French，Japanese，Portuguese，Spanish，Turkish，Arabic，Russian			English, Simplified Chinese, Traditional Chinese, Korean, Japanese, French, Russian, Thai, Arabic, German, Spanish, Kazakh, Portuguese, Vietnamese, Croatian, Turkish, Hebrew, Persian, Romania , Bulgarian, Polish
Supporting Software	HD2014	PowerLed		Led Control system V3			LedshowTW2015
Certificate	CE,ROHS,FCC,ISO9001，TUV
