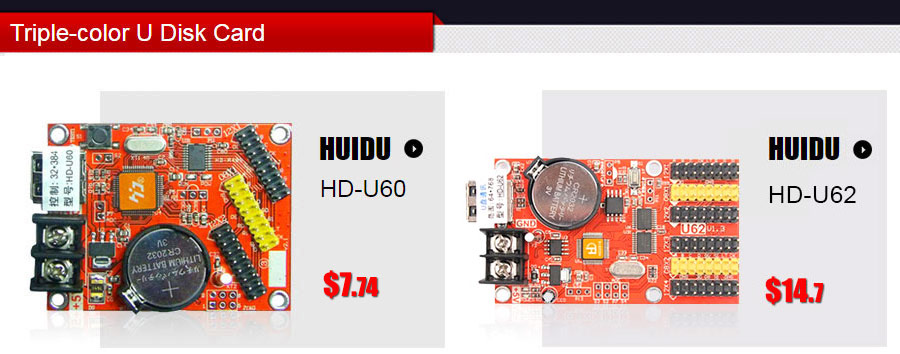

Triple-color U Disk Card

Triple-color U Disk Card #HUIDU-TUC

Price:US$ 2.⁵⁰

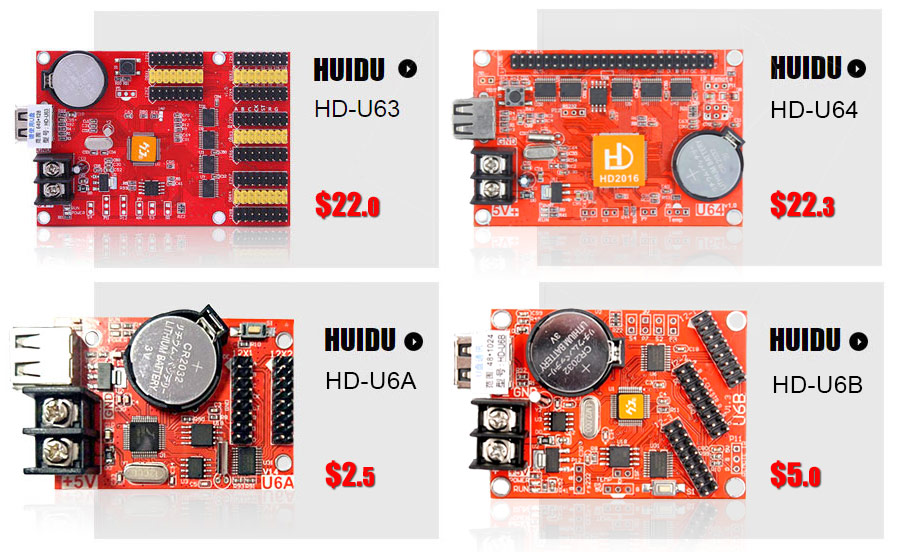

Model No:: HUIDU-HD-U6B HUIDU-HD-U64 HUIDU-U62 HUIDU-U6A HUIDU-HD-U60 HUIDU-HD-U63

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

led display receiving cards sending card

receiving card sending card control card of led display

Have you found out the suitable led card for your project? More advises of purchasing led sending card please contact our online service! Enjoy your shopping moment!

Model Number	HD-U60	HD-U6A	HD-U6B	HD-U62	HD-U63	HD-U64
Operating System	Windows2000, NT, XP, Vista, Win7
Control Range	Single Color:32×384, 16×768;Triple Color:32×192, 16×384	Single Color:32×320;Triple Color:16×320	Single Color:64×768;Triple Color:32×768	Single Color:64×256, 16×1024;Triple Color:32×128, 16×512	Single Color:128×640, 64×1280, 32×2048;Triple Color:128×320, 64×640, 32×1280	Single Color:512×256, 32×3072;Triple Color:256×256, 16×1536
Onboard Interface	Two 12 interfaces,one 08 interface	Two 12 interfaces	Three12 interfaces	Four 12 interfaces,two 08 interface	Eight 12 interfaces,four 08 interfaces	Need HUB board
Drive Mode	Static, 1/2, 1/3, 1/4, 1/6, 1/8, 1/16 Scan
Communication Interface	USB		USB		USB	USB
Display Color	Triple Color (Red, Green, Yellow)
Number of Programs	200, support key to switch
The Number of Regions	4, independent partitions, independent effects, independent border				8, independent partitions, independent effects, independent border
Display Content	Text, pictures, time, temperature (requires external module), timing, animation word
Storage Capacity	2MB
Display Method	Sequential display, key switch
Screen Switch	Support machine timer switch
Dimming	Support
Working Voltage	4.2～5.5V
Working Temperature	-40℃～75℃
Humidity	15%～85%
Power Consumption	≤0.5W
Language	Chinese, Traditional Chinese, English, French, German, Japanese, Korean, Thai, Portuguese, Russian, Spanish, Turkish, Vietnamese language, Mongolian, Bulgarian, Persian, Polish
Supporting Software	HD2014
Certificate	CE,ROHS,FCC,ISO9001, TUV
