Triple-color Network Interface Card

Triple-color Network Interface Card #TNC

Price:US$ 85.⁰⁰

Model No:: LongGreat-TF-MN ONBON-BX-6E3 ONBON-BX-6E2 ONBON-BX-6E1 ONBON-BX-5M4 ONBON-BX-5M2 ONBON-BX-5M1 HUIDU-HD-E62 HUIDU-HD-E63

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

led display receiving cards sending card

receiving card sending card control card of led display

Have you found out the suitable led card for your project? More advises of purchasing led sending card please contact our online service! Enjoy your shopping moment!

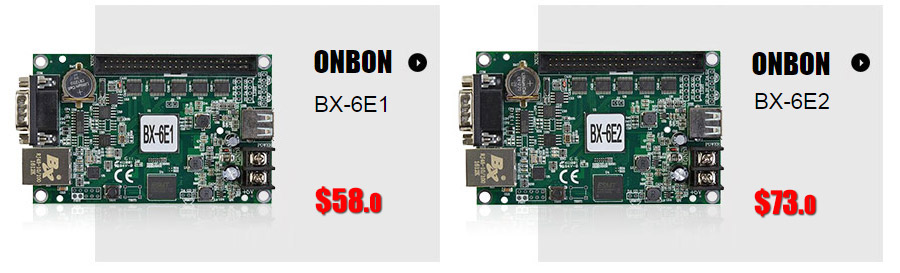

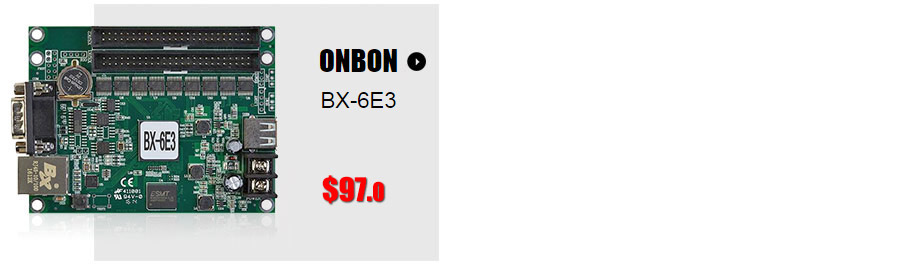

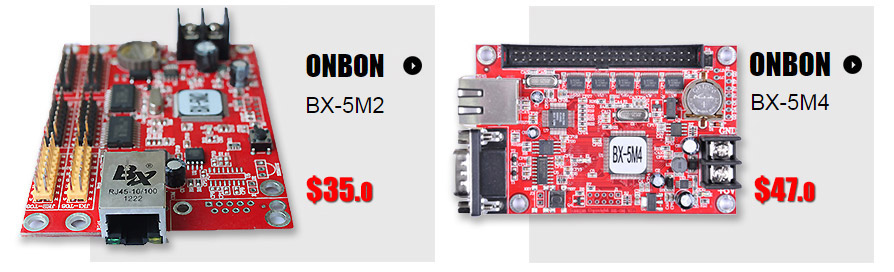

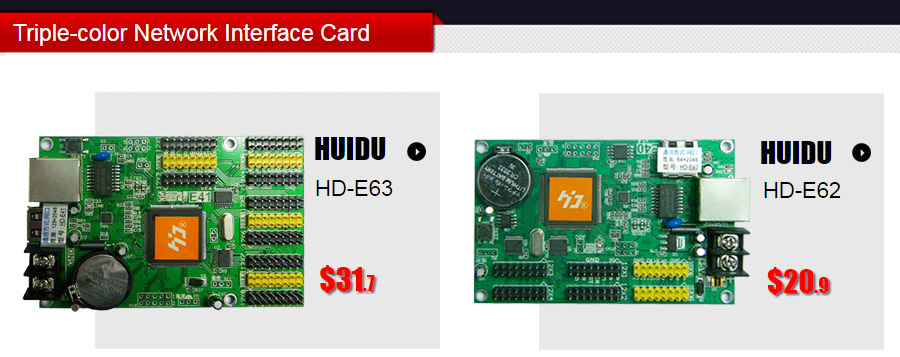

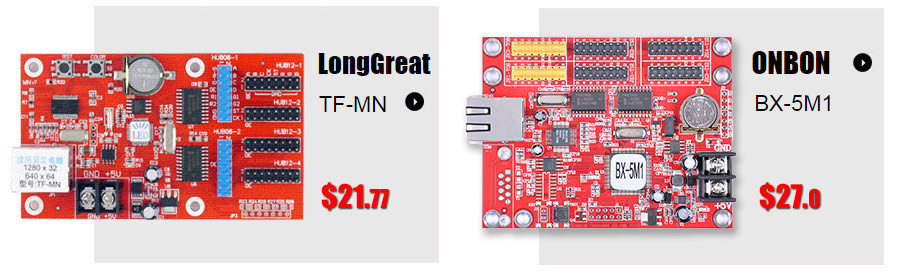

Model Number	HD-E63	HD-E62	TF-MN	BX-5M1	BX-5M2	BX-5M4	BX-6E1	BX-6E2	BX-6E3
Brand	HUIDU	HUIDU	LongGreat	ONBON	ONBON	ONBON	ONBON	ONBON	ONBON
Operating System	Windows2000、NT、XP、Vista、Win7
Control Range	Single Color:128×2048；Triple Color:128×1024, 64×2048	Single Color:64×2048；Triple Color:64×1024, 32×2048	Single Color:1280×32, 640×64；Triple Color:640×32, 320×64	Single Color：2048×16, 1024×32, 672×48, 512×64；Triple Color：1024×16, 512×32, 336×48, 256×64	Single Color：3200×16, 3200×32, 2688×48, 2048×64；Triple Color：3200×16, 2048×32, 1344×48, 1024×64	Single Color：3200×16, 3200×32, 2720×48, 2048×64, 1632×80, 1344×96, 1152×112, 1024×128, 896×144, 800×160, 736×176, 672×192, 608×208, 576×224, 544×240, 512×256；Triple Color：3200×16, 2048×32, 1360×48, 1024×64, 816×80, 672×96, 576×112, 512×128, 448×144, 400*160, 368×176, 336×192, 304×208, 288×224, 272×240, 256×256	Single Color：2048×256, 1344×192；Triple Color： 2048×128, 1344×192	Single Color：4096×256, 2720×384；Triple Color： 4096×128, 2720×192	Single Color：8192×512, 5044×768；Triple Color： 8192×256, 5440×384
Onboard Interface	Eight 12 interfaces,four 08 interfaces	Four 12 interfaces,two 08 interfaces	Four 12 interfaces,two 08 interface	Two 08 interface, four 12 interfaces		Need an adapter plate
Drive Mode	Static、1/2、1/4、1/8、1/16 Scan	Static、1/2、1/4、1/8、1/16 Scan	1/16、1/8、1/4、1/2、Static	1/16、1/8、1/4、1/2、Static
Communication Interface	USB、RJ45	USB、RJ45	RJ45, can be accessed by a wireless router, IP automatic acquisition, control card default IP: 192.168.1.252	USB、RJ45
Communication Distance	HSYV-5E﹤140m		HSYV-5E﹤140m	HSYV-5E﹤100m
Display Color	Triple Color (Red、Green、Yellow)		Triple Color (Red、Green、Yellow)	Triple Color (Red、Green、Yellow)
Number of Programs	200, support key to switch		200	128
The Number of Regions	8, independent partitions, independent effects, independent border		16, independent partitions, independent effects, independent border	24 regions
Display Content	Text, pictures, time, temperature (requires external module), timing, animation word		Text, images, animation, countdown,timing, temperature (requires external module), humidity, clock	Text, images, animation, countdown,timing, temperature (requires external module), humidity, clock
Storage Capacity	2MB
Display Method	Sequential display, key switch		Support turn playback, timed long play, support segment by date, time, week broadcast regularly	Support turn playback, timed long play, support segment by date, time, week broadcast regularly
Screen Switch	Support machine timer switch		It supports four time periods timer switch screen	Support machine timer switch
Dimming	Support
Working Voltage	4.2～5.5V		4.5～6V	3.5V-6.5V
Working Temperature	-40℃～75℃		-30℃～70℃	-40℃～80℃
Humidity	15%～85%
Power Consumption	≤0.5W		≤2W	≤2W
Language	Chinese，Traditional Chinese，English，French，German，Japanese，Korean，Thai，Portuguese，Russian，Spanish，Turkish，Vietnamese language，Mongolian，Bulgarian，Persian，Polish		Chinese，Traditional Chinese，English，French，German，Japanese，Portuguese，Spanish，Turkish，Arabic，Persian，Mongolian，Thai	English, Simplified Chinese, Traditional Chinese, Korean, Japanese, French, Russian, Thai, Arabic, German, Spanish, Kazakh, Portuguese, Vietnamese, Croatian, Turkish, Hebrew, Persian, Romania , Bulgarian, Polish
Supporting Software	HD2014		PowerLed	LedshowTW2015
Certificate	CE,ROHS,FCC,ISO9001，TUV
