PH16 Traffic Guiding LED Display

PH16 Traffic Guiding LED Display 1024×1024mm #T16

Price:US$ 1968.⁰⁰

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

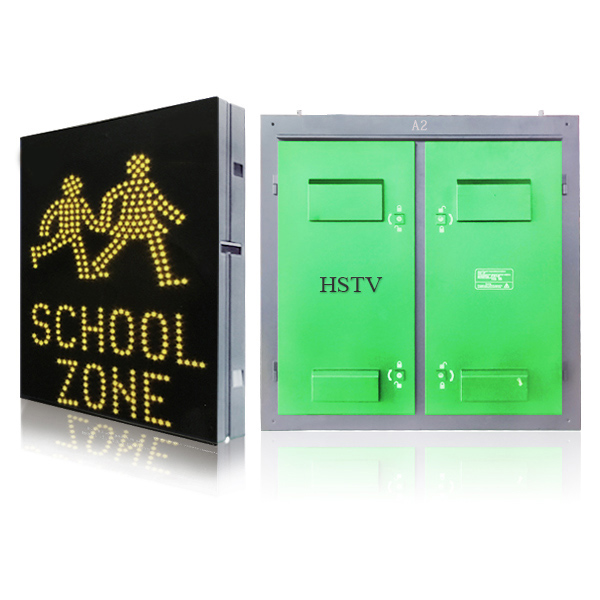

PH16 Outdoor Triple Color Traffic Guiding LED Display High refresh rate and high brightness make it perform well in harsh outdoor environment.

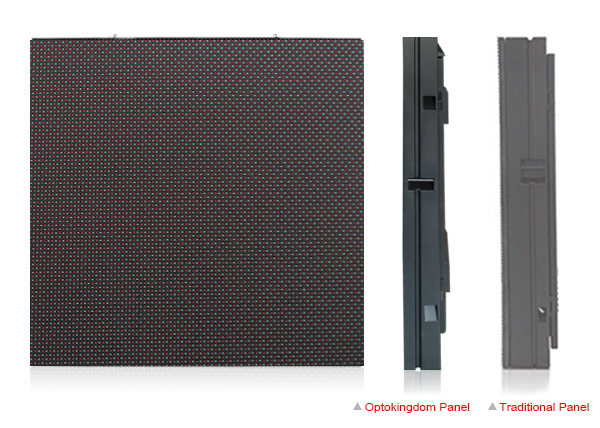

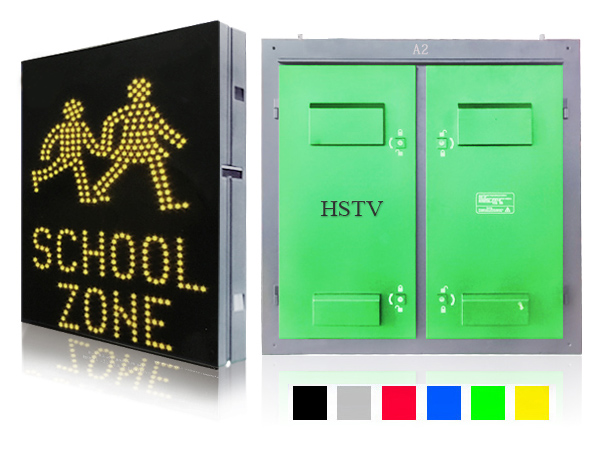

			Unique Design - Easy to Install & Transport The cabinet of LED Display features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It's damage free and lasts for a lifetime. Pick out from different standard colors of cabinets.
Careful Product Installation Each and every single part of the display is watchfully installed by our engineers. Also, great care is taken in material selection and product assembling. This ensure the ultimate product you get are better than your expectations.

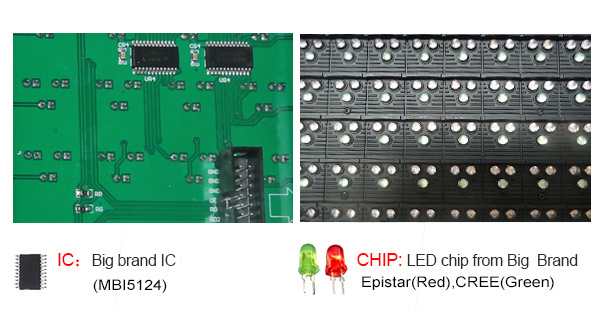

			High refresh rate, high brightness Adopt big brand components(MBI drive IC, Epistar and CREE LED) to production which ensure high refresh over 2000Hz and brightness over 8000cd/m. The display content can be seen very clearly even beyond 100 meters in direct sunlight condition.

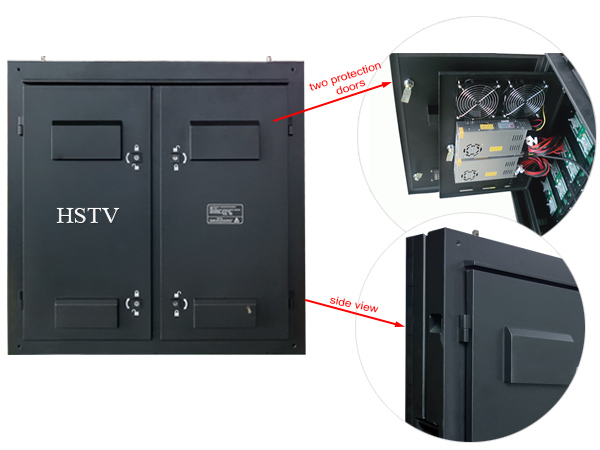

Two protection doors design Over IP66 protection rate ensure led display run well in all kinds of severe environment.

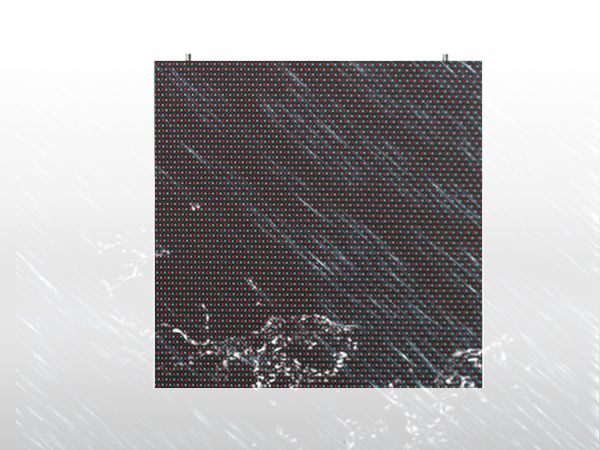

			High IP Rating IP66 - Safe and Reliable The special waterproof design of LED Display protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating IP66 ensures great quality outputs in every condition.

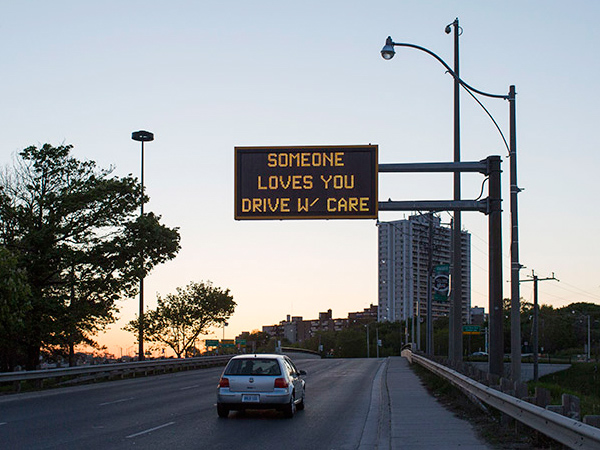

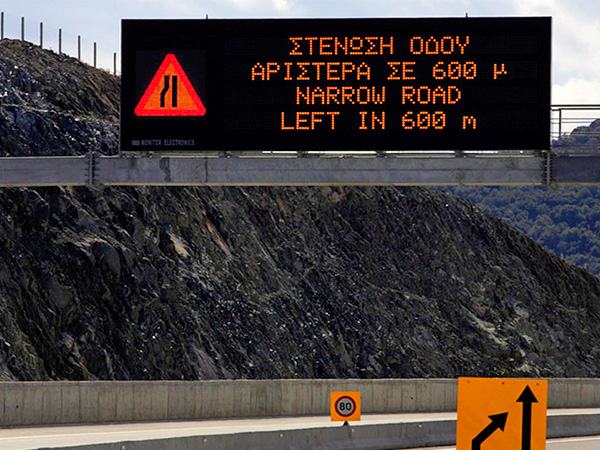

Application Our traffic guiding led display run very stable in different weather condition.



			Our Company Building Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
			Best After-sale Service If your LED Display is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
Fastest Delivery and Best Online Services OptoKingdom provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	DIP510
Brand	Epistar(Red),CREE(Green)
Arrangement	2R1G
Chip parameters	Red (620-625nm) IV:(2500-3000mcd)
Chip parameters	Green (520-525nm) IV:(3500-4000mcd)
LED Module
Pixel Pitch	16mm
Module Size(WHD)	256×128mm
Module Resolution	16×8=128(Dots)
Module Weight	0.5kg
LED Cabinet
Pixel Density	3906 Dots/sqm
Cabinet Dimension(WHD)	1024×1024×200mm
Cabinet Resolution	64×64=4096(Dots)
Module Quanty /Cabinet	4×8=32(Pcs)
Cabinets Material	Steel
Cabinet Weight	48kg/PCS
Brightness	7500cd/sqm
Viewing Angle	70(Horizontal), 35(Vertical)
Power Consumption (Max)	600 w/sqm
Power Consumption (Average)	180 w/sqm
Drive Mode/Driver Position	Static Combined driver board
Display Function	Text, Graphics
Frame Frequency	no less than 60 frame/sec
Input Voltage	AC220V±15%, 50/60Hz
Output Voltage	DC-5V, 40A/60A/80A
Color Grayscale	8bit
Gray Scale per Color	256 level
Color Processing	2R(256)×G(256)
Color Display	Red, Green, Yellow
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
MTBF( mean time between failures)	>100, 000 hours
Life-span	>600, 000 hours
Continuous Use of Time	>24 hours
Screen Flatness	Full screen: less than 1mm
Protection Level	IP66
Protective Performance	Moisture, corrosion, mildew, anti-electromagnetic jamming, fire, dust-proof and waterproof
Malfunction Dot Rate	less than 0.0001
Storage Temperature	-35^oC~85^oC
Working Temperature	-30^oC~60^oC
Humidity	15%~85%
Thermal Discharge	Fan Pcs
Environment	Outdoor
Heat Dissipation	Screen size >30sqm / Temperature >40^oC, need matched air conditioner cooling. only for Outdoor Normal Led Display
Control System
Control Method	Asynchronization
Control System	Sending Card, Receiving Card, Receiving HUB
Software	HD2014(HSTV-HUIDU)
Language	Chinese, Traditional Chinese, English, French, German, Japanese, Korean, Thai, Portuguese, Russian, Spanish, Turkish, Vietnamese language, Mongolian, Bulgarian, Persian, Polish
Input Signal	AVI/MPG/MPEG/TXT.etc
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Interface	RS232, RS485, Ethernet, GPRS, 3G
Certificate	CE, ROHS, FCC, ISO9001, TUV
