PH13.33 Outdoor DIP 3 in 1 LED display screen 960×960mm #OFDC13.3

Price:US$ 595.⁰⁰

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

PH13.33 DIP Outdoor Advertising LED Screen Certainly the best option for outdoor advertising, this rental LED display carries some features that make it highly suitable for outdoor areas. Can work in different brightness level and outdoor circumstances. Can be used at stage, bank, promotion, exhibition, highway, station, KTV, stadium, airport and other outdoor places.

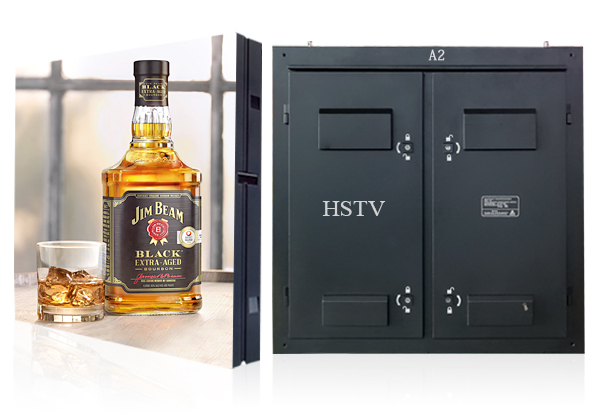

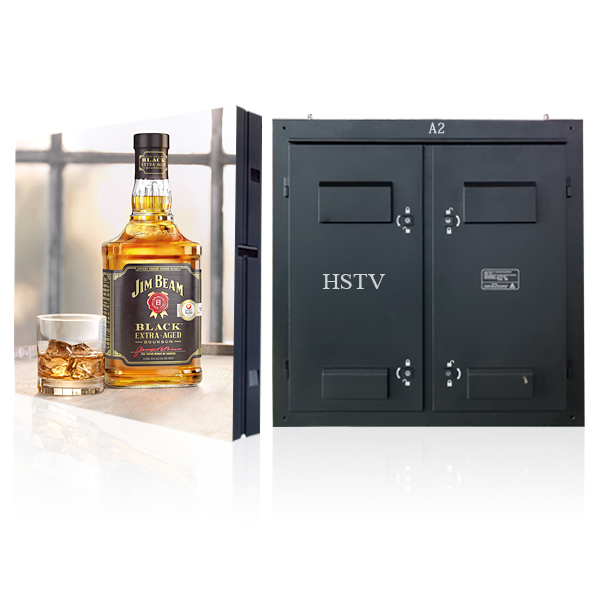

			Standard Cabinet Dimensions The ultra-lightweight cabinet made is aluminum alloy which gives it extra strength. The cabinet of Advertising LED Screen is designed with perfection, making it really easy to install. Also, the quick-lock feature requires no technical skills to install and uninstall.

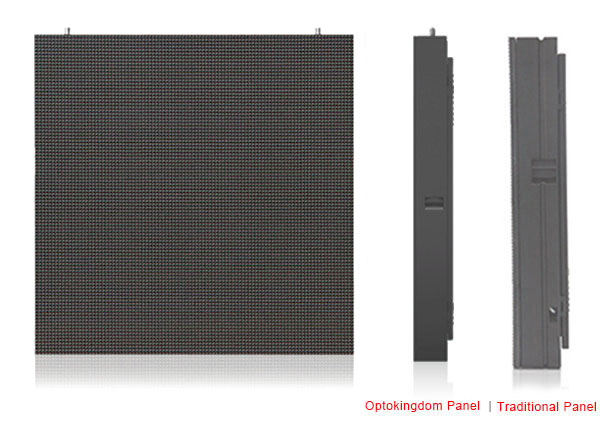

Light and convenient handle Thinner and lighter than the traditional cabinet, over 20% lighter than other supplier..
			High Brightness, Better Quality Installing at outdoor places require the displays to produce high brightness outputs. The high brightness and high definition features of the Advertising LED Screen ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.
Fast and easy install Accurate, fast, flexible positioning installation, can effectively deal with different installation environment.
			Featured quality materials High-quality raw materials, mature technology, large-scale production ensure stable and reliable quality.
Adapt to a variety of complex environments High protection level and special material feature IP66 protection rate ensure work well in any heavy weather.

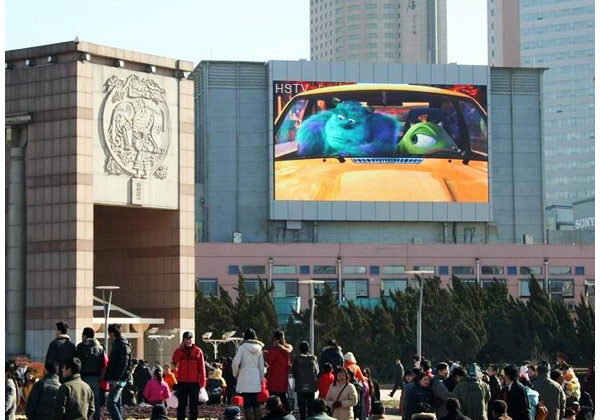

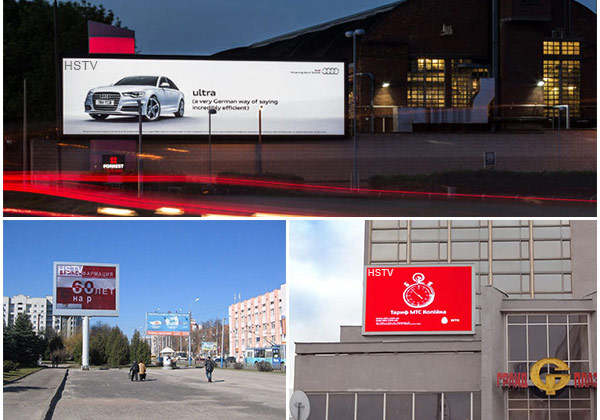

			Application The Advertising LED Screen can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration, video displays, educational purposes and much more. You may use it at outdoor areas like highways, streets, malls, stages, stadium and at many more outdoor places.



Our Company Building Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality product that have passed certifications like CE, FCC, RoSH and SGS and many more.
			Best Quality Guaranteed Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
Fastest Delivery and Best Online Services OptoKingdom provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.
			Best After sale service If your Advertising LED Screen is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	DIP(3 in 1)570
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(2100-2200mcd)
Chip parameters	Green (520-525nm) IV:(4200-4300mcd)
Chip parameters	Blue (470-475nm) IV:(700-750mcd)
LED Module
Pixel Pitch	13.33mm
Module Size	320×160mm
Module Resolution	24×12=288(Dots)
Module Weight	0.8kg
LED Cabinet
Pixel Density	10000Dots/sqm
Frame Frequency	no less than 60 frame/sec
Cabinet Resolution	72×72=5184(Dots)
Input Voltage	AC110-220V±10%, 50/60Hz
Cabinet Dimension(WHD)	960×960×185mm
Output Voltage	DC-5V, 40A/60A/80A
Module Quanty /Cabinet	3×6=18(Pcs)
Color Grayscale	16bit
Gray Scale per Color	65536 level
Cabinets Material	Steel
Color Processing	R(1024)×G(1024)×B(1024)
Cabinet Weight	43kg/PCS
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
Brightness	>6500cd/sqm
MTBF( mean time between failures)	5000 hours
Viewing Angle	120(Horizontal), 120(Vertical)
Life-span	100, 000 hours
Nearest Viewing Distance	11m
Protection Level(front/back)	IP66/IP54
Power Consumption (Max)	800 w/sqm
Malfunction Dot Rate	less than 0.0001
Power Consumption (Average)	300 w/sqm
Working Temperature	-20^oC~55^oC
Display Function	Text, Graphics, Video
Humidity	15%~85%
Refresh Rate	>1920Hz
Drive Mode/Driver Position	Constant driving 1/4 Scan,Combined diver board
Heat Dissipation	Screen size >30sqm / Temperature >40^oC, need matched air conditioner cooling. only for Outdoor Normal Led Display
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card, Receiving HUB
PC Operating System	Microsoft Windows 10 , Windows 7 and XP
Software	LED Studio(HSTV-linsn)
Communication Type	Net cable; 4G, WIFI(Sold separately)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate	CE, ROHS, FCC, ISO9001, TUV
Control Card Input	DVI, USB; RJ45, HDMI(Sold separately)
