Name: PH12 Outdoor Full Color Module 192×192mm
Brand: HS
Price: 25.47 USD
Availability: InStock
Rating: 0 (0 reviews)

PH12 Outdoor Full Color Module 192×192mm #OFDM12

Price:US$ 25.⁴⁷

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

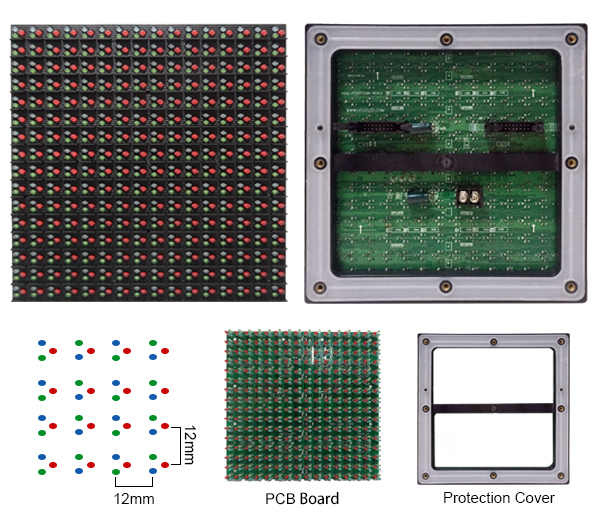

PH12 full color outdoor led display module Pixel pitch: 12mm Brightness: over 6000cd/㎡ Refresh rate: over 1000Hz Drive mode: 1/4 scan

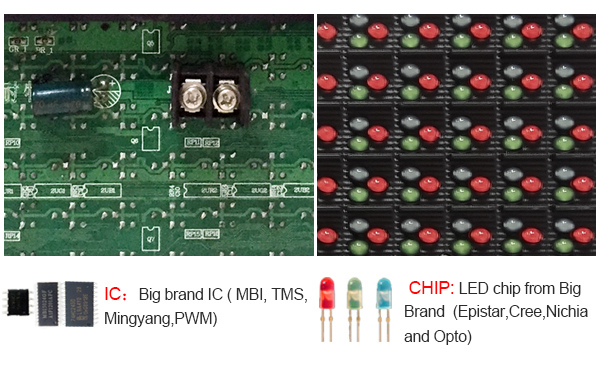

			Big brand supplier is the best warranty MBI, TMS, PWM and Mingyang supply high quality IC to us. LED chip is provided by Epistar, Cree, Nichia and Opto.big brand is worth to trust.
High-performing components with a lowest price All components are tested by our technicians, using without worrying. We only provide high-quality product.

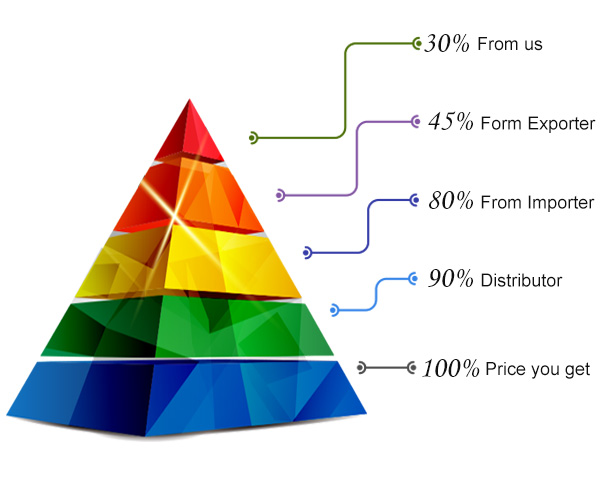

			The lowest price of the same product In the past, ordinary people buy in shopping mall with a highest price, shopkeeper buy from distributor save 10%. big companies purchase by importer or exporter. Today! You can purchase from us with a lowest price and quick delivery.

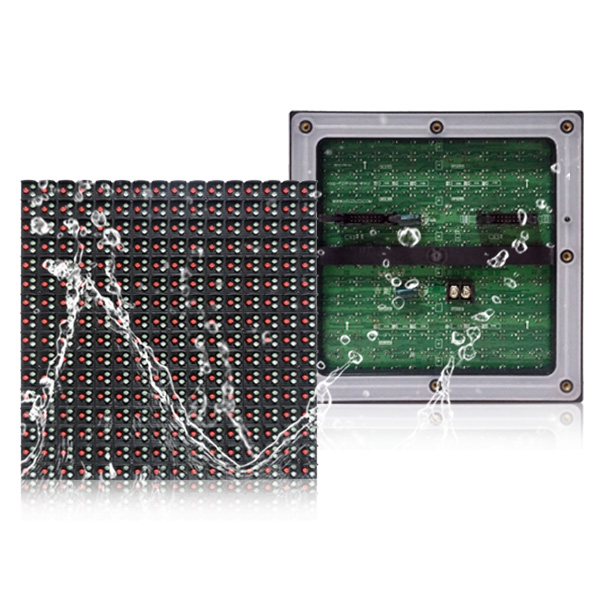

IP65 waterproof let water become "cleaner" not "destroyer" of product Every single led screen module adopt mechanical precision sealant technology to guarantee the quality of module. Front IP65 waterproof protect module better. Suitable for outdoor use.
			High brightness fits the needs in different circumstance Every outdoor led module is well-designed by our engineer. Over 6500cd/㎡ brightness even under high ambient light conditions.
Big brand power supplier and special design, save more energy for you High-tech transformer can change AC-220/110V input voltage into DC-5V output voltage guarantee low power consumption, saving energy and friendly to environment.

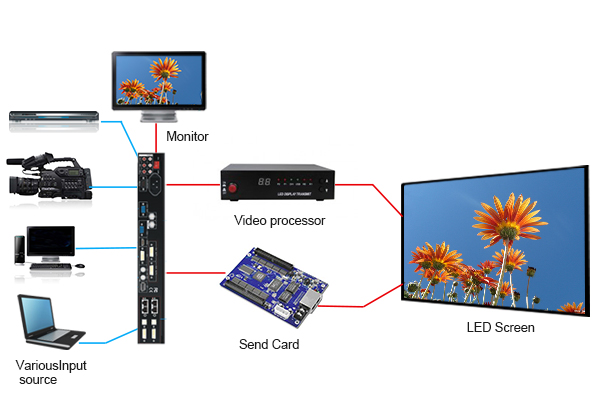

			Standard control process make perfect performance, various input sources convenient your operation You can use laptop, desktop computer camera etc to play content on led screen. Monitor helps you receive synchronous message on the screen, everything is under your control.

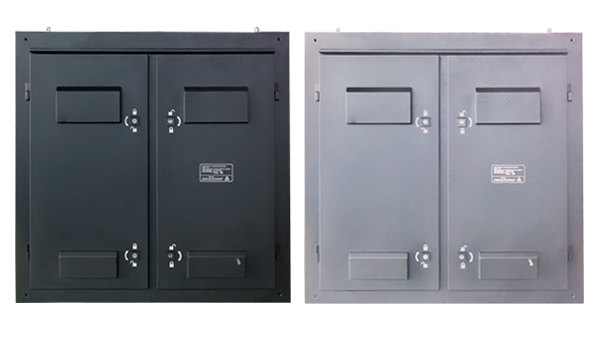

Exclusive cabinet design match with module We provide durable cabinet to protect module out of damage. rear serviceability within a minute.

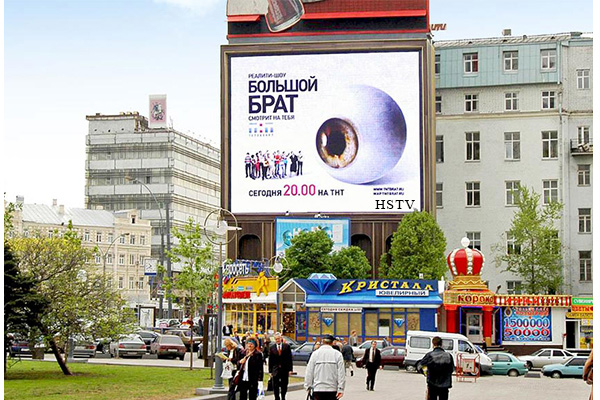

			Ultra HD image benefit from pixel pitch 12mm module PH12 module ensure perfect performance. High resolution create a visual feast. High brightness shine your world. Suitable for stage, bank, promotion, exhibition, highway, station, KTV, stadium, airport and all outdoor places.
Factory real shot Focus in every single detail of product. Keep improving the quality.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

Your Recent History

PH4.75 Indoor Triple Color Module 304×152mm
US$ 17.80

Add to cart
Power Cable Terminal
US$ 7.95

Add to cart
PH10 Outdoor Single Color LED Sign Module 320×1...
US$ 3.18

Add to cart
PH8 DIP Truck LED Screen 1024×1024mm
US$ 775.00

Add to cart
PH2.5 indoor custom round led display 960*960mm
US$ 565.00

Add to cart

Quick Index: A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0-9 Sitemap Mobile Site

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	DIP346
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(1000-1200mcd)
Chip parameters	Green (520-525nm) IV:(2000-2500mcd)
Chip parameters	Blue (470-475nm) IV:(500-650mcd)
LED Module
Pixel Pitch	12mm
Module Size	192×192mm
Module Resolution	16×16=256(Dots)
Module Weight	0.6kg
Module Input Interface	HUB-75
LED Cabinet
Pixel Density	6944 Dots/㎡
Frame Frequency	no less than 60 frame/sec
Brightness	≥5500cd/㎡
Input Voltage	AC110-220V±10%,50/60Hz
Viewing Angle	110(Horizontal),55(Vertical)
Output Voltage	DC-5V,40A/60A/80A
Nearest Viewing Distance	15m
Color Grayscale	16bit
Gray Scale per Color	65536 level
Power Consumption (Max)	600 w/㎡
Color Processing	R(1024)×G(1024)×B(1024)
Power Consumption (Average)	200 w/㎡
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional
Display Function	Text,Graphics,Video
MTBF( mean time between failures)	5000 hours
Refresh Rate	≥1000Hz
Life-span	100,000 hours
Operating Temp/Humidity	-15℃~50℃,15%~85%RH
Protection Level(front/back)	IP65/IP54
Storage Temp/Humidity	-30℃~55℃,15%~85%RH
Malfunction Dot Rate	less than 0.0001
Drive Mode/Driver Position	Constant driving 1/4 Scan，Combined diver board
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc

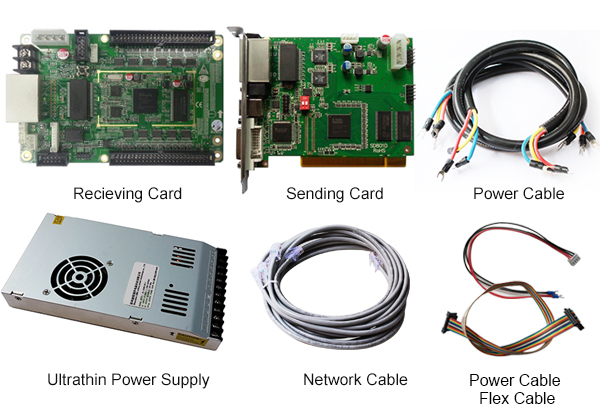

Control System	Sending Card, Receiving Card,Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio ( HSTV-linsn )
Communication Type	Net cable，3G、WIFI（Sold separately)
Language	Chinese、Traditional Chinese、English、French、Japanese、Russian、Thai、Spanish、Polish、Italian、Portuguese、Turkish、Dutch、Greek、Bulgarian、Romanian、Arabic、Korean、German
Certificate	CE,ROHS,FCC,ISO9001，TUV
Control Card Input	DVI,USB,RJ45、HDMI（Sold separately)
