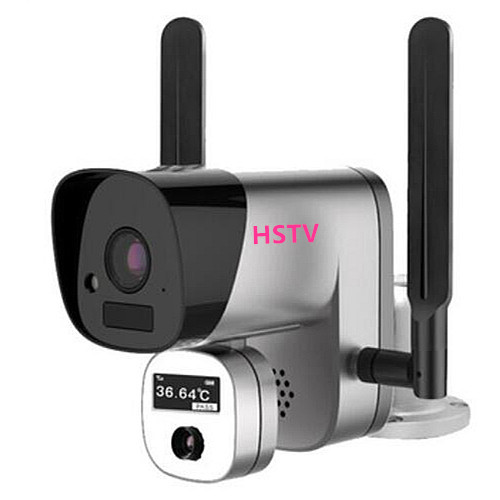

Thermal human body temperature screening smart camera

Thermal human body temperature screening smart camera #HSTV-TB1

Price:US$ 570.⁰⁰

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

led display receiving cards sending card

receiving card sending card control card of led display

Have you found out the suitable led card for your project? More advises of purchasing led sending card please contact our online service! Enjoy your shopping moment!

Model	HSTV-TB1
Thermal LENS	5mm
Temperature Distance	0.2-1.0m
Temperature Accuracy	±0.3^oC
Thermal pixel time constant	< 4ms
Temperature angle	32° left and right, 32° up and down
Temperature measurement range	20 to 45 degrees Celsius（ 68 to 113 degrees Fahrenheit）
Processor	HI3516EV200
Image sensor	2 million effective pixels, 1920 * 1080 CMOS Sensor
Resolution	1080P HD images, resolution up to 1920x1080, 2MP
Frame Rate	1~30fps
Lens/ Visual Angle	3.6mm/100^o
Apply system	Android IOS
Operating system	Linux
Recording Mode	Wholeday recording, timing recording and alarm recording
Video Storage	Support Max 128G TF Card
Audio Compression	G.711A
Audio Input	built-in 38dB microphone
Audio Output	Built-in speaker (8Ω 3W)
Protocols	TCP/IP,HTTP,TCP,UDP,SMTP,DHCP,NTP,UPnP,P2P etc
Wireless	WiFi 802.11b/g/n wireless network
Network Interface	1 RJ45 10M / 100M Ethernet port
Detection	High body temperature, >37.3^oC
System Configuration	Software version IOS7.1, Android 4.0 and above
Battery	2pcs 3000ma 18650 battery
Operating temperature	Operating temperature: 5° c ~ + 37 ° c
Power	Maximum power < 5w, 5V USB power supply

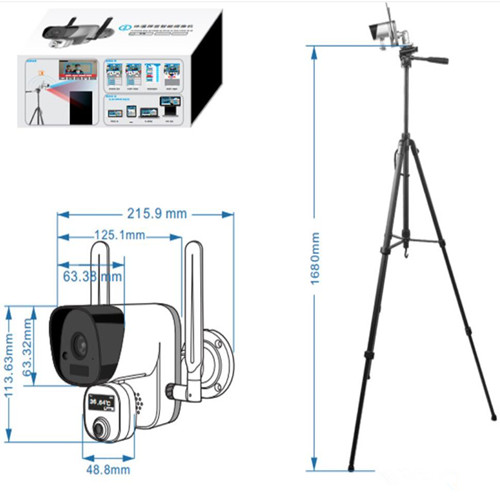

produst size	216mm * 63mm * 114mm
package size	254mm * 150mm * 140mm
weight	0.9 / 1.2kg

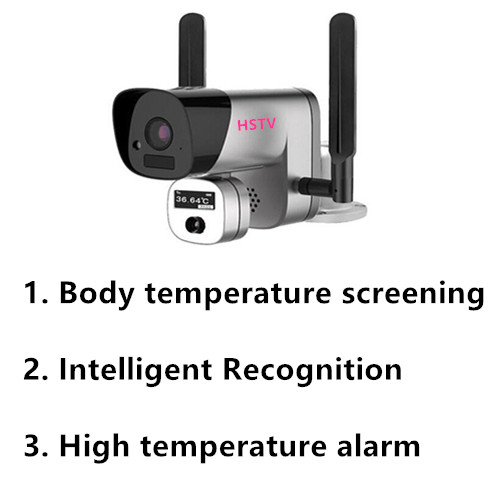

Features1	Built with 6000mA rechargeable batteries, sustainable work last for 8 hours
Features2	Body temperature detection can accurate to 0.3^oC
Features3	Advanced warning system, auto push alert when detects a high body temperture.
Features4	Temperature data display real-time, support save as video and image,record playback
Features5	Multi-device display and monitoring : Mobile phone, PAD, PC
