Best Quality Truck LED Screen

PH5 SMD Truck LED Screen 960×960mm #CM5

Price:US$ 835.⁰⁰

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

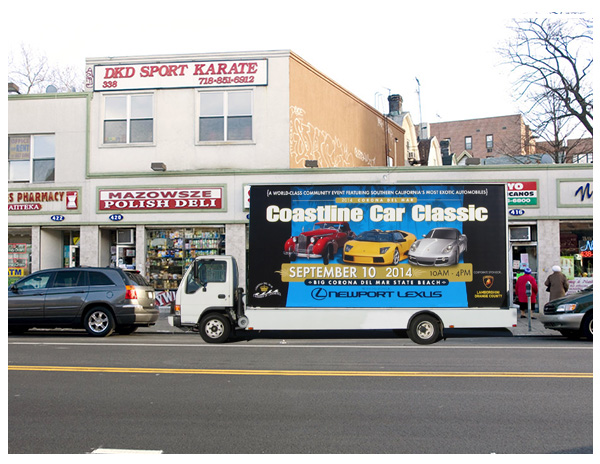

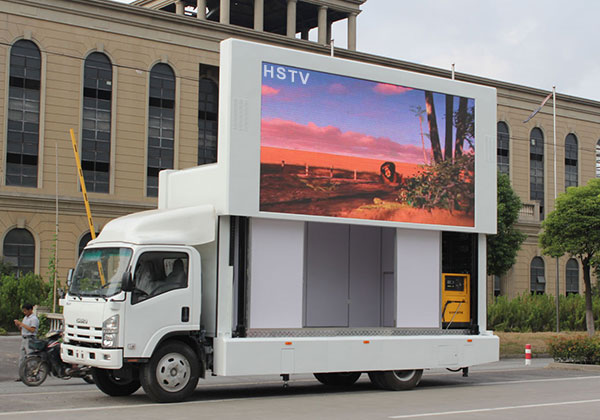

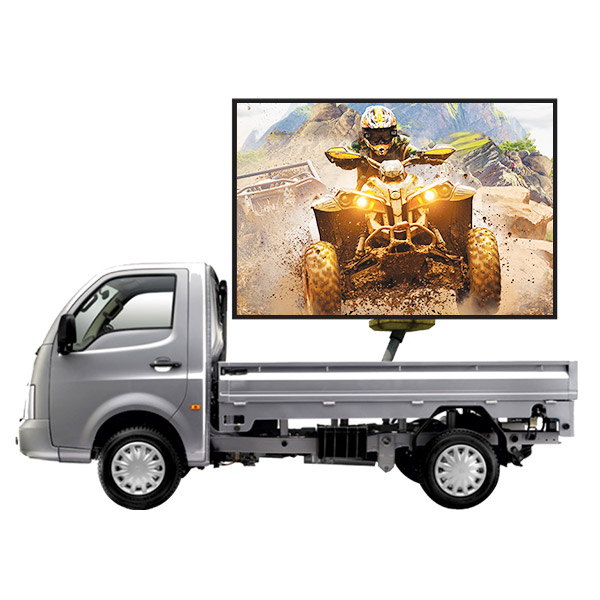

PH5 Truck LED Screen Truck led screen is not limited by geographical location, playing advertising according to customer needs, in the street, community, business district and other precise target market area. Mobile advertising can reach to wide audiences.
			Hot Product in 2017 The Truck LED Screen has remained the hottest product in 2017 loved by thousands of people. With its advanced features, multiple usage and affordable prices, it is being purchased by various business owners. It is listed amongst the most sold products of 2017.
The quality module All modules and chips are purchased from leading suppliers from across the world. We take great care of quality and performance, and thus we remain very careful while selecting the modules and chips. LED chip is provided by Epistar, Cree, Nichia and Opto. Quality IC supplied by MBI, TMS, PWM and Mingyang.
			Super visual impact The height of truck led display just same as the pedestrian line of sight, advertising information can be close to the audience, to achieve the greatest visual opportunities. At the same time, for drivers, advertising particularly eye-catching.
Light and thin, easy to assemble and disassemble The cabinet structure is thin and light not only reduces truck space occupied but also easy to dismount.
			Multi-functional Truck led display not only used as mobile advertising media but also used as the display of temperature stage.
Super static electricity protection To prevent running vehicle generated electrostatic damage the lights and driver IC of led display. To protect the safe operation of the display.
			High Brightness, Better Quality Installing at outdoor places require the displays to produce high brightness outputs. The high brightness and high definition features of the Truck LED Screen ensures great quality pictures - making it a perfect fit for promotion, station, stadium and other outdoor places.



One Price for All In single price, you get the complete kit which includes the LED display, cabinet, control system and package. It saves you a lot of money. Also, we replace the faulty accessories without any cost if your product is in warranty period.
			Our Company Building Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
			Fastest Delivery and Best Online Services OptoKingdom provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.
Best After-sale Service If your Truck LED Screen is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	SMD2727
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(800-960mcd)
Chip parameters	Green (520-525nm) IV:(1350-1650mcd)
Chip parameters	Blue (470-475nm) IV:(330-400mcd)

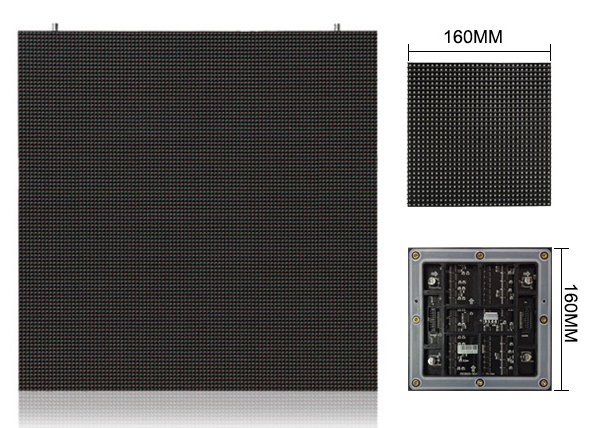

LED Module
Pixel Pitch	5mm
Module Size	160×160mm
Module Resolution	32×32=1024(Dots)
Module Weight	0.2kg

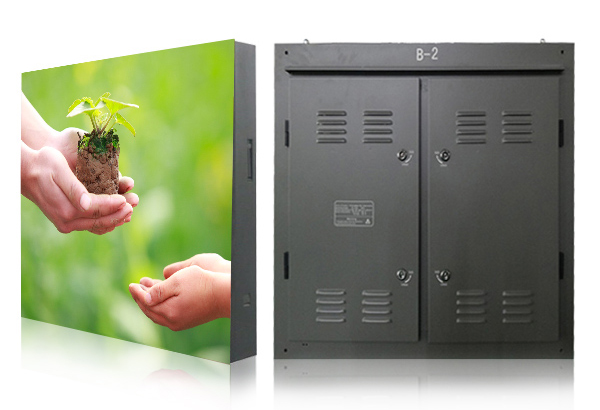

LED Cabinet
Pixel Density	40000 Dots/sqm
Frame Frequency	no less than 60 frame/sec
Cabinet Resolution	192×192=36864(Dots)
Input Voltage	AC110-220V±10%, 50/60Hz
Cabinet Dimension(WHD)	960×960×175mm
Output Voltage	DC-5V, 40A/60A/80A
Module Quanty /Cabinet	6×6=36(Pcs)
Color Grayscale	16bit
Gray Scale per Color	65536 level
Cabinets Material	Steel
Color Processing	R(1024)×G(1024)×B(1024)
Cabinet Weight	34kg/PCS
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
Brightness	>6500cd/sqm
MTBF( mean time between failures)	5000 hours
Viewing Angle	120(Horizontal), 120(Vertical)
Life-span	100, 000 hours
Nearest Viewing Distance	8m
Protection Level(front/back)	IP66/IP54
Power Consumption (Max)	1200 w/sqm
Power Consumption (Average)	360 w/sqm
Malfunction Dot Rate	less than 0.0001
Operating Temp/Humidity	-15^oC~50^oC,15%~85%RH
Display Function	Text, Graphics, Video
Storage Temp/Humidity	-30^oC~55^oC,15%~85%RH
Refresh Rate	>1920Hz
Drive Mode/Driver Position	Constant driving 1/8 Scan, Combined diver board
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card, Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio ( HSTV- NOVA )
Communication Type	Net cable; 3G, WIFI(Sold separately)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate	CE, ROHS, FCC, ISO9001, TUV
ControlC ard Input	DVI, USB; RJ45, HDMI(Sold separately)
