Name: PH10 SMD Truck LED Screen 960×960mm
Brand: HS
Price: 625.00 USD
Availability: InStock
Rating: 0 (0 reviews)

PH10 SMD Truck LED Screen 960×960mm #CM10

Price:US$ 625.⁰⁰

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

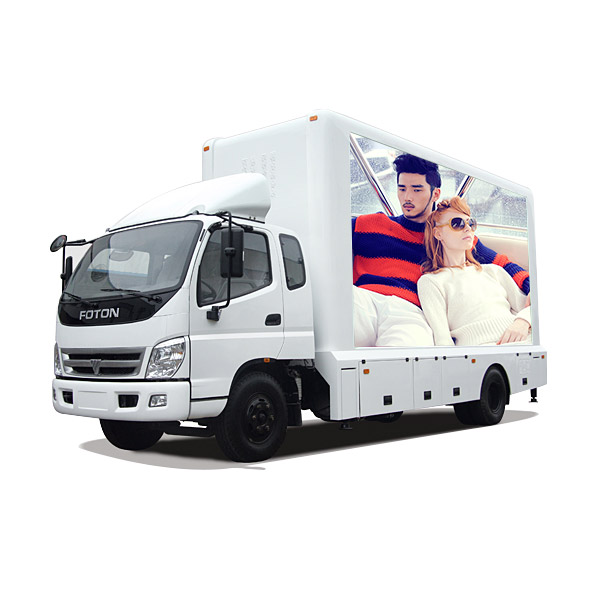

PH10 Truck LED Screen The moving LED display is finest option for truck and vehicle advertisement. The stable display keeps the images and videos blur-free, even when the vehicle is moving. Easy to install and control. One man can handle everything.

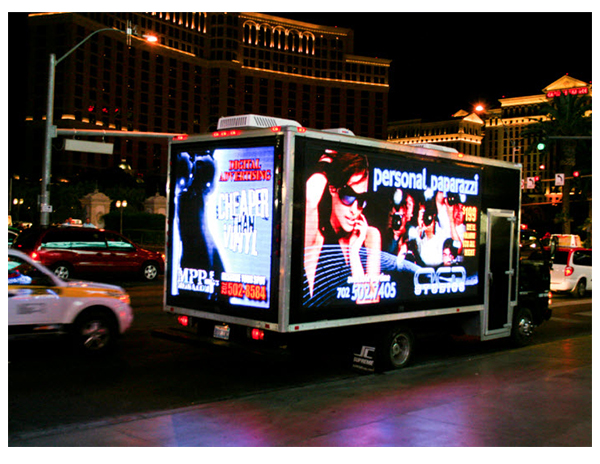

			Mobile advertising platform Truck led screen is not limited by geographical location, playing advertising according to customer needs, in the street, community, business district and other precise target market area. Mobile advertising can reach to wide audiences.
Brand Names you can Trust We purchase the chips, ICs and material from the most renowned vendors like Cree (USA), Nichia (Japan), Opto (Taiwan), MBI, TMS, PWM and MingYang. Best quality material is used to manufacture the products. Extra care is taken while assembling the products. So you can always trust the quality of this product.
			IFP Conditions One: 1/10 Duty Cycle. Two: 0.1 msec Pulse Width.
Electrical / Optical characteristics One: Tolerance of measurement of Vf is ±0.05 V. Two: Luminous Intensity Measurement allowance is ± 10%. Three: Color Coordinates Measurement allowance is ± 1nm.

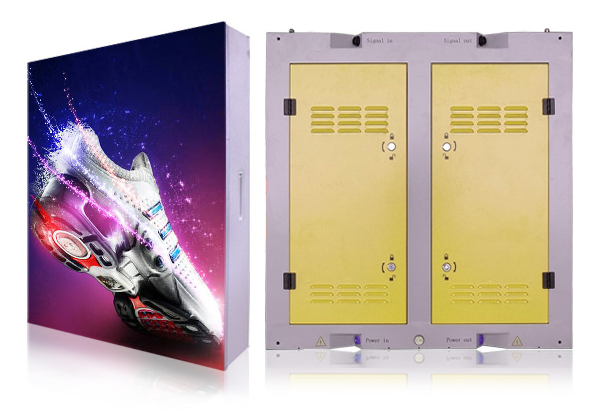

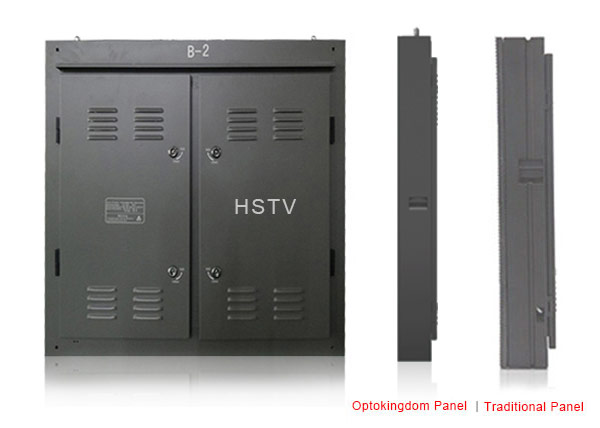

			Light and thin, easy to assemble and disassemble The cabinet structure is thin and light not only reduces truck space occupied but also easy to dismount.

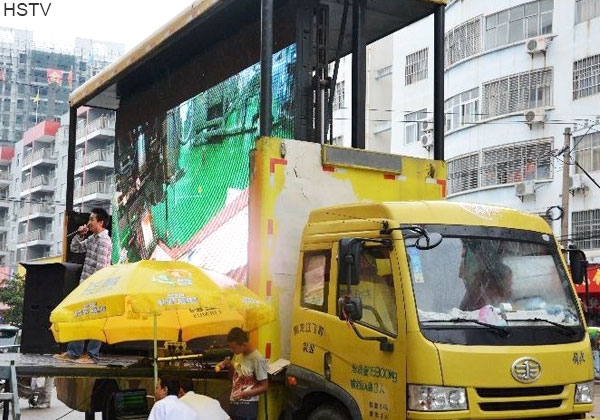

Multi-functional Truck led display not only used as mobile advertising media but also used as the display of temperature stage.
			Super static electricity protection To prevent running vehicle generated electrostatic damage the lights and driver IC of led display. To protect the safe operation of the display.

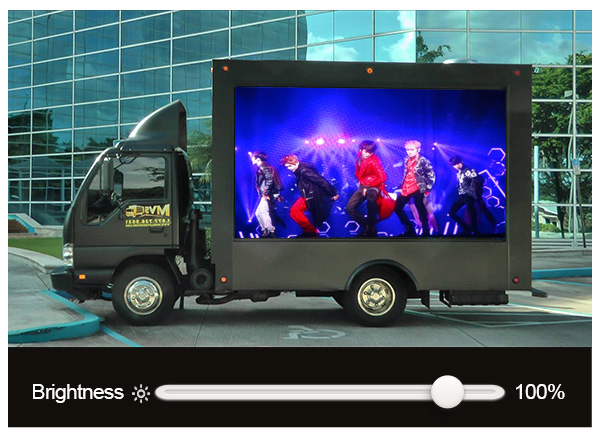

High Brightness for Quality Output The display features high brightness and advanced features like automatic and manual brightness adjustment. This means, you will get crystal clear picture output in any weather and every day. Adjust the brightness according to the area of installation.



			One price for all In single price, you get the complete kit which includes the LED display, cabinet, control system and other packages. It saves you a lot of money. Also, we replace the faulty accessories without any cost if your product is in warranty period.
Our Company Building Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality product that have passed certifications like CE, FCC, RoSH and SGS and many more.
			Best Quality Guaranteed Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
Fastest Delivery and Best Online Services OptoKingdom provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.
			Best After sale service If your Truck LED Advertising Display is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	SMD3535
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(800-960mcd)
Chip parameters	Green (520-525nm) IV:(1350-1650mcd)
Chip parameters	Blue (470-475nm) IV:(330-400mcd)

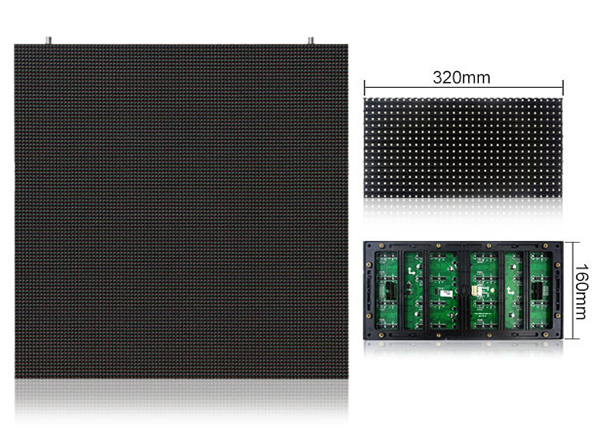

LED Module
Pixel Pitch	10mm
Module Size	320×160mm
Module Resolution	32×16=512(Dots)
Module Weight	0.5kg
LED Cabinet
Pixel Density	10000 Dots/sqm
Frame Frequency	no less than 60 frame/sec
Cabinet Resolution	96×96=9216(Dots)
Input Voltage	AC110-220V±10%, 50/60Hz
Cabinet Dimension(WHD)	960×960×175mm
Output Voltage	DC-5V, 40A/60A/80A
Module Quanty /Cabinet	3×6=18(Pcs)
Color Grayscale	16bit
Gray Scale per Color	65536 level
Cabinets Material	Steel
Color Processing	R(1024)×G(1024)×B(1024)
Cabinet Weight	36kg/PCS
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
Brightness	>6500cd/sqm
MTBF( mean time between failures)	5000 hours
Viewing Angle	120(Horizontal), 120(Vertical)
Life-span	100, 000 hours
Nearest Viewing Distance	13m
Protection Level(front/back)	IP66/IP54
Power Consumption (Max)	1000 w/sqm
Power Consumption (Average)	300 w/sqm
Malfunction Dot Rate	less than 0.0001
Operating Temp/Humidity	-15^oC~50^oC,15%~85%RH
Display Function	Text, Graphics, Video
Storage Temp/Humidity	-30^oC~55^oC,15%~85%RH
Refresh Rate	>1920Hz
Drive Mode/Driver Position	Constant driving 1/4 Scan, Combined diver board
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card, Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio(HSTV-NOVA)
Communication Type	Net cable; 3G, WIFI(Sold separately)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate	CE, ROHS, FCC, ISO9001, TUV
Control Card Input	DVI, USB; RJ45, HDMI(Sold separately)
