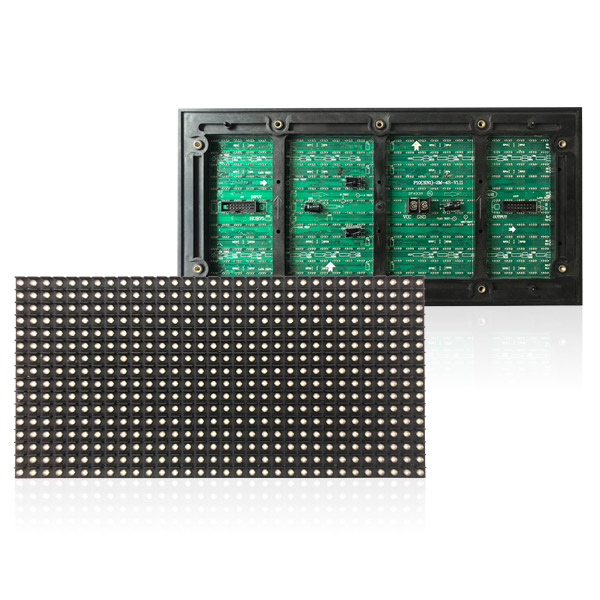

Name: PH13.33 Outdoor DIP Full Color Module 320×160mm
Brand: HS
Price: 14.76 USD
Availability: InStock
Rating: 0 (0 reviews)

PH13.33 Outdoor DIP Full Color Module 320×160mm #OFDM13.3

Price:US$ 14.⁷⁶

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

PH13.33 Outdoor DIP Full Color Module Its multiple protection guard protects it from damage and outdoor environmental conditions. Rectangle module makes it lightweight, easy to transport and easy to install. An ideal choice for outdoor advertising

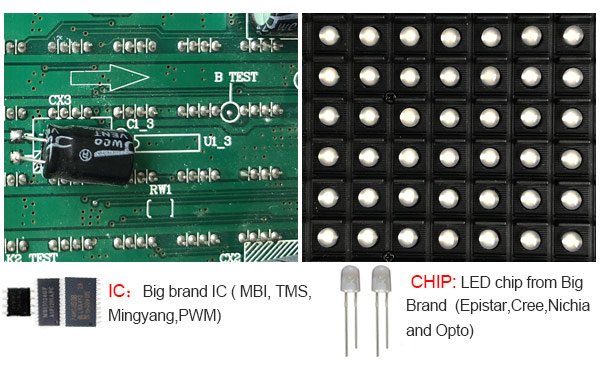

			Brand Names you can Trust We purchase the chips, ICs and material from the most renowned vendors like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan), MBI, TMS, PWM and MingYang. Best quality material is used to manufacture the products. Extra care is taken while assembling the products. So you can always trust the quality of this product

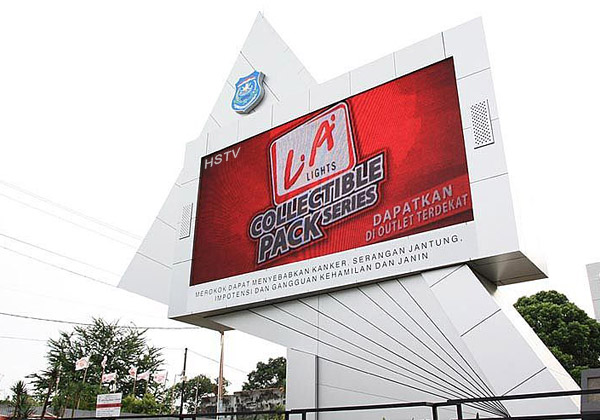

Optimum Design for Stage and Screens The PH13.33 Outdoor DIP Full Color Module features high resolution HD screen which offers best quality output. An ideal gadget for ideal visual feast. Install at a crowded place and let everyone enjoy the best quality images and videos with utmost clarity
			Open Price We provide greater cost effective products on the ex-factory price approximately 60 percent less than the price you get from distributor.
Umbrella Function of Each Module The outdoor LED screen module is manufactured with great care and precision. Latest technology is used to guarantee best quality. Front IP65 waterproof guard works like an umbrella to protect the screen from rain and dust. Can work in any weather.
			Low Power Consumption - Environment Friendly The high-tech transformer used in the module can change AC-220/110V input voltage into DC-5V output ensuring low power consumption. So it saves on your electricity bills, it saves energy and becomes environment friendly.
Standard Control Process for Perfect Performance The video process can receive different input signals and its video integrate machine works with sending card to create complete image. It's intelligent remote control lets you manage everything very conveniently. Receives synchronous message on the screen, getting everything under control.
			Module Supports Different Cabinets The LED display module is perfectly sized to support different cabinets. Its steel cabinet is strong and lightweight. The module can be installed on any aluminum cabinet or common cabinet. Flexible and easy to install.
Get Every Detail in Picture We spend some time with every detail of the product, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen.
			Factory real shot Focus in every single detail of product. Keep improving the quality.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

Your Recent History

LISTEN Triple-Color WIFI Card
US$ 13.00

Add to cart

Quick Index: A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0-9 Sitemap Mobile Site

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	DIP(3 in 1)570
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(2100-2200mcd)
Chip parameters	Green (520-525nm) IV:(4200-4300mcd)
Chip parameters	Blue (470-475nm) IV:(700-750mcd)
LED Module

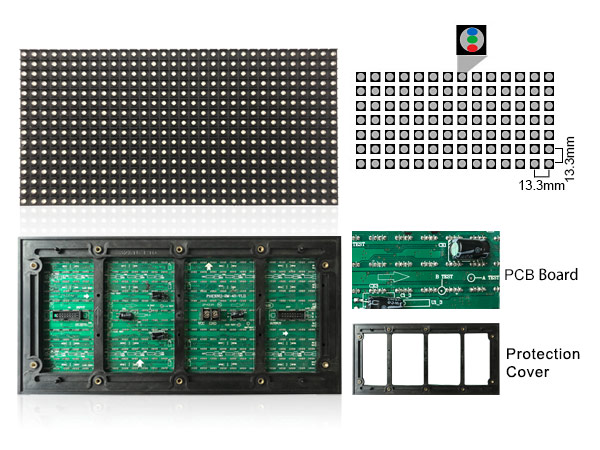

Pixel Pitch	13.33mm
Module Size	320×160mm
Module Resolution	24×12=288(Dots)
Module Weight	0.5kg
Module Input Interface	HUB-75
LED Cabinet
Pixel Density	10000 Dots/㎡
Frame Frequency	no less than 60 frame/sec
Brightness	≥5500cd/㎡
Input Voltage	AC110-220V±10%,50/60Hz
Viewing Angle	110(Horizontal),55(Vertical)
Output Voltage	DC-5V,40A/60A/80A
Nearest Viewing Distance	10m
Color Grayscale	16bit
Gray Scale per Color	65536 level
Power Consumption (Max)	900 w/㎡
Color Processing	R(1024)×G(1024)×B(1024)
Power Consumption (Average)	300 w/㎡
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional
Display Function	Text,Graphics,Video
MTBF( mean time between failures)	5000 hours
Refresh Rate	≥1000Hz
Life-span	100,000 hours
Working Temperature	-20℃~55℃
Protection Level(front/back)	IP66/IP54
Humidity	15%~85%
Malfunction Dot Rate	less than 0.0001
Drive Mode/Driver Position	Constant driving 1/3 Scan,Combined diver board
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card,Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio ( HSTV-linsn )
Communication Type	Net cable, 3G,WIFI（Sold separately)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate	CE,ROHS,FCC,ISO9001, TUV
Control Card Input	DVI,USB,RJ45,HDMI（Sold separately)
