Name: PH16 Full Color DIP Outdoor LED Module
Brand: HS
Price: 9.20 USD
Availability: InStock
Rating: 5 (3 reviews)

PH16 Full Color DIP Outdoor LED Module #OFDM16

Price:US$ 9.²⁰

Model No:: OFDM16-A OFDM16-C OFDM16-D

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

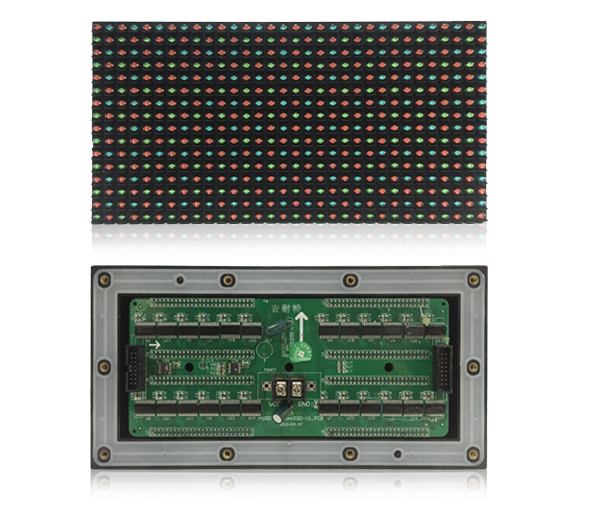

PH16 Full Color DIP Outdoor LED Modules Low power consumption allows you to save on your electricity bills and help environment. 16mm Pixel pitch and full-color module presents stunning display. An ideal choice for outdoor advertising.

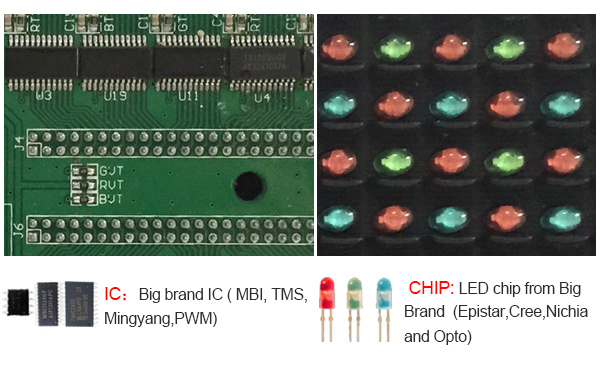

			Best Quality Material, Modules and Chips The material, modules and chips are selected with great care. We purchase the material from reputed vendors. Chips are purchased from big brands like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan). ICs are bought from MBI, TMS, PWM and MingYang. These manufactures are known for their great quality products.

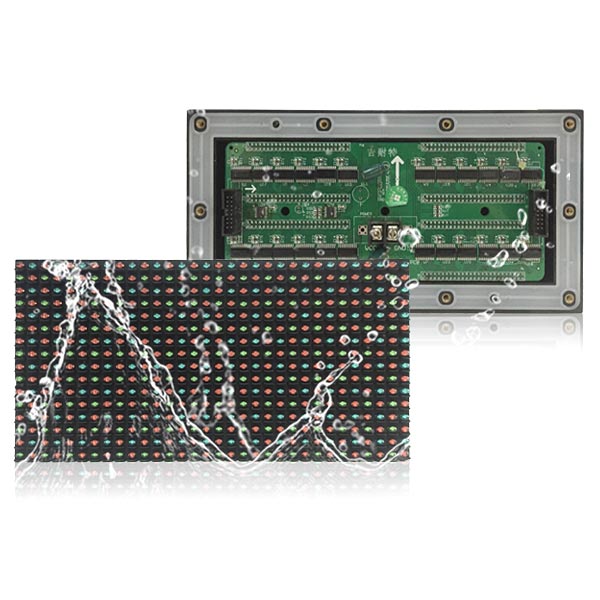

High-performing Components at Best Price All components used to manufacturer this PH16 Waterproof LED Screen Module are purchased from most reputed suppliers, ensuring utmost quality of the module. We guarantee best price for the product making sure it remains in your budget.
			Open Price We provide most cost effective LED display module on the ex-factory price.
Hi-Tech Manufacturing - Hi-Tech Products Best quality components are used to manufacture the product, and we purchase the components from most reputed vendors. Cutting-edge technology is used by our engineers, making sure the final product delivers utmost quality.

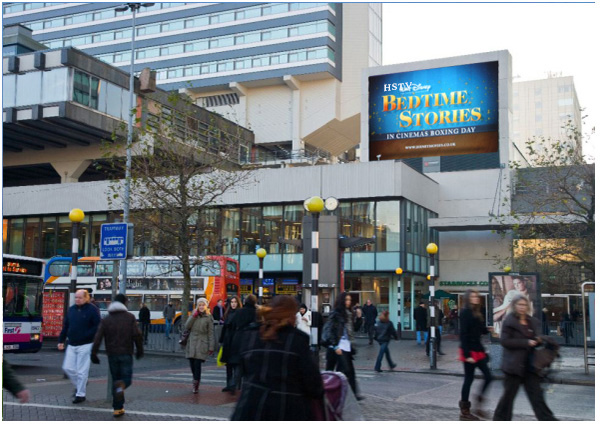

			High Brightness, Better Quality Installing at outdoor places require the displays to produce high brightness outputs. The high brightness and high definition features of the PH16 Waterproof LED Screen Module ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.
Low Power Consumption - Environment Friendly The high-tech transformer used in the module can change AC-220/110V input voltage into DC-5V output ensuring low power consumption. So it saves on your electricity bills, it saves energy and becomes environment friendly.

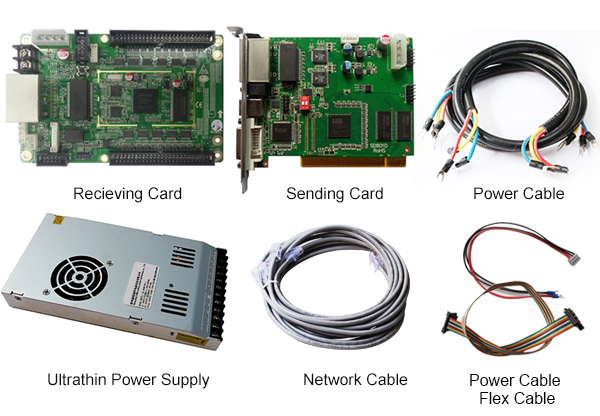

			Standard Control Process for Perfect Performance The video process can receive different input signals and its video integrate machine works with sending card to create complete image. It's intelligent remote control lets you manage everything very conveniently. Receives synchronous message on the screen, getting everything under control.
Module Supports Different Cabinets The PH16 Waterproof LED Screen Module is perfectly sized to support different cabinets. Its steel cabinet is strong. The module can be installed on any aluminum cabinet or common cabinet. Flexible and easy to install.
			Get Every Detail in Picture We spend some time with every detail of the product, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen.
Factory real shot Focus in every single detail of product. Keep improving the quality.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

Technical Specifications	OFDM16-A	OFDM16-C	OFDM16-D
Pixel Pitch	16mm
Type	DIP346		DIP546
Arrangement	2R1G1B	1R1G1B
Chip parameters	Red (620-625nm) IV:(1000-1200mcd)
Chip parameters	Green (520-525nm) IV:(2000-2500mcd)
Chip parameters	Blue (470-475nm) IV:(500-650mcd)
Module Resolution	16×8=128(Dots)	16×16=256(Dots)	20×10=200(Dots)
Module Size	256×128mm	256×256mm	320×160mm
Module Weight	0.75kg	1kg	0.75kg
Module Input Interface	HUB-75
Pixel Density	3906 Dots/㎡
Brightness	≥5500cd/㎡	≥5500cd/㎡	≥5500cd/㎡
Viewing Angle	110(Horizontal),55(Vertical)
Nearest Viewing Distance	19m
Power Consumption (Max)	800 w/㎡
Power Consumption (Average)	250 w/㎡
Input Voltage	AC110-220V±10%,50/60Hz
Color Grayscale	16bit
Gray Scale per Color	65536 level
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional
Life-span	100,000 hours
Operating Temp/Humidity	-15℃~50℃,15%~85%RH
Storage Temp/Humidity	-30℃~55℃,15%~85%RH
Drive Mode/Driver Position	Static Separated driver board	Static Combined driver board	Constant driving 1/5 Scan,Separated diver board
Input Signal	AVI/MPG/MPEG/TXT.etc
Control Mode	Synchronization/Asynchronization
Control System	Sending Card, Receiving Card,Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio ( HSTV-linsn )
Language	Chinese、Traditional Chinese、English、French、Japanese、Russian、Thai、Spanish、Polish、Italian、Portuguese、Turkish、Dutch、Greek、Bulgarian、Romanian、Arabic
Communication Type	WIFI, Net cable，3G（Sold separately）
Control Card Input	DVI,USB,RJ45、HDMI（Sold separately)
Certificate	CE,ROHS,FCC,ISO9001，TUV
