Best Quality Outdoor Video Screen

PH12.5-A Outdoor DIP 1/2 Scan LED Screen 1000×1000mm #OFDC12.5-A

Price:US$ 805.⁰⁰

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

DIP LED Outdoor Video Screen Certainly the best option for outdoor advertising, this rental LED display carries some features that make it highly suitable for outdoor areas. Can work in different brightness level and outdoor circumstances. Can be used at stage, bank, promotion, exhibition, highway, station, KTV, stadium, airport and other outdoor places.

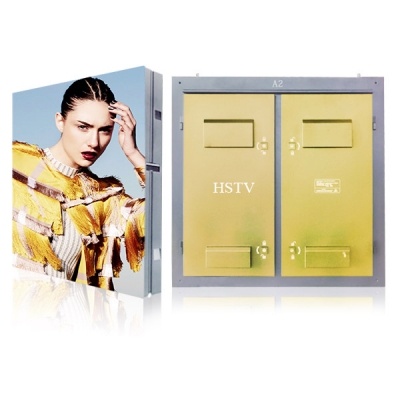

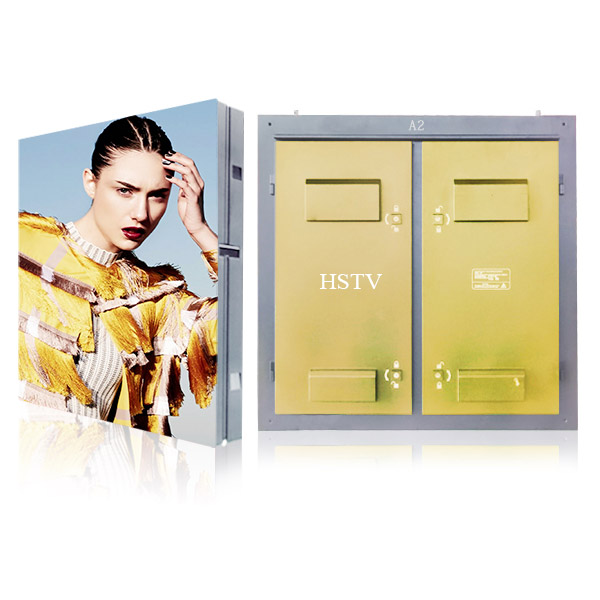

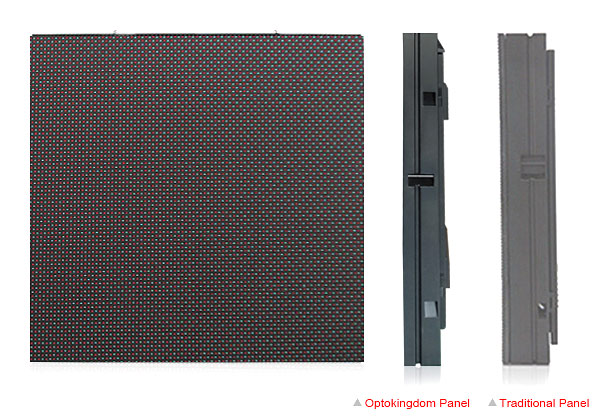

			Standard Cabinet Dimensions The ultra-lightweight cabinet made is aluminum alloy which gives it extra strength. The cabinet of Outdoor Video Screen is designed with perfection, making it really easy to install. Also, the quick-lock feature requires no technical skills to install and uninstall.

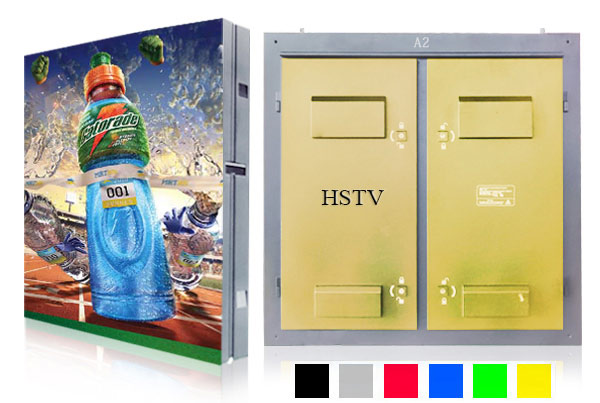

Unique Design - Easy to Install & Transport The cabinet of Outdoor Video Screen features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It's damage free and lasts for a lifetime. Pick out from different standard colors of cabinets.
			Great Outdoor Performance The displays are created for supreme quality outdoor performance, and it delivers the same with perfection. See pictures, videos, text and much more with every detail. The high resolution display offers picture-perfect outputs in outdoor areas - in any environment conditions.
Good heat dissipation effect, long lifespan Optimize the cooling system, dual-channel cooling design, low attenuation, long service life.

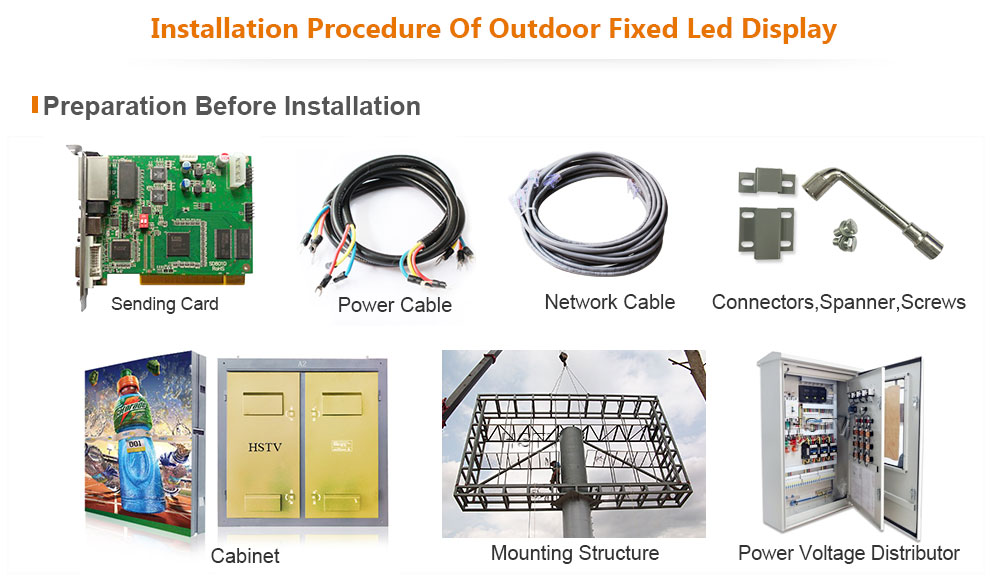

			Fast and easy install Accurate, fast, flexible positioning installation, can effectively deal with different installation environment.
Better Protection The display features a Front IP66 waterproof grade which protects the display from any damage. A dedicated guard prevents the screen from any damage and environmental effects. The screen will remain harmless in every condition and in every weather.
			Featured quality materials High-quality raw materials, mature technology, large-scale production ensure stable and reliable quality.

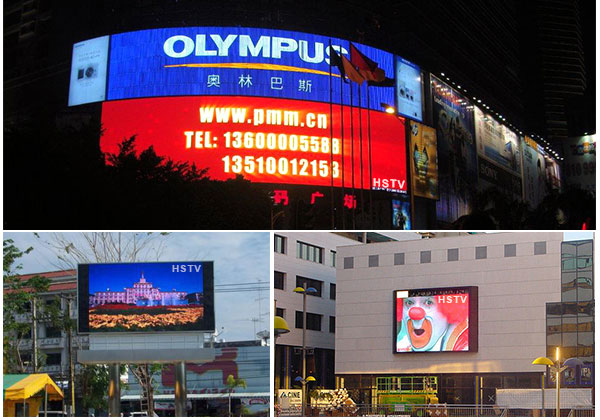

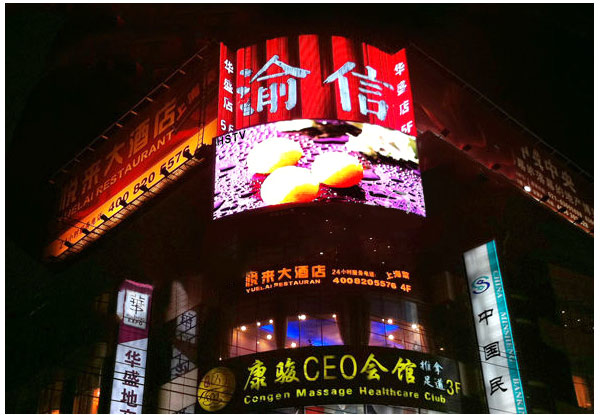

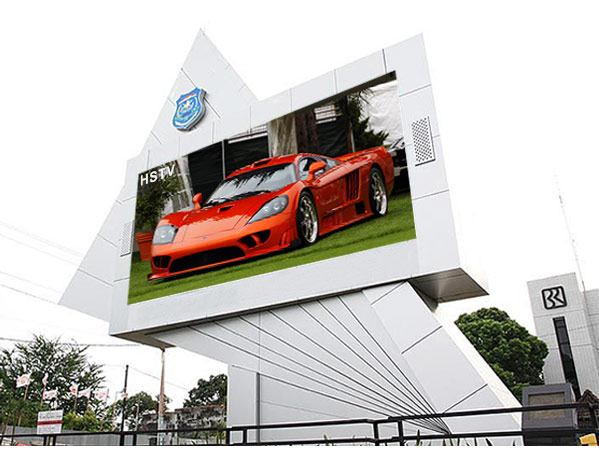

Application The Outdoor Video Screen can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration, video displays, educational purposes and much more. You may use it at outdoor areas like highways, streets, malls, stages, stadium and at many more outdoor places.



			Our Company Building Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality product that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
			Best After sale service If your Outdoor Video Screen is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
Fastest Delivery and Best Online Services OptoKingdom provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	DIP346
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(1000-1200mcd)
Chip parameters	Green (520-525nm) IV:(2000-2500mcd)
Chip parameters	Blue(470-475nm) IV:(500-650mcd)
LED Module
Pixel Pitch	12.5mm
Module Size	200×200mm
Module Resolution	16×16=256(Dots)
Module Weight	0.7kg
LED Cabinet
Pixel Density	6400 Dots/sqm
Frame Frequency	no less than 60 frame/sec
Cabinet Resolution	80×80=6400(Dots)
Input Voltage	AC110-220V±10%, 50/60Hz
Cabinet Dimension(WHD)	1000×1000×185mm
Output Voltage	DC-5V, 40A/60A/80A
Module Quanty /Cabinet	5×5=25(Pcs)
Color Grayscale	16bit
Gray Scale per Color	65536 level
Cabinets Material	Steel
Color Processing	R(1024)×G(1024)×B(1024)
Cabinet Weight	47kg
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
Brightness	>6500cd/sqm
MTBF( mean time between failures)	5000 hours
Viewing Angle	110(Horizontal), 55(Vertical)
Life-span	100, 000 hours
Nearest Viewing Distance	15m
Protection Level(front/back)	IP66/IP54
Power Consumption (Max)	600 w/sqm
Malfunction Dot Rate	less than 0.0001
Power Consumption (Average)	200 w/sqm
Operating Temp/Humidity	-15^oC~50^oC,15%~85%RH
Display Function	Text, Graphics, Video
Storage Temp/Humidity	-30^oC~55^oC,15%~85%RH
Refresh Rate	>1920Hz
Drive Mode/Driver Position	Constant driving 1/2 Scan, Separated diver board
Heat Dissipation	Screen size >30sqm / Temperature >40^oC, need matched air conditioner cooling. only for Outdoor Normal Led Display
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card, Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio(HSTV-linsn)
Communication Type	Net cable; 3G, WIFI(Sold separately)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate	CE, ROHS, FCC, ISO9001, TUV
Control Card Input	DVI, USB, RJ45, HDMI(Sold separately)
