PH8 SMD LED Screen

PH8 SMD Sport Field LED Screen 960×960mm #SP8

Price:US$ 496.⁰⁰

Model No:: B-Nationstar lamp A-Kinglight lamp

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

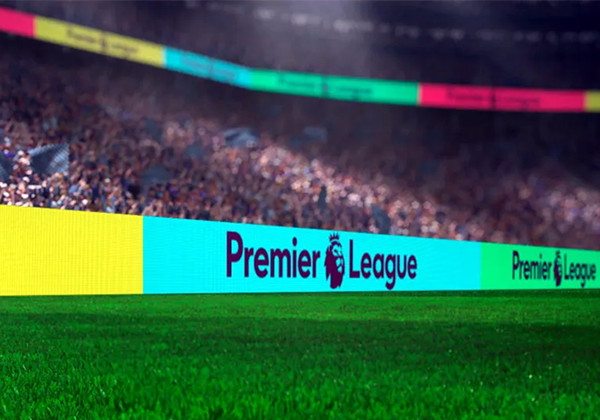

PH8 Perimeter Led Displays And Perimeter Advertising The SMD Sport Field LED Screen is ideal for places of with huge crowd. Its high resolution picture and wide viewing angle ensure best quality pictures and videos to every corner of the stadium. Stable body protects the display from any damage, even high speed ball.

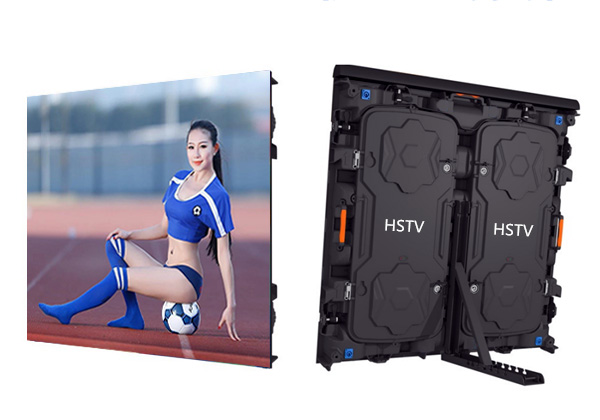

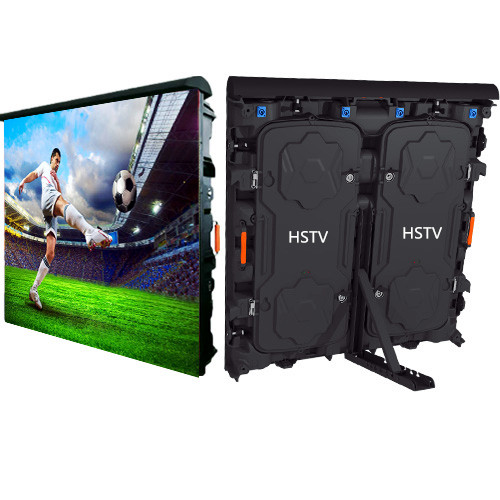

			Portable and easy transport The SMD Sport Field LED Screen have integrated pull down rear back support brackets it enables easy transportation in flight cases and easy installation,You only need to pull down the brackets on the floor and then the sport field led screen can ben supported on the ground.
The quality module All modules and chips are purchased from leading suppliers from across the world. We take great care of quality and performance, and thus we remain very careful while selecting the modules and chips. LED chip is provided by Epistar, Cree, Nichia and Opto. Quality IC supplied by MBI, TMS, PWM and Mingyang.
			IFP Conditions One: 1/10 Duty Cycle. Two: 0.1 msec Pulse Width.
Electrical / Optical characteristics One: Tolerance of measurement of Vf is ±0.05 V. Two: Luminous Intensity Measurement allowance is ± 10%. Three: Color Coordinates Measurement allowance is ± 1nm.
			High refresh rate Meet the needs of different shooting levels, offer perfect and outstanding shooting effect.
Wide Viewing Angle for Broader Reach The display features a wide viewing angle of 140° which reaches more viewers. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs. This makes it suitable for large gathering.
			Specially Suitable for Broadcasting Because of the professional system design and high refresh rate they are designed for television broadcating.The image is extremely stable and has no loss of visual information.
LINSN Control System The display features LINSN control system which ensures great quality output, high resolution display, fast loading time and high refresh rate. The display is known for its stability and reliability, making it ideal for different advertising purposes.
			High Brightness for Quality Output The SMD Sport Field LED Screen features Over 6000cd/sqm brightness and advanced features like manual brightness adjustment. This means, you will get crystal clear picture output in any weather and every day. Adjust the brightness according to the area of installation.
One Price for All In single price, you get the complete kit which includes the LED display, cabinet, control system and package. It saves you a lot of money. Also, we replace the faulty accessories without any cost if your product is in warranty period.
			Our Company Building Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
			Fastest Delivery and Best Online Services OptoKingdom provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.
Best After-sale Service If your PH8 SMD Sport Field LED Screen is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	SMD3535
Brand	Kinglight / Nationstar lamp
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(800-960mcd)
Chip parameters	Green (520-525nm) IV:(1350-1650mcd)
Chip parameters	Blue (470-475nm) IV:(330-400mcd)

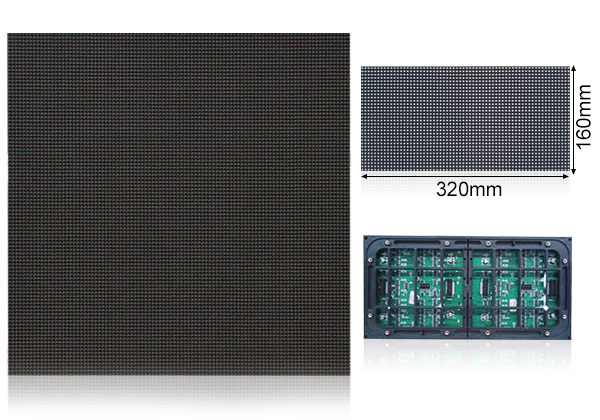

LED Module
Pixel Pitch	8mm
Module Size(W*H)	320×160mm
Module Resolution	40×20=800(Dots)
Module Weight	0.5kg
LED Cabinet
Pixel Density	15625 Dots/sqm
Cabinet Dimension(WHD)	960×960×95mm
Module Quanty /Cabinet	3×6=18(Pcs)
Cabinet Resolution	120×120=14400Dots
Cabinets Material	Aluminum-magnesium alloy Cabinet
Cabinet Weight	50kg/PCS
Brightness	>5500cd/sqm
Viewing Angle	120(Horizontal),120(Vertical)
Nearest Viewing Distance	11m
Power Consumption (Max)	1000 w/sqm
Power Consumption (Average)	300 w/sqm
Refresh Rate	>1920Hz
Drive Mode/Driver Position	Constant driving 1/5 Scan, Combined diver board
Display Function	Text,Graphics,Video
Frame Frequency	no less than 60 frame/sec
Input Voltage	AC110-220V±10%,50/60Hz
Output Voltage	DC-5V,40A/60A/80A
Grey Scale Levels	16bit
Color Processing	R(1024)×G(1024)×B(1024)
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional
MTBF(mean time between failures)	5000 hours
Life-span	100,000 hours
Protection Level(front/back)	IP66/IP54
Malfunction Dot Rate	less than 0.0001
Operating Temp/Humidity	-15^oC~50^oC,15%~85%RH
Storage Temp/Humidity	-30^oC~55^oC,15%~85%RH
Control System
Control Method	Synchronization/Asynchronization
Control System	Sending Card, Receiving Card,Receiving HUB
Software	LED Studio (HSTV-NOVA)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Control Card Input	DVI,USB,RJ45, HDMI(Sold separately)
Input Signal	AVI/MPG/MPEG/TXT.etc
PC Operating System	Microsoft Windows 10, XP and Windows 7
Communication Type	Net cable, 4G, WIFI(Sold separately)
Certificate	CE,ROHS,FCC,ISO9001, TUV
