P7.8125-15.625 Outdoor SMD Led Curtain Display

PH7.8125-15.625 Outdoor led curtain display1000×500mm #OSSD7.81

Price:US$ 475.⁰⁰

Model No:: B-Nationstar lamp A-Kinglight lamp

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

Customized design PH7.8125-15.625 outdoor led display curtain display suitable for different facade of the buildings; it can be customized according to the shape of building and integration with the wall.

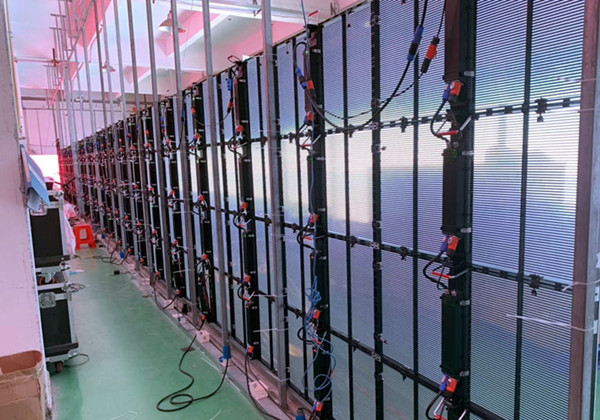

			Front and rear maintain are available Very easy installation and maintenance, ultra-slim frame structure can achieve front and rear maintain according to the using environment which can save a lot maintain cost.

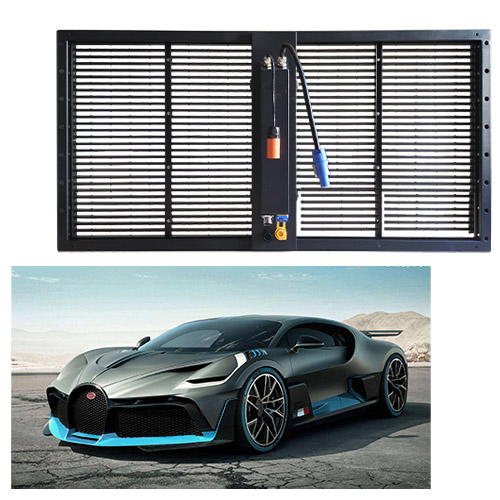

Light weight and thin Led curtain display thickness is only 70mm, 2cm thickness of front maintain structure, 18kg/sqm of led curtain display which lighter 30-60% to the traditional led display. Reduce the construction load efficiency and reduce installation costs.

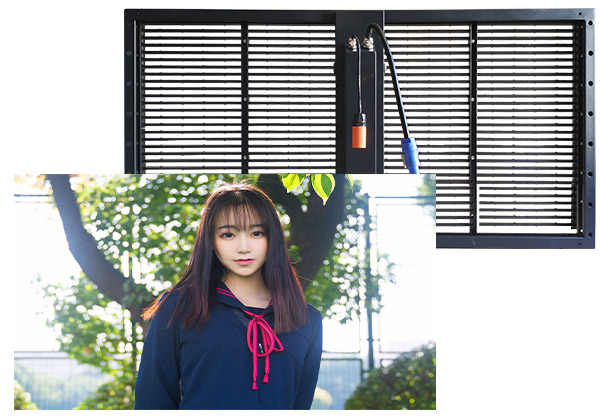

			High transparency LED curtain display with ventilation, light transmission design, to achieve led display and the air natural convection cooling, anti-typhoon and fireproof.
Integrated design Led curtain display adopted integrated, modular design achieve module or cabinet assemble and disassemble function.

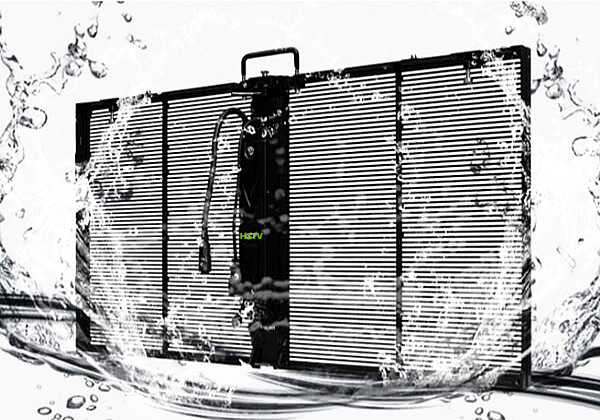

			Strong resistance to harsh using environment Aluminum alloy cabinet structure with high strength, no deformation, anti-corrosion characteristic. Adapt to a variety of climatic conditions, especially high temperature, high humidity environment.
Energy saving and environment friendly Led curtain display adopted high efficiency LED, it's brightness over 5500CD. Energy saving and environment friendly design is very suitable for high temperature area without cooling by air conditioner.
			Low failure rate,Good stability There are less internal cables in led curtain display which can reduce the failure rate and improve the anti-fire rate. Led curtain display adopted two plug design, simplify cable connection,lower signal and power supply malfunction.
Compare with traditional led screen on roof Outdoor SMD led curtain display suitable used in the places with strong wind Ultra-Lightweight structure and anti-wind feature ensure its safety even in typhoon weather. The safety of traditional led display in typhoon weather is not good enough.

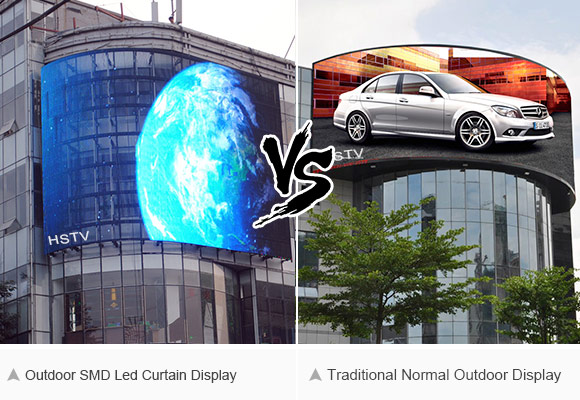

			Compare with normal led display installed on external wall Led curtain led display not only features lightweight structure but also has beautiful appearance which can be installed on the wall without any change. The weight of normal led display is heavy which need to change the wall structure to support it.

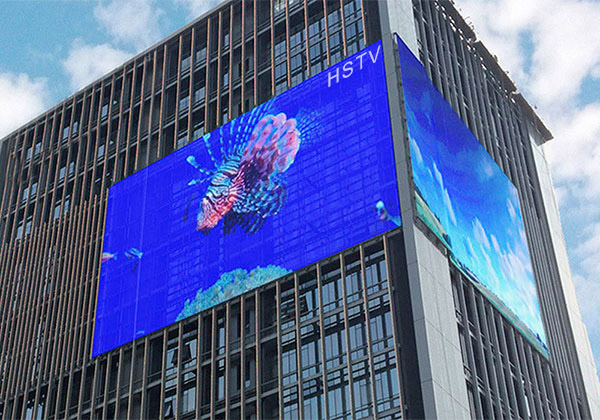

Install on building external glass wall Architectural contour and wall structure does not to be changed due to its lightweight and hollow design. It is also good for lighting. Normal led display screen need to make install structure and will break the structure of building.

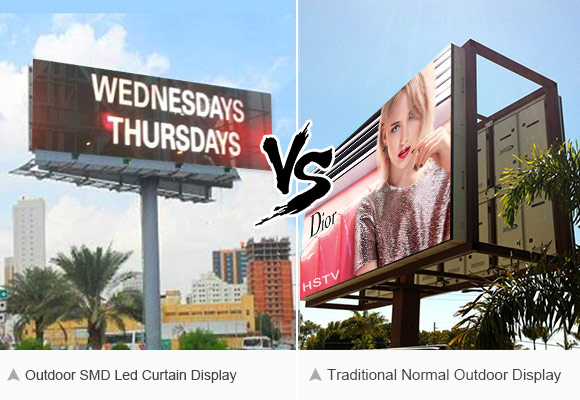

			Compare with outdoor advertising screen Outdoor SMD curtain display can be installed directly on original structure and fast set up. Traditional normal outdoor display need to make extra steel structure to fixed which will cost you more on structure.

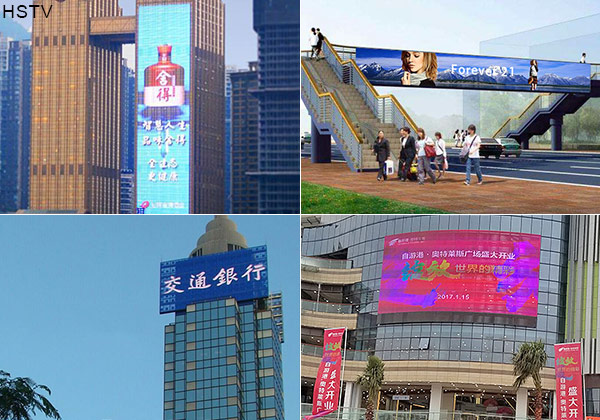

Application Led curtain display is suitable for high temperature, typhoon area, high building roof, glass wall, stadium, shipping center, five-star hotel, flyover etc.
			Our Company Building Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
			Fastest Delivery and Best Online Services Optokingdom provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.
Best After-sale Service If your outdoor SMD curtain display is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Pixel Pitch	Vertical(15.625mm) /Horizontal(7.81mm)
Brand	Kinglight / Nationstar lamp
Type	SMD3535
Arrangement	1R1G1B
Chip parameters	Red:(620-625nm) IV:(500-600mcd)
Chip parameters	Green:(520-525nm) IV:(800-960mcd)
Chip parameters	Blue:(470-475nm) IV:(120-150mcd)
LED Module
Pixel Density	8192 Dots/sqm
Transparency	40%
module layout	Vertical / Horizontal
Module Size	500×125×12mm
module Resolution	64×8dot
module Weight	0.5kg
LED Cabinet
Cabinet Size	1000×500×70mm
Cabinet Resolution	128×32dot
Brightness	>5500cd/sqm
Cabinet Weight	10kg/Panel
IP Rating ( front/back)	IP66
Viewing Angle (H/V)	120^o/120^o
Viewing Distance	>8m
Grey Scale Levels	16bit
Max.Power Consumption	600 W/sqm
Ave.Power Consumption	180W/sqm
Refresh Rate /Driver IC model	>1920Hz
Environment	OUTDOOR
Drive Mode/Driver Position	Static Combined driver board
Display Function	Text, Graphics, Video
Input Voltage	AC110-220V±10%, 50/60Hz
Operating Temp/Humidity	-15^oC~50^oC, 10%~90%
Storage Temp/Humidity	-20^oC~55^oC, 10%~90%
MTBF( mean time between failures)	5000 hours
Operating Life	100, 000 hours
Heat Dissipation	Nature wind cooling, for Led Curtian Display and Decorative Aluminum Led Curtain Screen
Control System
Control Method	Synchronization
Control System	Master Controller, with box, Scan Board
Input Signal	AVI/MPG/MPEG/TXT.etc
PC Operating System	Microsoft Windows 10, XP and Windows 7
Communication Type	Net cable
Software	LED Studio ( HSTV-NOVA)
Language	Chinese, English
Certificate	CE, ROHS, FCC, ISO9001, TUV
Control Card Inputs	DVI, USB
