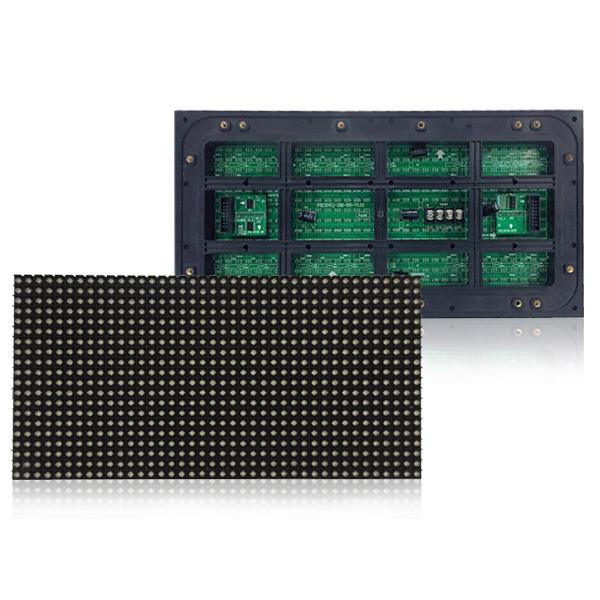

P6.67 Dip LED Display Module

PH6.67 Outdoor DIP F-Color Module 320×160mm #OFDM6

Price:US$ 53.⁰⁰

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

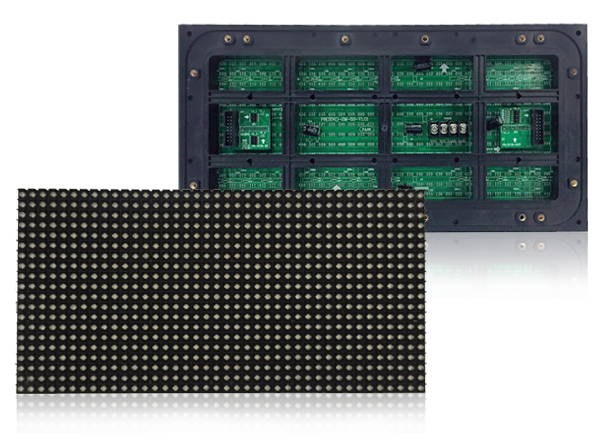

PH6.67 Outdoor DIP Full Color Module PH6.67 Outdoor DIP Full Color Module is a suitable module for outdoor advertising. Its strong body and shield protects it from damage. Rectangle module makes it easy to transport and install. High resolution screen guarantees best quality output

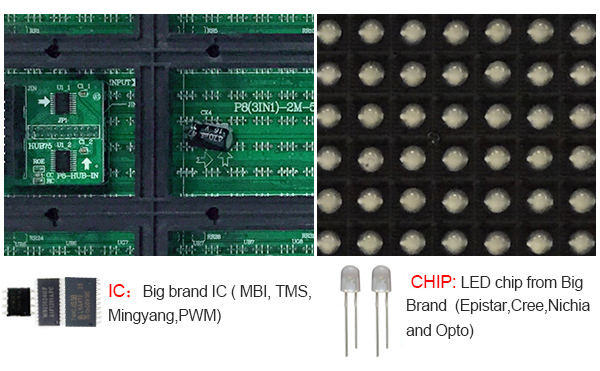

			Brand Names you can Trust We purchase the chips, ICs and material from the most renowned vendors like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan), MBI, TMS, PWM and MingYang. Best quality material is used to manufacture the products. Extra care is taken while assembling the products. So you can always trust the quality of this product
Careful Product Installation Each and every single part of the PH6.67 DIP LED Display Module is watchfully installed by our engineers. Also, great care is taken in material selection and product assembling. This ensure the ultimate product you get are better than your expectations
			Open Price We provide greater cost effective led display module on the ex-factory price approximately 70 percent less than the price you get from distributor.

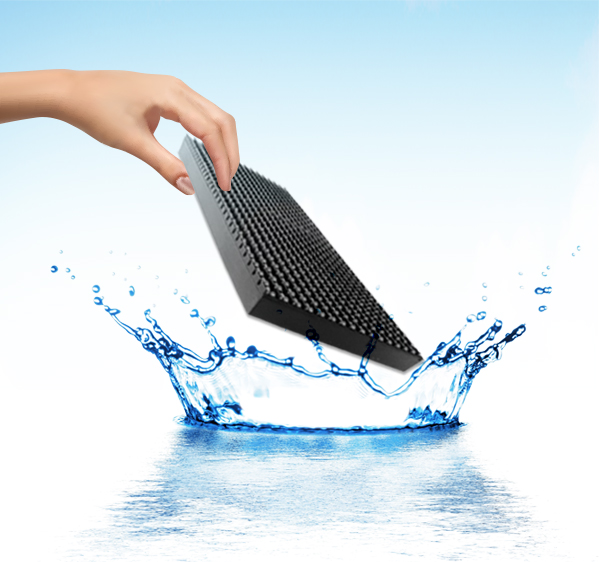

Umbrella Function of Each Module The outdoor LED screen module is manufactured with great care and precision. Latest technology is used to guarantee best quality. Front IP65 waterproof guard works like an umbrella to protect the screen from rain and dust. Can work in any weather
			High Gray Scale - Better Picture The PH6.67 DIP LED Display Module is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and gray scale ensures the picture quality remains seamless
Low Power Consumption - Environment Friendly The high-tech transformer used in the module can change AC-220/110V input voltage into DC-5V output ensuring low power consumption. So it saves on your electricity bills, it saves energy and becomes environment friendly

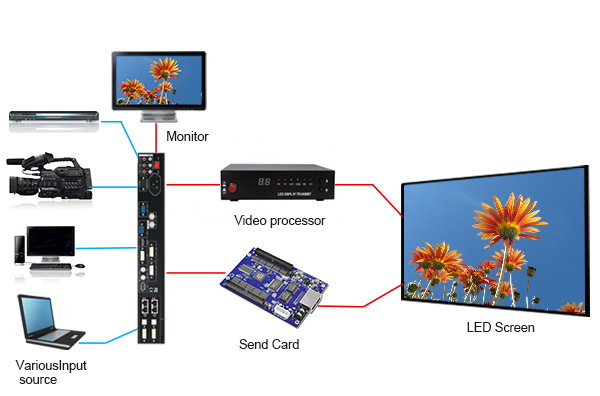

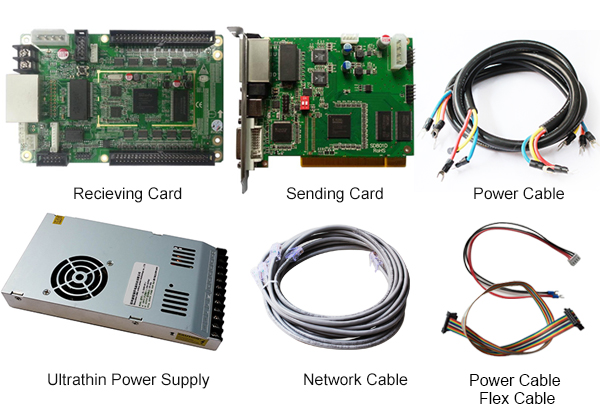

			Standard Control Process for Perfect Performance The video process can receive different input signals and its video integrate machine works with sending card to create complete image. It's intelligent remote control lets you manage everything very conveniently. Receives synchronous message on the screen, getting everything under control

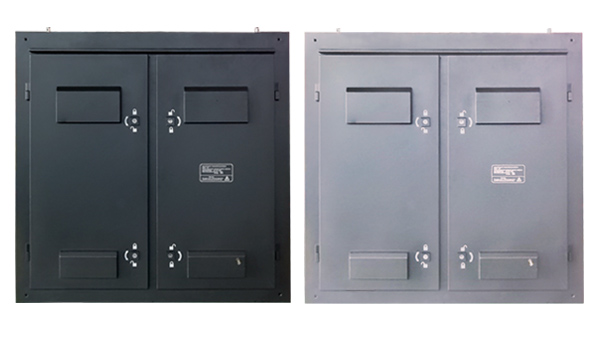

Module Supports Different Cabinets The LED display module is perfectly sized to support different cabinets. Its die0casting aluminum cabinet is strong and lightweight. The module can be instalLED on any aluminum cabinet or common cabinet. Flexible and easy to install

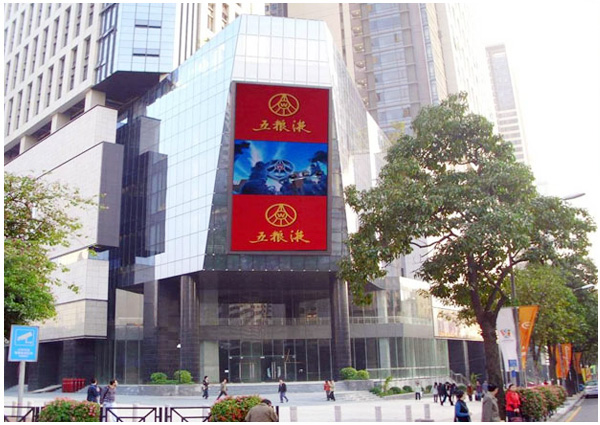

			Get Every Detail in Picture We spend some time with every detail of the PH6.67 DIP LED Display Module, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen
Factory real shot Focus in every single detail of product. Keep improving the quality.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	DIP(3 in 1)570
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(2100-2200mcd)
Chip parameters	Green (520-525nm) IV:(4200-4300mcd)
Chip parameters	Blue (470-475nm) IV:(700-750mcd)
LED Module
Pixel Pitch	6.67mm
Module Size	320×160mm
Module Resolution	48×24=1152(Dots)
Module Weight	0.6kg
Module Input Interface	HUB-75
LED Cabinet
Pixel Density	22477 Dots/㎡
Frame Frequency	no less than 60 frame/sec
Brightness	≥5500cd/㎡
Input Voltage	AC110-220V±10%,50/60Hz
Viewing Angle	110(Horizontal),55(Vertical)
Output Voltage	DC-5V,40A/60A/80A
Nearest Viewing Distance	10m
Color Grayscale	16bit
Gray Scale per Color	65536 level
Power Consumption (Max)	1000 w/㎡
Color Processing	R(1024)×G(1024)×B(1024)
Power Consumption (Average)	300 w/㎡
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional
Display Function	Text,Graphics,Video
MTBF( mean time between failures)	5000 hours
Refresh Rate	≥1000Hz
Life-span	100,000 hours
Operating Temp/Humidity	-15℃~50℃, 15%~85%RH
Protection Level(front/back)	IP65/IP54
Storage Temp/Humidity	-30℃~55℃, 15%~85%RH
Malfunction Dot Rate	less than 0.0001
Drive Mode/Driver Position	Constant driving 1/6 Scan,Combined diver board
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card,Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio ( HSTV-linsn )
Communication Type	Net cable,3G,WIFI(Sold separately)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate	CE,ROHS,FCC,ISO9001,TUV
Control Card Input	DVI,USB,RJ45,HDMI(Sold separately)
