Outdoor Front / back Maintenance Led display

PH3.91 outdoor Rental Front / back Maintenance cabinet 500×500mm #HSTV-R3.91

Price:US$ 262.⁰⁰

Model No:: A-Epistar lamp B-Kinglight lamp C-Nationstar lamp

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

PH3.91 outdoor Rental Front / back Maintenance cabinet 500×500mm

Thanks for watching our product video, more product introduction, install and operate teaching lesson welcome to visit our "Video" webpage or our YouTube channel "Optokingdom LED".

The advantages of this product Beautiful modular appearance, reasonable handle and handle design for easy assembly and lifting. The reasonable distribution of functional interfaces and angles makes the module more beautiful and generous.

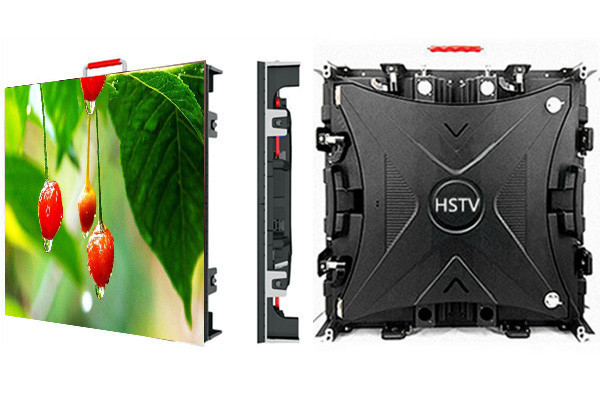

			Modular design of box Flexible, easy and fast assemble structure, cabinet modular design which is very light and thin，the cabinet is equipped with four locks for quicker installation and precise assembly，high flatness level
External test switch and signal lamp That is, the power supply and the back cover of the box can be plugged in, and the signal indicators and receiving card test switches on the outside of the cabinet.
			Four High Technologies - Point-to-Point Correction The display features four high technologies and point-to-point correcting. High refresh rate, high gray scale level, high definition and high contrast rate present excellent quality picture output in every condition.
Handle design reasonable handle design, the module will not be blocked by the fixed backing when assembled, it is more convenient to install
			High IP Rating Safe and Reliable The special waterproof design of P3.91 LED Screen protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating ensures great quality outputs in every condition.
Strict Aging Test All products undergo a strict aging test. The 72 hours aging test is conducted without die lamp, dim lamp, color difference and mosaic. The product is introduced in the market only if it passes the aging test, making sure the best quality is ensured for you.

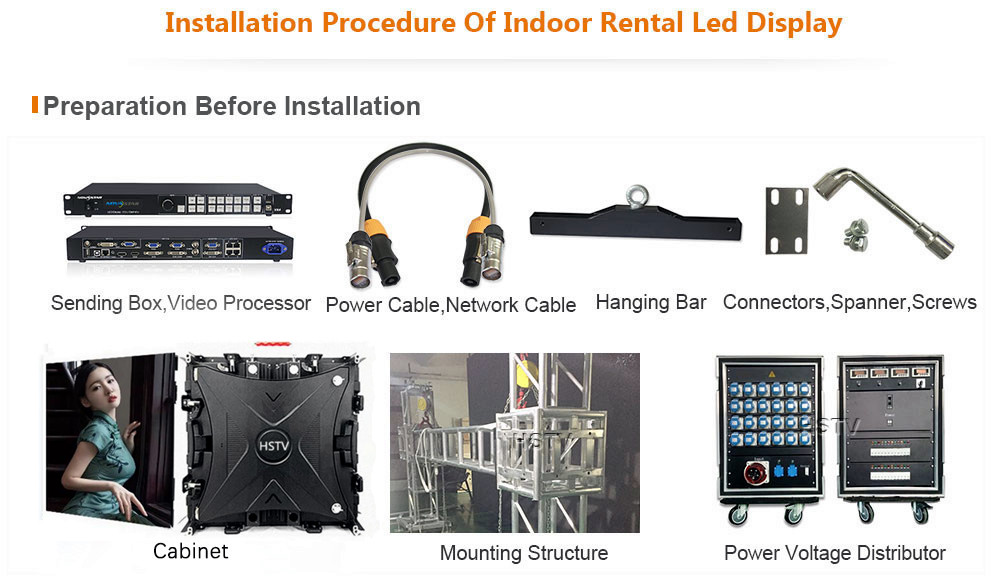

			Diversified installation structure The cabinet can be used for lifting, floor standing and styling installations,cabinet system back box adopted modular design improve the change efficiency, much more convenient for assemble,all series of cabinets can be customized with 20 degree curved screen, assemble curved led screen

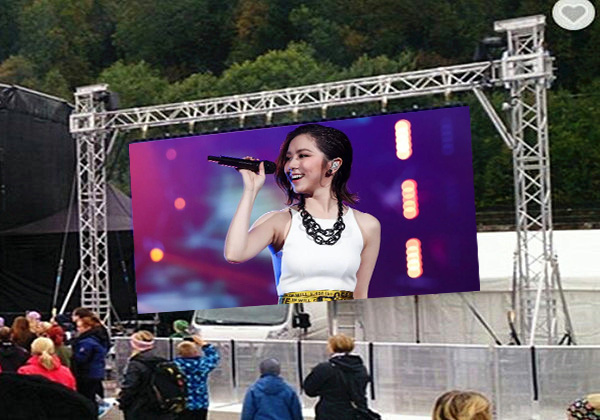

Application The P4.81 LED Screen can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration, video displays, educational purposes and much more.




Our Company Building Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
			Best Quality Guaranteed Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
Best After-sale Service If your Outdoor LED Video Wall is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
			Fastest Delivery and Best Online Services OptoKingdom provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	SMD1921
Brand	Epistar lamp/ Kinglight lamp/ Nationstar lamp
Arrangement>	1R1G1B
Chip parameters	Red(625-635nm) IV:(210-250mcd)
Chip parameters	Green(525-530nm) IV:(650-800mcd)
Chip parameters	Blue(465-470nm) IV:(150-170mcd)
LED Module
Pixel Pitch	3.91mm
Module Size	250×250mm
Module Resolution	64×64=4096(Dots)
Module Weight	0.8kg
LED Cabinet
Pixel Density>	65410 Dots/sqm
Frame Frequency	no less than 60 frame/sec
Cabinet Resolution	128×128=16384(Dots)
Input Voltage	AC110-220V±10%, 50/60Hz
Cabinet Dimension(WHD)	500×500×95mm
Output Voltage	DC-4.5V, 40A
Module Quanty /Cabinet	2×2=4(Pcs)
Color Grayscale	16bit
Gray Scale per Color	65536 level
Cabinets Material	Aluminum-magnesium alloy Cabinet
Color Processing	R(1024)×G(1024)×B(1024)
Cabinet Weight	8kg
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
Brightness	>5500 -6500cd/sqm
MTBF( mean time between failures)	10000 hours
Viewing Angle	120(Horizontal), 120(Vertical)
Life-span	100, 000 hours
Nearest Viewing Distance	5m
Protection Level(front/back)	IP64
Power Consumption (Max)	800 w/sqm
Power Consumption (Average)	260 w/sqm
Malfunction Dot Rate	less than 0.0001
Working Temperature	-30^oC-60^oC
Display Function	Text, Graphics, Video
Humidity	15%-85%
Refresh Rate	>3840Hz
Drive Mode/Driver Position	Constant driving 1/8 Scan, Combined diver board
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI / MPG / MPEG / TXT.etc
Control System	Sending Card, Receiving Card, Receiving HUB
PC Operating System<	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio(HSTV-Nova )
Communication Type	Net cable; 4G, WIFI(Sold separately)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German
Certificate	CE, ROHS, FCC, ISO9001, TUV
Control Card Input	DVI, USB; RJ45, HDMI(Sold separately)
