Name: PH1.86 COB Led Display Screen 640×480 mm
Brand: HS
Price: 308.00 USD
Availability: InStock
Rating: 0 (0 reviews)

PH1.86 COB Led Display Screen 640×480 mm #COBP1.86

Price:US$ 308.⁰⁰

Model No:: Flip Chip COB

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

Professional Fine Pitch LED Video Wall Solution The P1.86 Mini COB LED display uses advanced Mini flip chip technology to improve heat dissipation and reduce dead pixel risk. Compared with traditional fine pitch LED displays, the module runs more stable during long-hour operation, which is especially important for command centers, studios, and conference room LED video wall projects.

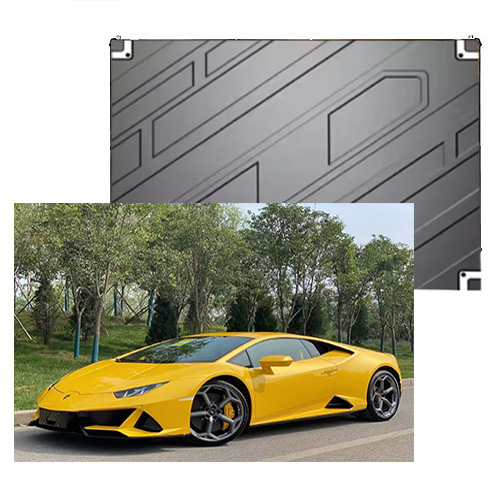

			10000:1 Contrast Ratio with HDR Picture Quality This Mini COB LED display delivers a 10000:1 ultra-high contrast ratio with HDR image performance, allowing deeper blacks and clearer image details. For close-viewing LED video wall applications, the display provides more natural color transition and better visual depth.
Anti-Collision COB Surface Protection Unlike traditional small-pitch LED modules, the COB encapsulated surface protects the LEDs directly. Even during installation or maintenance, accidental impact is less likely to damage the LED chips, helping reduce maintenance risk and improving long-term reliability.Dust and fingerprints can be cleaned easily without affecting display performance, which is practical for high-end indoor LED display projects requiring a clean visual environment.

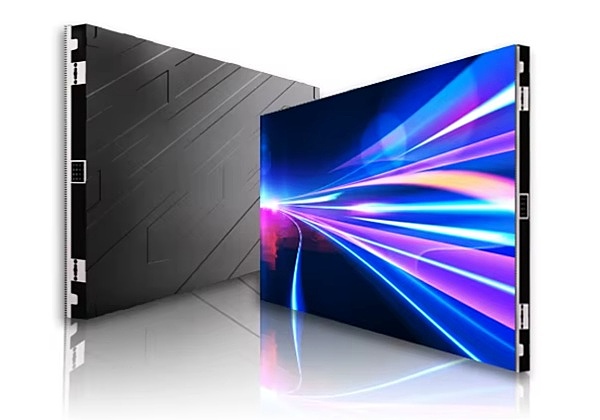

			Universal 320×160mm LED Module Design The P1.86 LED module adopts a standard 320×160mm structure with universal mounting holes, making cabinet matching and future maintenance easier for engineering contractors. Standardized module design also helps reduce spare part management complexity.
Micron-Level Precision for Seamless LED Video Walls High-precision manufacturing ensures excellent cabinet flatness and accurate module alignment. Adjustable cabinet structure supports micron-level installation tolerance, helping achieve seamless splicing for fine pitch LED video wall systems.

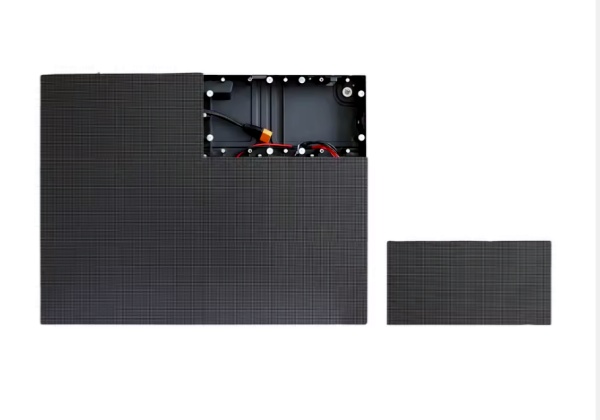

			Fast Front Maintenance and Easy Installation The magnetic front service COB LED module allows quick, tool-free maintenance directly from the front. Each module can be removed or replaced within one minute, minimizing downtime during installation or servicing. The lightweight aluminum cabinet simplifies structure assembly, making the indoor LED display installation process efficient and reliable — a practical benefit for system integrators and project contractors.

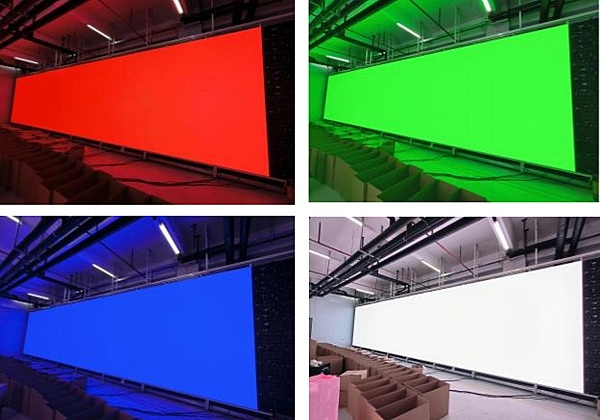

72-hour aging test and comprehensive inspection The Haisheng LED factory is committed to providing high-quality LED displays, backed by strict production and testing processes. Each display module is carefully crafted and assembled by skilled technicians to ensure flawless performance. Our professional testing team checks color uniformity, brightness, signal stability, and waterproof performance. Only after passing these tests will the display be approved for shipment.

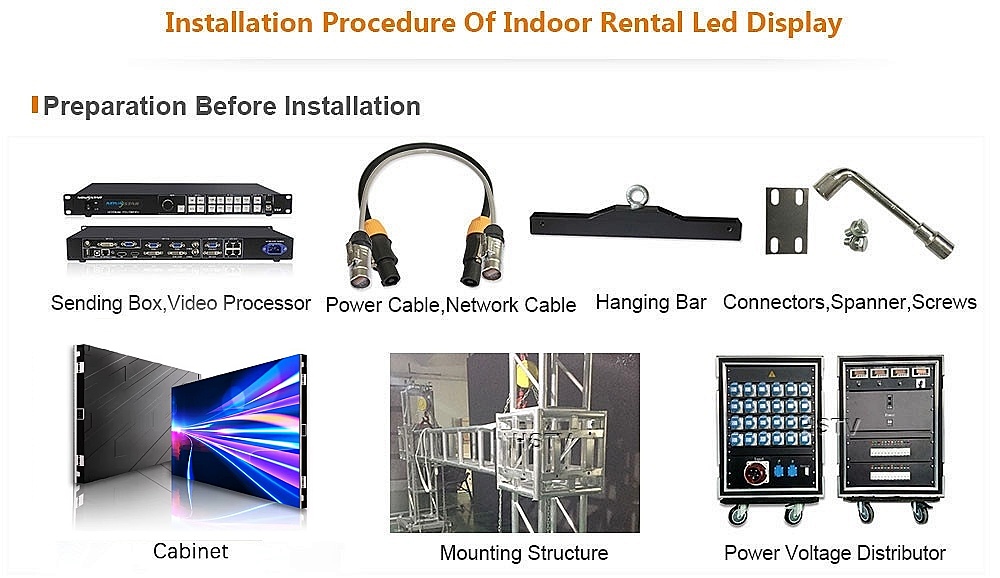

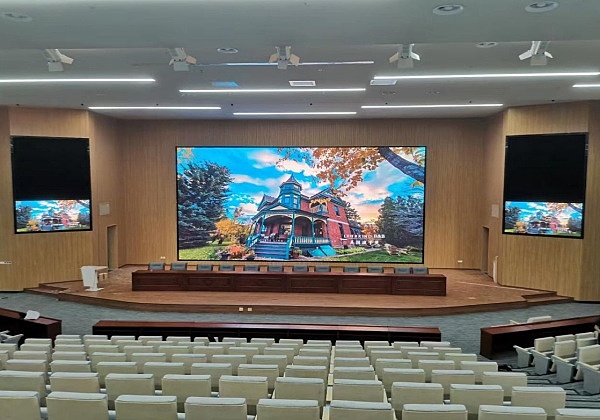

			Compatible with multiple installation methods Supports wall-mounted, hoisted, embedded installation and other methods, which can be flexibly selected according to different venue spaces and usage requirements, facilitating on-site construction and installation by professional engineering teams, and adapting to diverse professional application places such as conference rooms, exhibition halls, and airport terminals.
Factory Manufacturing with Strict Quality Control As a professional LED display manufacturer, we focus on production consistency and long-term product stability. From LED chip selection to module aging tests, every Mini COB LED module is tested to ensure reliable performance for professional LED video wall projects.

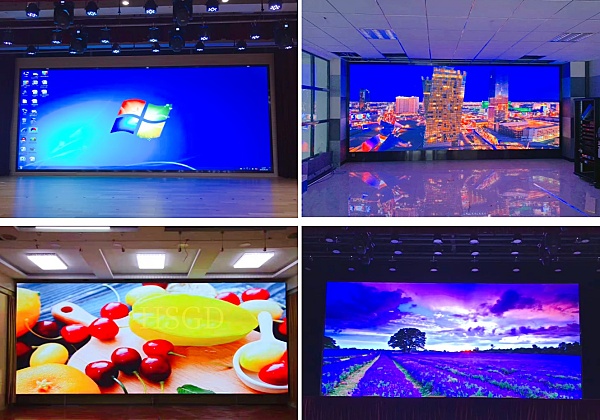

			Optimized for Long-Term Fine Pitch LED Display Projects The P1.86 Mini COB LED display is developed for professional indoor environments where image quality and operational stability are critical. With ultra-fine pixel pitch, high contrast performance, and anti-collision protection, the display delivers a more reliable solution for close-viewing LED video wall applications requiring continuous daily operation.



One Price for All In single price, you get the complete kit which includes the LED display, cabinet, control system and other packages. It saves you a lot of money. Also, we replace the faulty accessories without any cost if your product is in warranty period.
			Our company building Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality product that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
			Best After sale service If your product is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
Fastest Delivery and Best Online Services OptoKingdom provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	Flip Chip COB
Brand	Nationstar
Arrangement	1R1G1B
Chip parameters	Red (625-630nm) IV:(45-50mcd)
Chip parameters	Green (523-526nm) IV:(140-165mcd)
Chip parameters	Blue (470-473nm) IV:(25-30mcd)
LED Module
Pixel Pitch	1.86mm
Module Size	320×160 mm
Module Resolution	172×86=14792(Dots)
Module Weight	0.6 kg
LED Cabinet
Pixel Density	288906 Dots/sqm
Frame Frequency	no less than 60 frame/sec
Cabinet Resolution	480× 270=129600(Dots)
Input Voltage	AC110-220V±10%, 50/60Hz
Cabinet Dimension(WHD)	640×480×58 mm
Output Voltage	DC-5V, 40A/60A/80A
Module Quanty /Cabinet	2×3=6(Pcs)
Color Grayscale	16bit
Gray Scale per Color	65536 level
Cabinets Material	Aluminum alloy Cabinet
Color Processing	R(1024)×G(1024)×B(1024)
Cabinet Weight	7 kg/PCS
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
Brightness	>600cd/sqm
MTBF( mean time between failures)	5000 hours
Viewing Angle	160(Horizontal), 160(Vertical)
Life-span	100, 000 hours
Nearest Viewing Distance	3m
Protection Level(front/back)	IP54
Power Consumption (Max)	400 w/sqm
Malfunction Dot Rate	less than 0.0001
Power Consumption (Average)	150 w/sqm
Operating Temp/Humidity	0^oC-45^oC,15%~85%RH
Display Function	Text, Graphics, Video
Storage Temp/Humidity	-15^oC-50^oC,10%~85%RH
Refresh Rate	>3840Hz
Contrast Ratio	10000:1
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card, Receiving HUB
PC Operating System	Microsoft Windows 10 , Windows 11
Software	LED Studio(HSTV-Nova)
Communication Type	Net cable; 4G, WIFI(Sold separately)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate	CE, ROHS, FCC, ISO9001, TUV
Control Card Input	DVI, USB, RJ45, HDMI(Sold separately)
