Name: PH10 Outdoor F-Color Module 160×160mm
Brand: HS
Price: 12.88 USD
Availability: InStock
Rating: 0 (0 reviews)

PH10 Outdoor F-Color Module 160×160mm #OFDM10-A

Price:US$ 12.⁸⁸

Model No:: OFDM10-A

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

Energy-saving LED Panel PH10 Low power consumption allows you to save on your electricity bills and help environment. 10mm Pixel pitch and full-color module presents stunning display. An ideal choice for outdoor advertising.

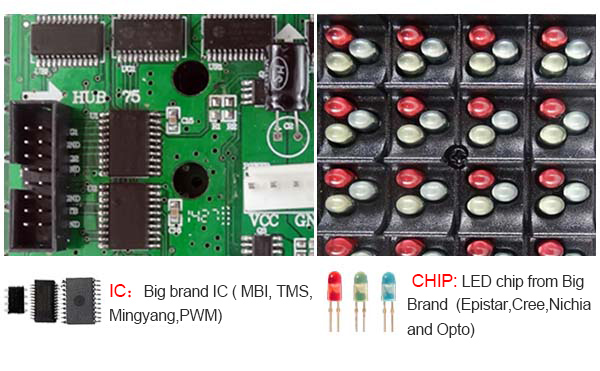

			Best Quality Material, Modules and Chips The material, modules and chips are selected with great care. We purchase the material from reputed vendors. Chips are purchased from big brands like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan). ICs are bought from MBI, TMS, PWM and MingYang. These manufactures are known for their great quality products.
High-performing Components at Best Price All components used to manufacturer this Energy Saving PH10 LED Display Module are purchased from most reputed suppliers, ensuring utmost quality of the module. We guarantee best price for the product making sure it remains in your budget.

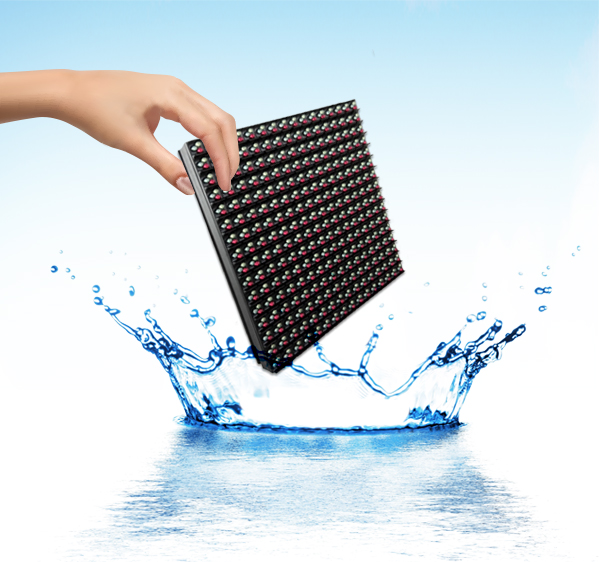

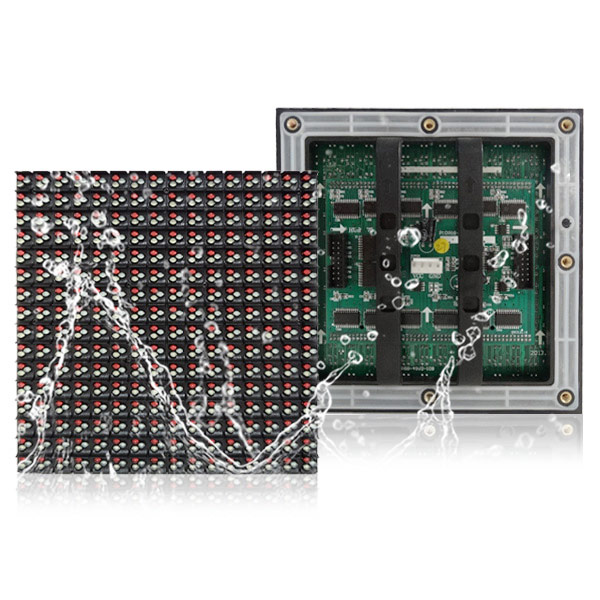

			High IP Rating IP65 - Safe and Reliable The special waterproof design of Energy Saving PH10 LED Display Module protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating IP65 ensures great quality outputs in every condition.

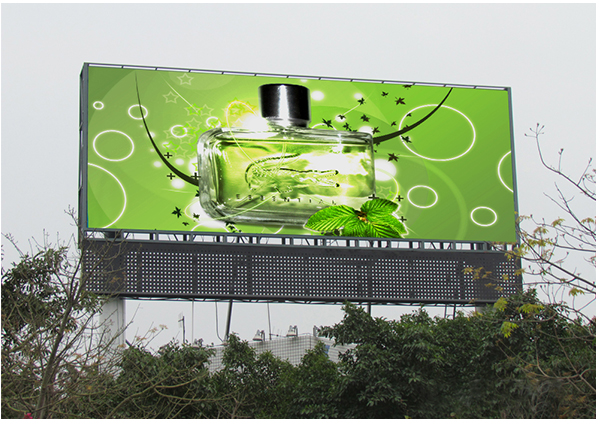

High Brightness, Better Quality Installing at outdoor places require the displays to produce high brightness outputs. The high brightness and high definition features of the Energy Saving PH10 LED Display Module ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.
			Open Price In the past, ordinary people buy in shopping mall with a highest price, shopkeeper buy from distributor save 10%. big companies purchase by importer or exporter. Today! You can purchase from us with a lowest price and quickly delivery.
Low Power Consumption - Environment Friendly The high-tech transformer used in the module can change AC-220/110V input voltage into DC-5V output ensuring low power consumption. So it saves on your electricity bills, it saves energy and becomes environment friendly.

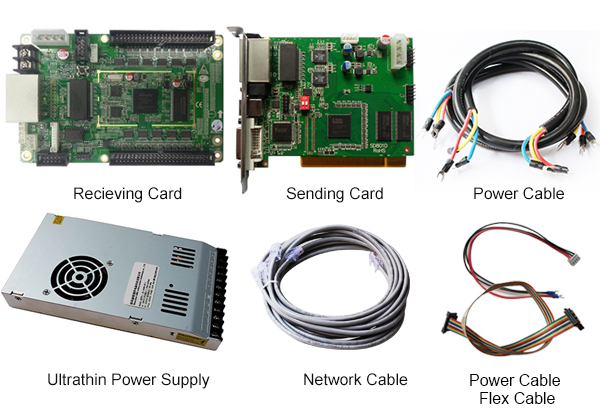

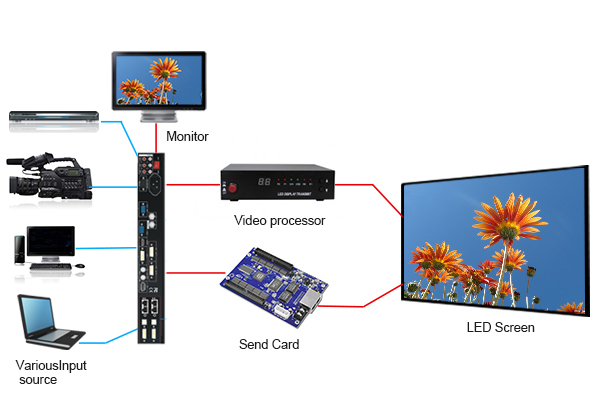

			Standard Control Process for Perfect Performance The video process can receive different input signals and its video integrate machine works with sending card to create complete image. It's intelligent remote control lets you manage everything very conveniently. Receives synchronous message on the screen, getting everything under control.

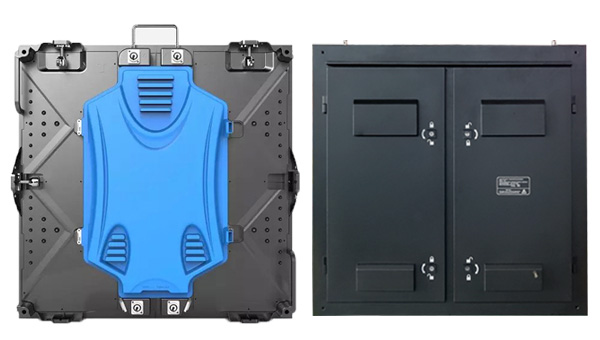

Module Supports Different Cabinets The LED display module is perfectly sized to support different cabinets. Its die casting aluminum cabinet is strong and lightweight. The module can be instalLED on any aluminum cabinet or common cabinet. Flexible and easy to install.

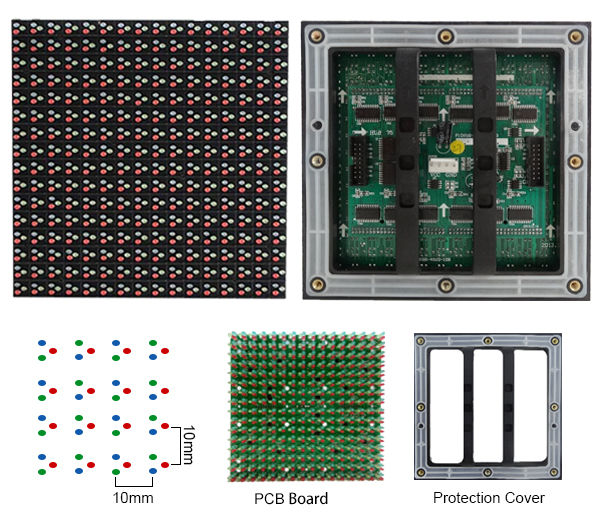

			Get Every Detail in Picture We spend some time with every detail of the Energy Saving PH10 LED Display Module, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen.
Factory real shot Focus in every single detail of product. Keep improving the quality.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

Your Recent History

Triple-color WIFI Card
US$ 19.50

Add to cart

Quick Index: A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0-9 Sitemap Mobile Site

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	DIP346
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(1000-1200mcd)
Chip parameters	Green (520-525nm) IV:(2000-2500mcd)
Chip parameters	Blue (470-475nm) IV:(500-650mcd)
LED Module
Pixel Pitch	10mm
Module Size	160×160mm
Module Resolution	16×16=256(Dots)
Module Weight	0.47kg
Module Input Interface	HUB-75
LED Cabinet
Pixel Density	10000 Dots/㎡
Frame Frequency	no less than 60 frame/sec
Brightness	≥5500cd/㎡
Input Voltage	AC110-220V±10%,50/60Hz
Viewing Angle	110(Horizontal),55(Vertical)
Output Voltage	DC-5V,40A/60A/80A
Nearest Viewing Distance	13m
Color Grayscale	16bit
Gray Scale per Color	65536 level
Power Consumption (Max)	600 w/㎡
Color Processing	R(1024)×G(1024)×B(1024)
Power Consumption (Average)	200 w/㎡
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional
Display Function	Text,Graphics,Video
MTBF( mean time between failures)	5000 hours
Refresh Rate	≥1000Hz
Life-span	100,000 hours
Operating Temp/Humidity	-15℃~50℃,, 15%~85%RH
Protection Level(front/back)	IP65/IP54
Storage Temp/Humidity	-30℃~55℃,, 15%~85%RH
Malfunction Dot Rate	less than 0.0001
Drive Mode/Driver Position	Constant driving 1/4 Scan，Separated diver board
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card,Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio ( HSTV-linsn )
Communication Type	Net cable，3G、WIFI（Sold separately)
Language	Chinese、Traditional Chinese、English、French、Japanese、Russian、Thai、Spanish、Polish、Italian、Portuguese、Turkish、Dutch、Greek、Bulgarian、Romanian、Arabic、Korean、German
Certificate	CE,ROHS,FCC,ISO9001，TUV
Control Card Input	DVI,USB,RJ45、HDMI（Sold separately)
