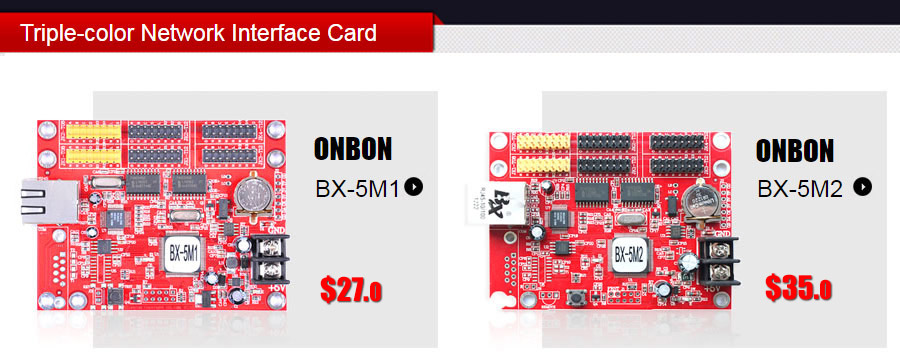

Triple-color Network Interface Card

Triple-color Network Interface Card #ONBON-TNC

Price:US$ 23.⁰⁰

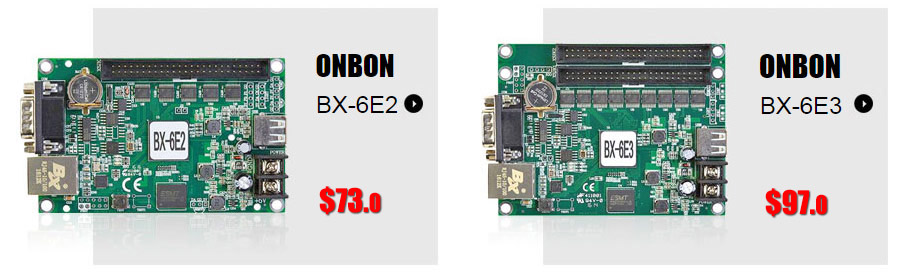

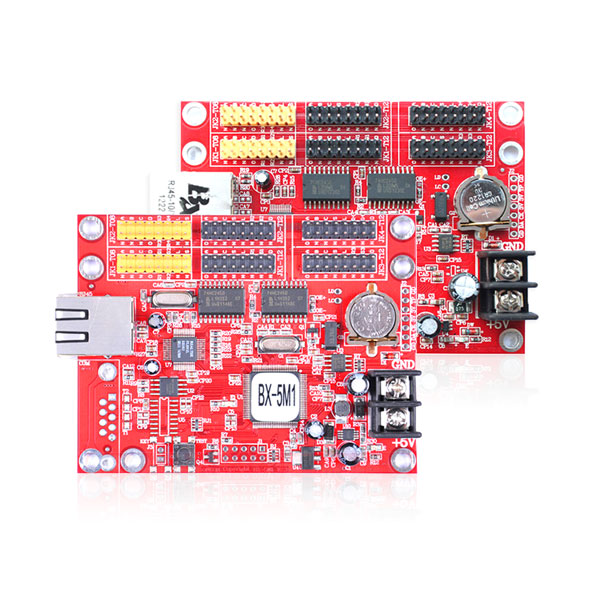

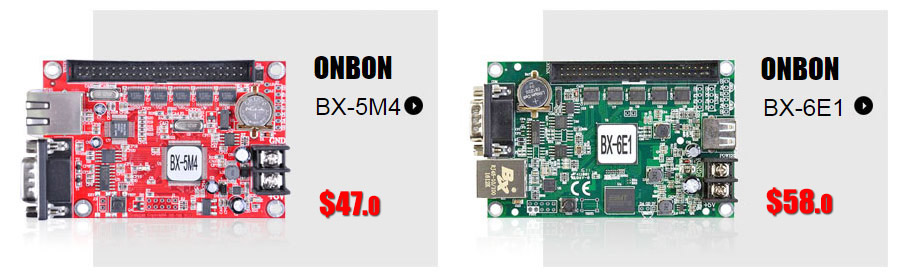

Model No:: ONBON-BX-6E3 ONBON-BX-6E2 ONBON-BX-6E1 ONBON-BX-5M4 ONBON-BX-5M2 ONBON-BX-5M1

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

led display receiving cards sending card

receiving card sending card control card of led display

Have you found out the suitable led card for your project? More advises of purchasing led sending card please contact our online service! Enjoy your shopping moment!

Model Number	BX-5M1	BX-5M2	BX-5M4	BX-6E1	BX-6E2	BX-6E3
Brand	ONBON	ONBON	ONBON	ONBON	ONBON	ONBON
Operating System	Windows2000、NT、XP、Vista、Win7
Control Range	Single Color：2048×16, 1024×32, 672×48, 512×64；Triple Color：1024×16, 512×32, 336×48, 256×64	Single Color：3200×16, 3200×32, 2688×48, 2048×64；Triple Color：3200×16, 2048×32, 1344×48, 1024×64	Single Color：3200×16, 3200×32, 2720×48, 2048×64, 1632×80, 1344×96, 1152×112, 1024×128, 896×144, 800×160, 736×176, 672×192, 608×208, 576×224, 544×240, 512×256；Triple Color：3200×16, 2048×32, 1360×48, 1024×64, 816×80, 672×96, 576×112, 512×128, 448×144, 400*160, 368×176, 336×192, 304×208, 288×224, 272×240, 256×256	Single Color：2048×256, 1344×192；Triple Color： 2048×128, 1344×192	Single Color：4096×256, 2720×384；Triple Color： 4096×128, 2720×192	Single Color：8192×512, 5044×768；Triple Color： 8192×256, 5440×384
Onboard Interface	Two 08 interface, four 12 interfaces		Need an adapter plate
Drive Mode	1/16、1/8、1/4、1/2、Static
Communication Interface	USB、RJ45
Communication Distance	HSYV-5E﹤100m
Display Color	Triple Color (Red、Green、Yellow)
Number of Programs	128
The Number of Regions	24 regions
Display Content	Text, images, animation, countdown,timing, temperature (requires external module), humidity, clock
Storage Capacity	2MB
Display Method	Support turn playback, timed long play, support segment by date, time, week broadcast regularly
Screen Switch	Support machine timer switch
Dimming	Support
Working Voltage	3.5V-6.5V
Working Temperature	-40℃～80℃
Humidity	15%～85%
Power Consumption	≤2W
Language	English, Simplified Chinese, Traditional Chinese, Korean, Japanese, French, Russian, Thai, Arabic, German, Spanish, Kazakh, Portuguese, Vietnamese, Croatian, Turkish, Hebrew, Persian, Romania , Bulgarian, Polish
Supporting Software	LedshowTW2015
Certificate	CE,ROHS,FCC,ISO9001，TUV
