PH16 LED Screen for Stadium Advertising

PH16 DIP Sport Field LED Screen 1024×1024mm #SD16

Price:US$ 875.⁰⁰

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

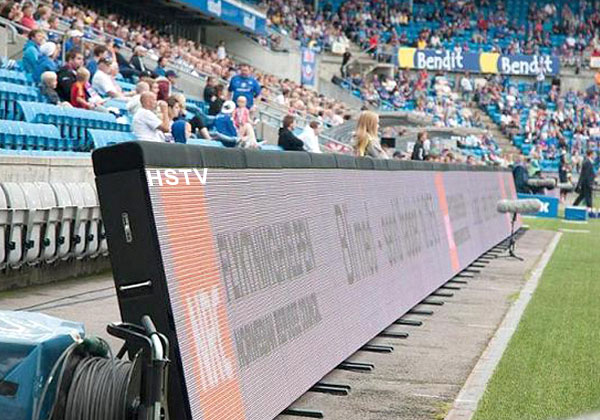

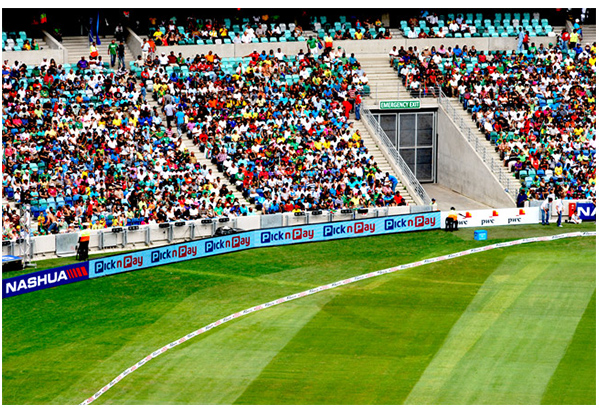

PH16 Perimeter Led Displays And Perimeter Advertising The stadium LED screen is ideal for places of with huge crowd. Its high resolution picture and wide viewing angle ensure best quality pictures and videos to every corner of the stadium. Stable body protects the display from any damage, even high speed ball.
			Hot Product in 2017 The PH16 LED Screen for Stadium Advertising has remained the hottest product in 2017 loved by thousands of people. With its advanced features, multiple usage and affordable prices, it is being purchased by various business owners. It is listed amongst the most sold products of 2017.

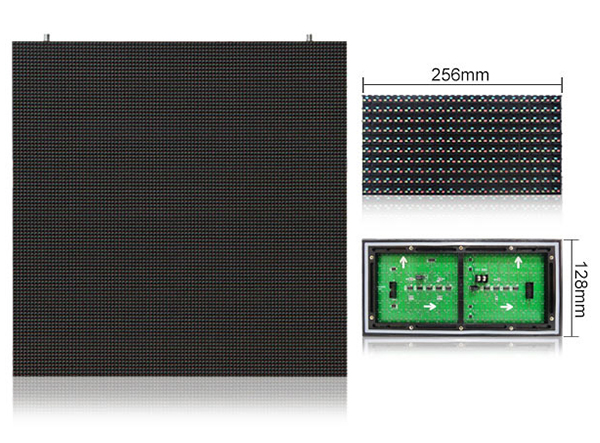

Best Quality Material, Modules and Chips The material, modules and chips are selected with great care. We purchase the material from reputed vendors. Chips are purchased from big brands like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan). ICs are bought from MBI, TMS, PWM and MingYang. These manufactures are known for their great quality products.
			Clear image without delay Adopt high efficiency optical fiber transmission system which can reduce the signal delay in long distance transmission to ensure the consistency of image.

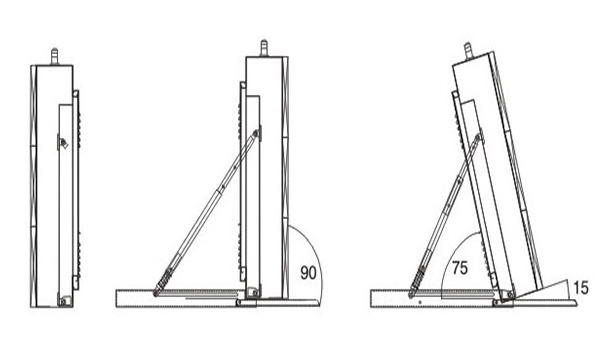

Adjustable angel makes good display effect Features independent support structure, can be adjusted the tilt angle according to the needs of viewing requirement, to achieve the best display.
			High Refresh Rate The PH16 LED Screen for Stadium Advertising is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of 1000Hz, producing best quality outputs in form of pictures, videos and texts.

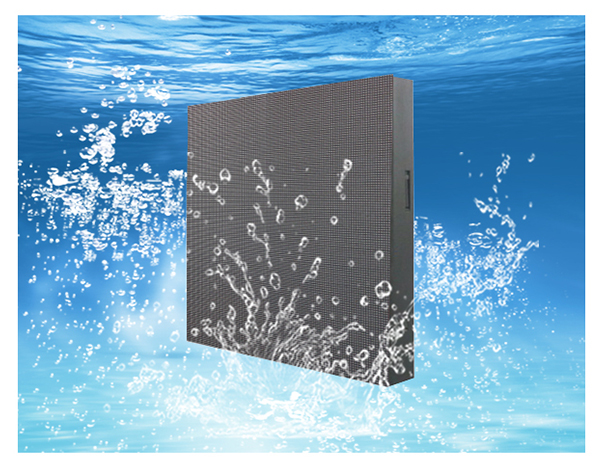

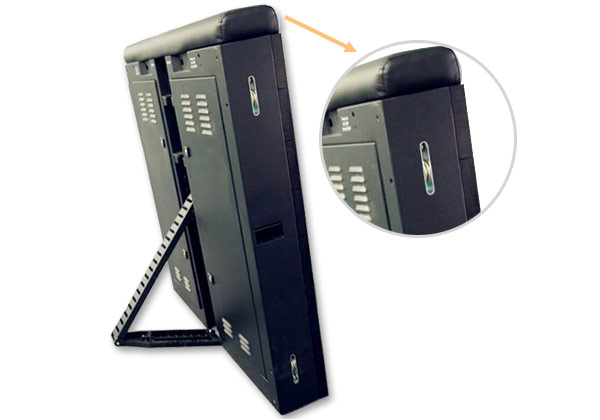

Better Protection The display features a Front IP66 waterproof grade which protects the display from any damage. A dedicated guard prevents the screen from any damage and environmental effects. The screen will remain harmless in every condition and in every weather.

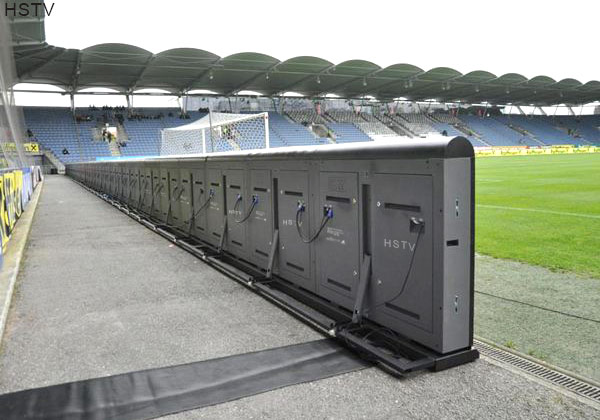

			Best option of outdoor advertising Strong reliability and low failure rate. Cable connects from the inner of cabinet which make it more simple and generous. It can be customized according to clients need.
One Price for All In single price, you get the complete kit which includes the LED display, cabinet, control system and other packages. It saves you a lot of money. Also, we replace the faulty accessories without any cost if your P16 LED Screen for Stadium Advertising is in warranty period.
			Our Company Building Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
			Fastest Delivery and Best Online Services OptoKingdom provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.
Best After-sale Service If your P16 LED Screen for Stadium Advertising is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamps
Type	DIP346
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(1000-1200mcd)
Chip parameters	Green (520-525nm) IV:(2000-2500mcd)
Chip parameters	Blue (470-475nm) IV:(500-650mcd)
LED Module
Pixel Pitch	16mm
Module Size	256×128mm
Module Resolution	16×8=128(Dots)
Module Weight	0.75kg
LED Cabinet
Pixel Density	3906 Dots/sqm
Frame Frequency	no less than 60 frame/sec
Cabinet Resolution	64×64=4096(Dots)
Input Voltage	AC110-220V±10%, 50/60Hz
Cabinet Dimension(WHD)	1024×1024×185mm
Output Voltage	DC-5V, 40A/60A/80A
Module Quanty /Cabinet	4×8=32(Pcs)
Color Grayscale	16bit
Gray Scale per Color	65536 level
Cabinets Material	Steel
Color Processing	R(1024)×G(1024)×B(1024)
Cabinet Weight	54kg
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
Brightness	>8000cd/sqm
MTBF( mean time between failures)	5000 hours
Viewing Angle	110(Horizontal), 55(Vertical)
Life-span	100, 000 hours
Nearest Viewing Distance	19m
Protection Level(front/back)	IP66/IP54
Power Consumption (Max)	800 w/sqm
Malfunction Dot Rate	less than 0.0001
Power Consumption (Average)	250 w/sqm
Operating Temp/Humidity	-15^oC-50^oC,15%~85%RH
Display Function	Text, Graphics, Video
Storage Temp/Humidity	-30^oC-55^oC,15%~85%RH
Refresh Rate	>1920Hz
Drive Mode/Driver Position	Static Combined driver board
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card, Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio ( HSTV-NOVA )
Communication Type	Net cable; 3G, WIFI(Sold separately)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic，Korean，German
Certificate	CE, ROHS, FCC, ISO9001, TUV
Control card inputs	DVI, USB; RJ45, HDMI(Sold separately)
