Name: PH4.6 SMD outdoor full-color Double-sided billboard led display 600mm×600mm
Brand: HS
Price: 798.00 USD
Availability: InStock
Rating: 0 (0 reviews)

PH4.6 SMD outdoor full-color Double-sided billboard led display 600mm×600mm #szp4.6

Price:US$ 798.⁰⁰

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

PH4.6 SMD outdoor full-color Double-sided billboard led display 600mm×600mm The product size incorporates the lucky design concept of ancient Chinese Feng Shui.
			latest double-sided video circular advertising signs. Product control mode (optional): Wifi, USB, 4G, mobile phone control,mobile phone control APP system is easy to operate.

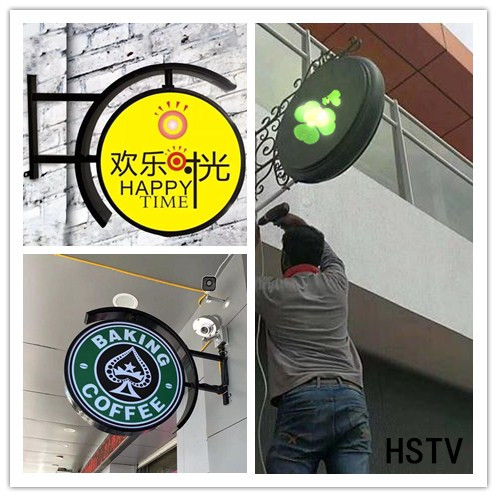

application chain locks, supermarkets, shopping malls, hotels, bars, etc.
			display methods Support text, image, video and other display methods.
Big brand power supplier Special waterproof design protect your product out of water , the high quality is worthy of trust.The switch power suppliers are with international famous brand configuration, high stability and long lifespan.
Outlook of our company building Our products have passed CE, FC, RoSH and SGS certification and so on. We promise to offer qualified product to every customer.
			Quality is the most important Our quality principle is "Total Quality Management,ContinualImprovement, Excellent Service,Quick Response" In that way,every detail in production can get Quality Assurance.
Best online service and fast delivery Fast response online service, you can leave a message to us at any time we will reply our customer question as soon as possible. Only five minutes take, drive from our company to airport and port. We also cooperate with several famous logistics companies which can ship goods to all over the world. it is also ensure fast and safe delivery.
			Good after-sales service After you pay the earnest money, we will manufacture and deliver your product immediately. If the product is faulty we will provide free accessories of the product to you during the warranty period.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	SMD1921
Brand	Kinglight lamp
Arrangement	1R1G1B
Chip parameters	Red (625-630nm) IV:(600-750mcd)
Chip parameters	Green (520-525nm) IV:(1200-1600mcd)
Chip parameters	Blue ( 470-475nm) IV:(300-400mcd)
LED Module
Pixel Pitch	4.6mm
Module Size(W*H)	300×300mm
Module Resolution	64×64=4096(Dots)
Module Weight	0.7kg
LED Cabinet
Pixel Density	45511 Dots/sqm

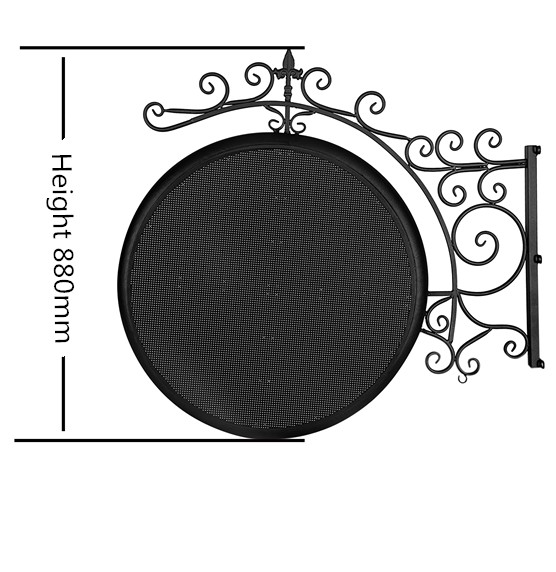

Cabinet Dimension(WHD)	880×880×145mm

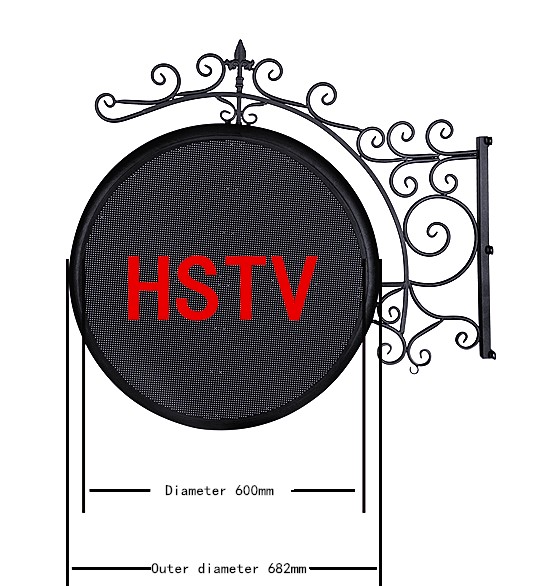

Display size	600×600×145mm
dots/Two-sided	16384×2=32768dots
Module Quanty /Two-sided	4×2=8(Pcs)
Cabinets Material	Steel
Cabinet Weight	16kg/pcs
Brightness	>5000cd/sqm
Viewing Angle	120(Horizontal), 120(Vertical)
Nearest Viewing Distance	6m
Cabinet Power Consumption (Max)	400 w/H
Cabinet Power Consumption (Average)	100 w/H
Refresh Rate	>1920Hz
Drive Mode/Driver Position	Constant driving 1/8 Scan
Display Function	Text,Graphics,Video
Frame Frequency	no less than 60 frame/sec
Input Voltage	AC110-220V±10%, 50/60Hz
Output Voltage	DC-5V,40A/60A/80A
Color Grayscale	16bit
Color Processing	R(1024)×G(1024)×B(1024)
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
MTBF( mean time between failures)	5000 hours
Life-span	100, 000 hours
Protection Level(front/back)	IP65
Malfunction Dot Rate	less than 0.0001
Working Temperature	-20^oC~50^oC
Humidity	15%~85%RH
Control System
Control Method	Asynchronous
Control System	Sending Card, Receiving Card ( Nova )
Software	Nova ViPlex Express( HSTV-Nova )
Language	Chinese，Traditional Chinese，English，French，Spanish，Korean，Japanese
Control Card Input	USB,RJ45，WiFi
Input Signal	AVI/MPG/MPEG/TXT.etc
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Communication Type	Net cable
Certificate	CE, ROHS, FCC, ISO9001, TUV
