Best Quality PH20 LED Screen

PH20 Outdoor anti-low temperature and anti-corrosion Aluminum DIP LED Screen 1280×1280mm #XOFDC20

Price:US$ 921.⁰⁰

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

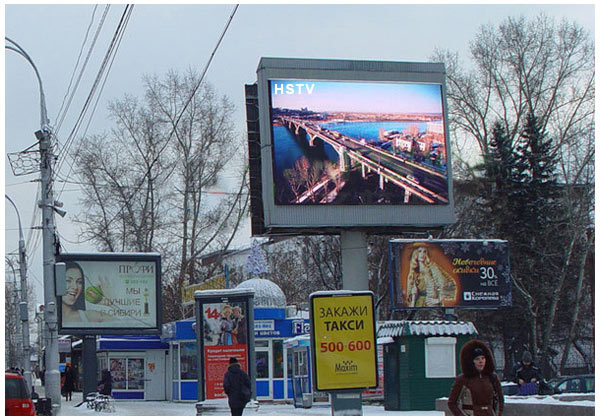

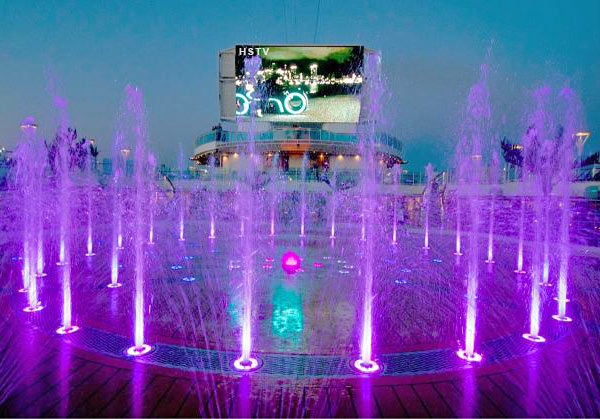

Outdoor LED Advertising Display Outdoor low temperature resistance and corrosion resistance screen is ideal for areas with diverse temperature and weather conditions. Fully protected against different weather conditions. Can be used at seaside, swimming pools, water parks, outdoor places and low temperature conditions.

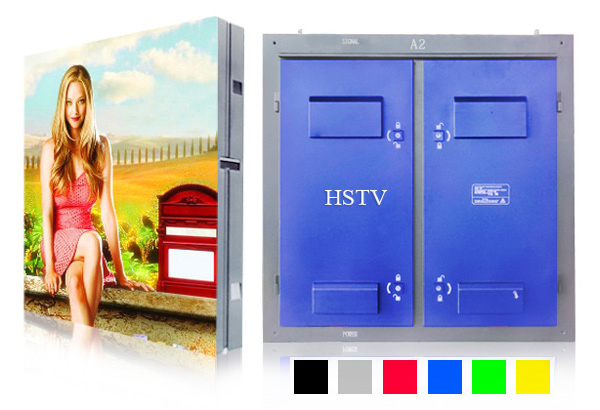

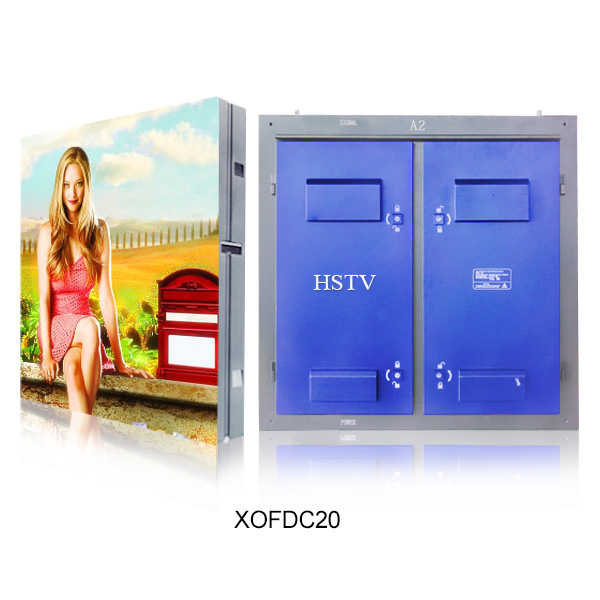

			Quality Products to Count On The double door aluminum cabinet and best quality wire keeps it safe, and its high resolution screen presents big and clear images. Apparently, your advertisement will stand out, catching more eyeballs.
Light and convenient handle Thinner and lighter than the traditional cabinet, over 20% lighter than other supplier.
			Built-in PCB Built-in PCB protects the IC and keep the P20 LED Screen safe from power fluctuation and from water. Aluminum box provides it extra safety. Its delicate design ensures quick and easy installation and module replacement within minutes.
Better Protection The PH20 LED Screen features a Front IP66 waterproof grade which protects the display from any damage. A dedicated guard prevents the screen from any damage and environmental effects. The screen will remain harmless in every condition and in every weather.
			Low Temperature Resistance The outdoor advertising LED display works seamlessly in a wide temperature range of -35 degree to 50 degrees. Ideal to use in any weather conditions. Highly protective against different weather conditions, heat, rain and dust.
Wide Viewing Angle for Broader Reach The PH20 LED Screen features a wide viewing angle of horizontal 120° and vertical 70° which reaches more viewers. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs. This makes it suitable for large gathering.
			Good heat dissipation effect, long lifespan Optimize the cooling system, dual-channel cooling design, low attenuation, long service life.
Featured quality materials High-quality raw materials, mature technology, large-scale production ensure stable and reliable quality.



			One Price for All In single price, you get the complete kit which includes the LED display, cabinet, control system and other packages. It saves you a lot of money. Also, we replace the faulty accessories without any cost if your P20 LED Screen is in warranty period.
Our Company Building Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
			Best Quality Guaranteed Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
Fastest Delivery and Best Online Services OptoKingdom provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.
			Best After-sale Service If your P20 LED Screen is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	DIP546
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(1000-1200mcd)
Chip parameters	Green (520-525nm) IV:(2000-2500mcd)
Chip parameters	Blue(470-475nm) IV:(500-650mcd)
LED Module
Pixel Pitch	20mm
Module Size	320×160mm
Module Resolution	16×8=128(Dots)
Module Weight	0.65kg
LED Cabinet
Pixel Density	2500 Dots/sqm
Frame Frequency	no less than 60 frame/sec
Cabinet Resolution	64×64=4096(Dots)
Input Voltage	AC110-220V±10%, 50/60Hz
Cabinet Dimension(WHD)	1280×1280×185mm
Output Voltage	DC-5V, 40A/60A/80A
Module Quanty /Cabinet	4×8=32(Pcs)
Color Grayscale	16bit
Gray Scale per Color	65536 level
Cabinets Material	Aluminum
Color Processing	R(1024)×G(1024)×B(1024)
Cabinet Weight	25kg/PCS
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
Brightness	>5500cd/sqm
MTBF( mean time between failures)	5000 hours
Viewing Angle	110(Horizontal), 55(Vertical)
Life-span	100, 000 hours
Nearest Viewing Distance	23m
Protection Level(front/back)	IP66/IP54
Power Consumption (Max)	800 w/sqm
Malfunction Dot Rate	less than 0.0001
Power Consumption (Average)	250 w/sqm
Operating Temp/Humidity	-15^oC~50^oC，15%~85%RH
Display Function	Text, Graphics, Video
Storage Temp/Humidity	-30^oC~55^oC，15%~85%RH
Refresh Rate	>800Hz
Drive Mode/Driver Position	Static Combined driver board
Heat Dissipation	Screen size >30sqm / Temperature >40^oC, need matched air conditioner cooling. only for Outdoor Normal Led Display
Control System
Control Mode	Synchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card, Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio(HSTV-linsn)
Communication Type	Net cable
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate	CE, ROHS, FCC, ISO9001, TUV
Control Card Input	DVI, USB, RJ45, HDMI(Sold separately)
