Name: PH2 Indoor Full Color Module 256×128mm
Brand: HS
Price: 13.65 USD
Availability: InStock
Rating: 0 (0 reviews)

PH2 Indoor Full Color Module 256×128mm #IFSM2B

Price:US$ 13.⁶⁵

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

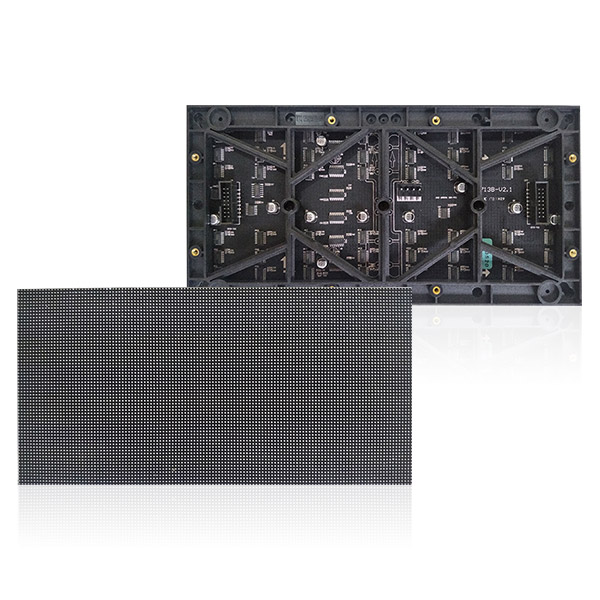

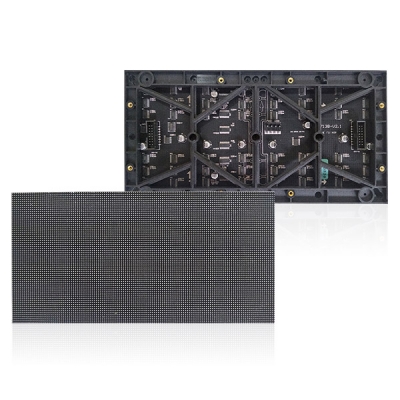

SMD Indoor LED Full Color Display Module A high quality module for high quality display output. The 2mm pixel pitch provides great quality output and makes it lightweight. The delicate design and lightweight makes it ideal to move and install. Can be used at different places.
			Best Quality Material, Modules and Chips The material, modules and chips are selected with great care. We purchase the material from reputed vendors. Chips are purchased from big brands like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan). ICs are bought from MBI, TMS, PWM and MingYang. These manufactures are known for their great quality products.
Control System and Power Supply The control system of module features a sending card, receiving card and receiving hub. Easy to operate manual power supply voltage selection switch can be used to adjust supply voltage 110V and 220V.
			Justified Price We provide most cost effective LED display module on the ex-factory price.
High Refresh Rate The PH2 Rental LED Screen Module is manufactured as per latest technology-dynamic scanning mode which offers higher brightness and high refresh rate. It features a high refresh rate of 1000Hz, producing best quality outputs in form of pictures, videos and texts.
			Get Every Detail in Picture We spend some time with every detail of the product, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen.
Multiple Signal Input - Support Various Input Devices The Indoor LED display supports different input devices and multiple signal input. Can be connected to PC, DV, DVD players etc. Also accepts multiple signal inputs such as AVI, MPG, MPEF, TXT and much more.

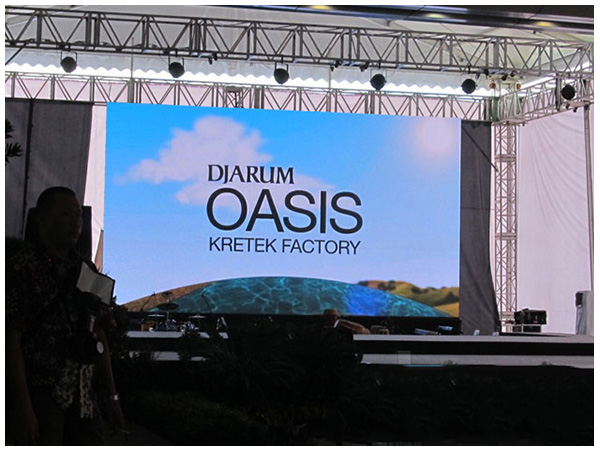

			Optimum Design for Stage and Screens The PH2 Rental LED Screen Module features high resolution HD screen which offers best quality output. An ideal gadget for ideal visual feast. Install at a crowded place and let everyone enjoy the best quality images and videos with utmost clarity.
Factory real shot Focus in every single detail of product. Keep improving the quality.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	SMD1515
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(18-30mcd )
Chip parameters	Green (516-530nm) IV:(50-75mcd)
Chip parameters	Blue (465-475nm) IV:(6.5-9.5mcd)
LED Module
Pixel Pitch	2mm

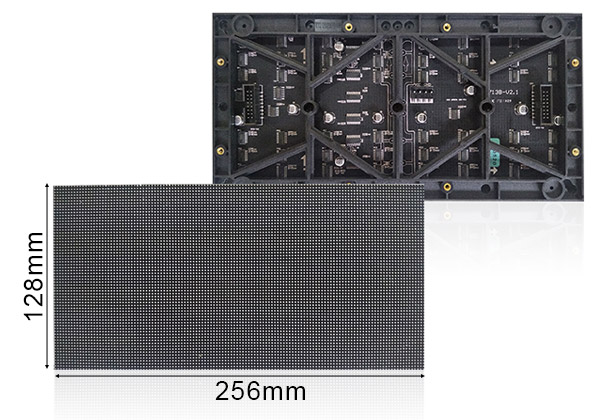

Module Size	256×128×14.75mm
Module Resolution	128×64=8192dots
Module Weight	0.6kg
Module Input Interface	HUB-75E
LED Cabinet
Pixel Density	250000 Dots/㎡
Brightness	≥800cd/㎡
Frame Frequency	no less than 60 frame/sec
Input Voltage	AC110-220V±10%,50/60Hz
Viewing Angle	140(Horizontal),120(Vertical)
Output Voltage	DC-5V,40A/60A/80A
Nearest Viewing Distance	6m
Color Grayscale	16bit
Gray Scale per Color	65536 level
Power Consumption (Max)	1000 w/㎡
Power Consumption (Average)	300 w/㎡
Refresh Rate	≥1920Hz
Color Processing	R(1024)×G(1024)×B(1024)
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional
Display Function	Text,Graphics,Video
MTBF( mean time between failures)	5000 hours
Life-span	100,000 hours
Working Temperature	-20℃~50℃
Protection Level(front/back)	IP34
Humidity	15%~85%
Malfunction Dot Rate	less than 0.0001
Drive Mode/Driver Position	Constant driving 1/32 Scan,Combined diver board
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card,Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio ( HSTV-linsn )
Communication Type	Net cable，4G、WIFI（Sold separately)
Language	Chinese、Traditional Chinese、English、French、Japanese、Russian、Thai、Spanish、Polish、Italian、Portuguese、Turkish、Dutch、Greek、Bulgarian、Romanian、Arabic、Korean、German
Control Card Input	DVI,USB,RJ45、HDMI（Sold separately)
Certificate	CE,ROHS,FCC,ISO9001，TUV
