Name: PH12.5-B Outdoor DIP 1/4 Scan LED Screen 1000×1000mm
Brand: HS
Price: 703.00 USD
Availability: InStock
Rating: 0 (0 reviews)

PH12.5-B Outdoor DIP 1/4 Scan LED Screen 1000×1000mm #OFDC12.5-B

Price:US$ 703.⁰⁰

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

DIP LED Outdoor Video Screen The high resolution LED screen is known for displaying great quality pictures and videos to a broader audience. Highly usable for outdoor advertising such as banks, stages, promotion, exhibitions, highways, stations, stadiums and other outdoor areas.

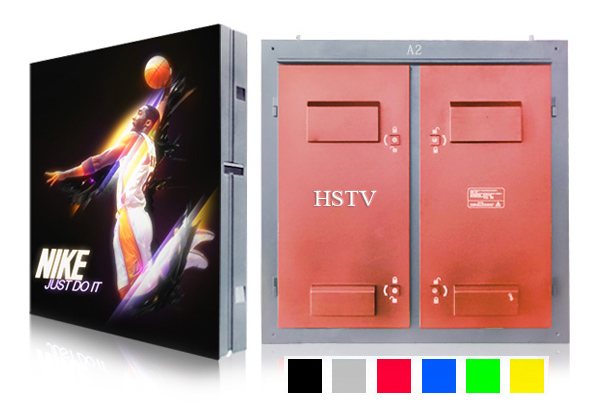

			Unique Design - Easy to Install & Transport The cabinet of Large Outdoor LED Screen features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It's damage free and lasts for a lifetime. Pick out from different standard colors of cabinets.

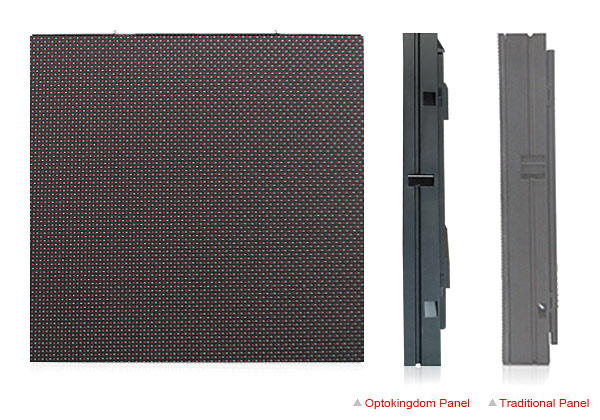

Space Saving, Ultra-lightweight The Large Outdoor LED Screen is only very thin which makes it ultra-lightweight and space saving. Can be installed at any area without requiring much space. The light weight of LED screen is easy to carry, transport and install - saving good amount of money on your labor costs.
			Good heat dissipation effect, long lifespan Optimize the cooling system, dual-channel cooling design, low attenuation, long service life.

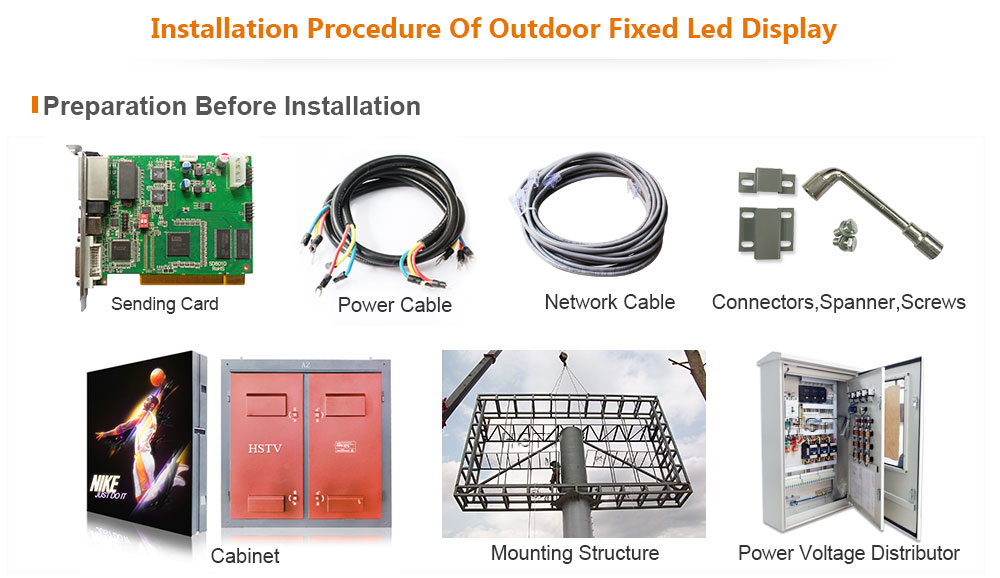

Fast and easy install Accurate, fast, flexible positioning installation, can effectively deal with different installation environment.

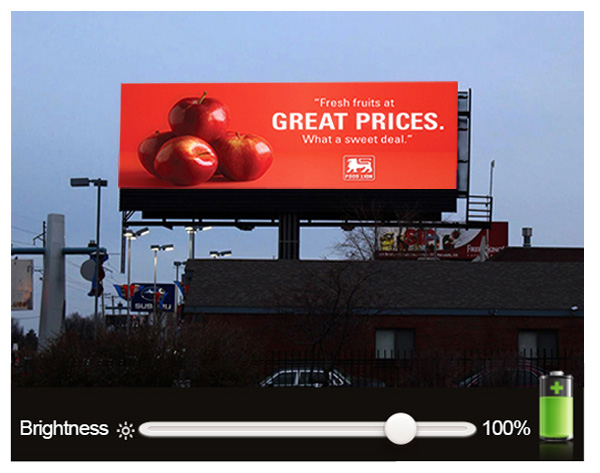

			High Brightness for Quality Output The display features high brightness and advanced features like automatic and manual brightness adjustment. This means, you will get crystal clear picture output in any weather and every day. Adjust the brightness according to the area of installation.
High IP Rating IP66 - Safe and Reliable The special waterproof design of Large Outdoor LED Screen protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating IP66 ensures great quality outputs in every condition.
			Featured quality materials High-quality raw materials, mature technology, large-scale production ensure stable and reliable quality.

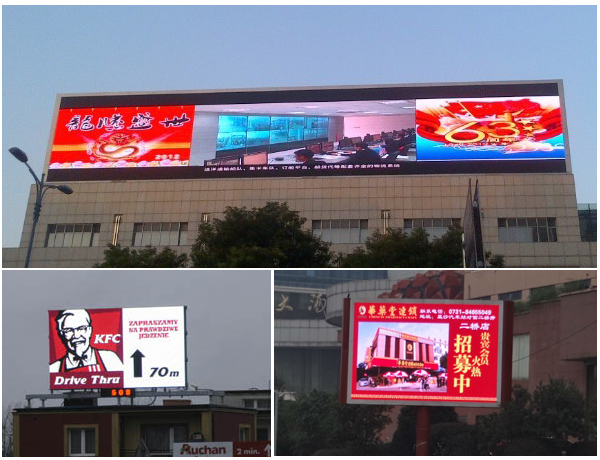

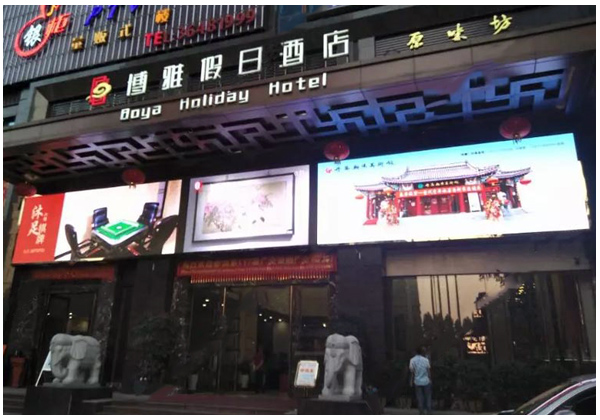

Application The Large Outdoor LED Screen can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration, video displays, educational purposes and much more. You may use it at outdoor areas like highways, streets, malls, stages, stadium, KTV, airport and at many more outdoor places.



			Our Company Building Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
			Best After-sale Service If your Large Outdoor LED Screen is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
Fastest Delivery and Best Online Services OptoKingdom provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

Your Recent History

PH2.5 Indoor Rental 1/32 Scan LED Display 640×6...
US$ 247.00

Add to cart
PH10 Outdoor DIP Dual Maintenance Module 320×3...
US$ 64.84

Add to cart
PH10 Outdoor DIP 3 in 1 LED Screen 960×960mm
US$ 855.00

Add to cart

Quick Index: A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0-9 Sitemap Mobile Site

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	DIP346
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(1000-1200mcd)
Chip parameters	Green (520-525nm) IV:(2000-2500mcd)
Chip parameters	Blue(470-475nm) IV:(500-650mcd)
LED Module
Pixel Pitch	12.5mm
Module Size	200×200mm
Module Resolution	16×16=256(Dots)
Module Weight	0.6kg
LED Cabinet
Pixel Density	6400 Dots/sqm
Frame Frequency	no less than 60 frame/sec
Cabinet Resolution	80×80=6400(Dots)
Input Voltage	AC110-220V±10%, 50/60Hz
Cabinet Dimension(WHD)	1000×1000×185mm
Output Voltage	DC-5V, 40A/60A/80A
Module Quanty /Cabinet	5×5=25(Pcs)
Color Grayscale	16bit
Gray Scale per Color	65536 level
Cabinets Material	Steel
Color Processing	R(1024)×G(1024)×B(1024)
Cabinet Weight	44kg/PCS
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
Brightness	>5500cd/sqm
MTBF( mean time between failures)	5000 hours
Viewing Angle	110(Horizontal), 55(Vertical)
Life-span	100, 000 hours
Nearest Viewing Distance	15m
Protection Level(front/back)	IP66/IP54
Power Consumption (Max)	600 w/sqm
Malfunction Dot Rate	less than 0.0001
Power Consumption (Average)	200 w/sqm
Operating Temp/Humidity	-15^oC~50^oC，15%~85%RH
Display Function	Text, Graphics, Video
Storage Temp/Humidity	-30^oC~55^oC，15%~85%RH
Refresh Rate	>1920Hz
Drive Mode/Driver Position	Constant driving 1/4 Scan, Combined diver board
Heat Dissipation	Screen size >30sqm / Temperature >40^oC, need matched air conditioner cooling. only for Outdoor Normal Led Display
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card, Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio(HSTV-NOVA)
Communication Type	Net cable; 3G, WIFI(Sold separately)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate	CE, ROHS, FCC, ISO9001, TUV
Control Card Input	DVI, USB, RJ45, HDMI(Sold separately)
