Sport Field LED Screen, Waterproof LED Screen

PH5 SMD Sport Field LED Screen 1120×1120mm #SS5

Price:US$ 948.⁰⁰


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

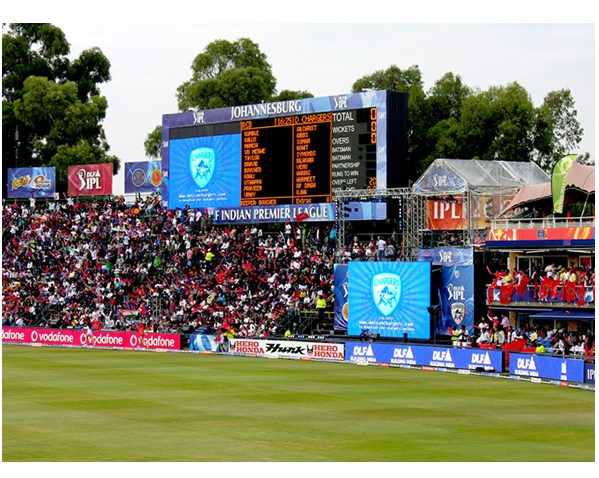

PH5 Perimeter Led Displays And Perimeter Advertising The stadium LED screen is ideal for places of with huge crowd. Its high resolution picture and wide viewing angle ensure best quality pictures and videos to every corner of the stadium. Stable body protects the display from any damage, even high speed ball.
			Protect player from injury Soft mask protection design features good buffer of impact to protect player out of injury to keep it safe.
The quality module All modules and chips are purchased from leading suppliers from across the world. We take great care of quality and performance, and thus we remain very careful while selecting the modules and chips. LED chip is provided by Epistar, Cree, Nichia and Opto. Quality IC supplied by MBI, TMS, PWM and Mingyang.
			High refresh rate Meet the needs of different shooting levels, offer perfect and outstanding shooting effect.
Adjustable angel makes good display effect Features independent support structure, can be adjusted the tilt angle according to the needs of viewing requirement, to achieve the best display.
			Dual-backup system Dual-backup system more reliability and stability which can ensure working correctly during live.
Clear image without delay Adopt high efficiency optical fiber transmission system which can reduce the signal delay in long distance transmission to ensure the consistency of image.
			Best option of outdoor advertising Strong reliability and low failure rate. Cable connects from the inner of cabinet which make it more simple and generous. It can be customized according to clients need.
One Price for All In single price, you get the complete kit which includes the LED display, cabinet, control system and other packages. It saves you a lot of money. Also, we replace the faulty accessories without any cost if your Sport Field LED Screen is in warranty period.
			Our Company Building Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FC, RoSH and SGS and many more.
Best Quality Guaranteed Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
			Fastest Delivery and Best Online Services OptoKingdom provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.
Best After-sale Service If your LED Waterproof Screen is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	SMD2727
Brand	Kinglight / Nationstar lamp
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(800-960mcd)
Chip parameters	Green (520-525nm) IV:(1350-1650mcd)
Chip parameters	Blue (470-475nm) IV:(330-400mcd)

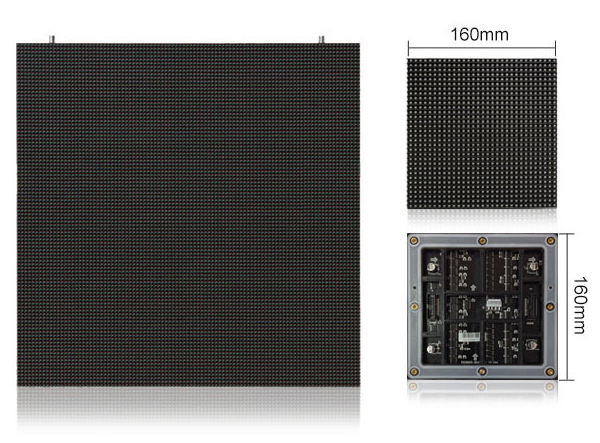

LED Module
Pixel Pitch	5mm
Module Size	160×160mm
Module Resolution	32×32=1024(Dots)
Module Weight	0.2kg
LED Cabinet
Pixel Density	40000 Dots/sqm
Frame Frequency	no less than 60 frame/sec
Cabinet Resolution	224×224=50176(Dots)
Input Voltage	AC110-220V±10%, 50/60Hz
Cabinet Dimension(WHD)	1120×1120×175mm
Output Voltage	DC-5V, 40A/60A/80A
Module Quanty /Cabinet	7×7=49(Pcs)
Color Grayscale	16bit
Gray Scale per Color	65536 level
Cabinets Material	Steel
Color Processing	R(1024)×G(1024)×B(1024)
Cabinet Weight	46kg/PCS
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
Brightness	>7500cd/sqm
MTBF( mean time between failures)	5000 hours
Viewing Angle	120(Horizontal), 120(Vertical)
Life-span	100, 000 hours
Nearest Viewing Distance	8m
Protection Level(front/back)	IP66/IP54
Power Consumption (Max)	1200 w/sqm
Malfunction Dot Rate	less than 0.0001
Power Consumption (Average)	360 w/sqm
Operating Temp/Humidity	-15^oC-50^oC, 15%~85%RH
Display Function	Text, Graphics, Video
Storage Temp/Humidity	-30^oC-55^oC, 15%~85%RH
Refresh Rate	>1000Hz
Drive Mode/Driver Position	Constant driving 1/8 Scan, Combined diver board
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card, Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio ( HSTV-linsn )
Communication Type	Net cable; 3G, WIFI(Sold separately)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate	CE, ROHS, FCC, ISO9001, TUV
Control Card Input	DVI, USB; RJ45, HDMI(Sold separately)
