Name: PH6 Outdoor SMD Ful-color Module 192×192mm
Brand: HS
Price: 7.82 USD
Availability: InStock
Rating: 0 (0 reviews)

PH6 Outdoor SMD Ful-color Module 192×192mm #OFSM6

Price:US$ 7.⁸²

Model No:: 8S-SMD2727 8S-SMD3535 4S-SMD1921

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

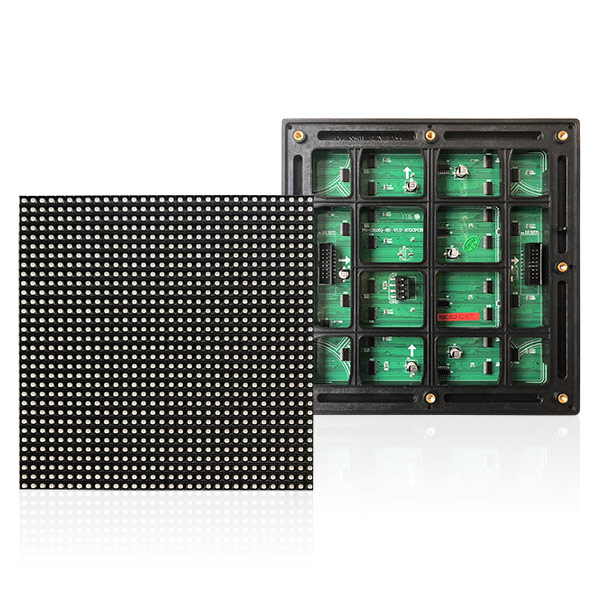

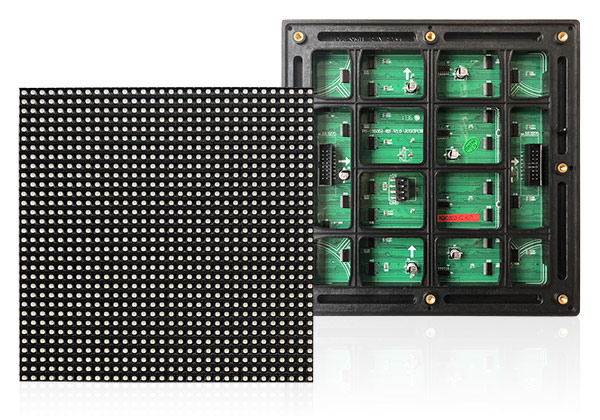

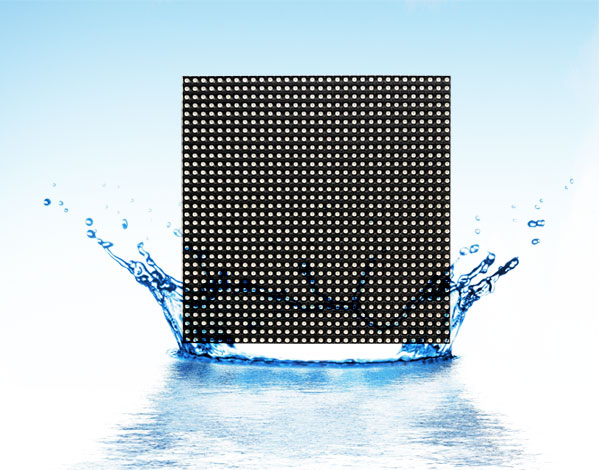

Outdoor PH6 Full Color SMD Module PH6 Outdoor SMD Full Color Module is a suitable module for outdoor advertising. Its strong body and shield protects it from damage. Rectangle module makes it easy to transport and install. High resolution screen guarantees best quality output.

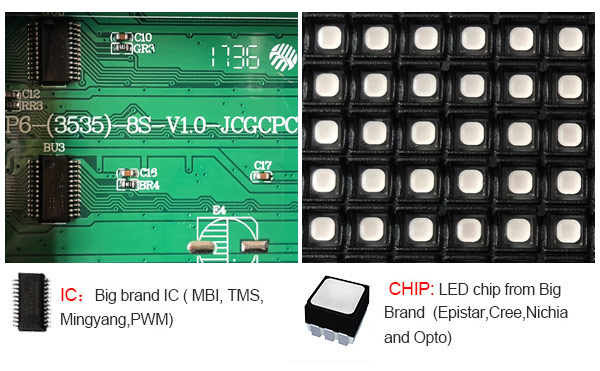

			Brand Names you can Trust We purchase the chips, ICs and material from the most renowned vendors like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan), MBI, TMS, PWM and MingYang. Best quality material is used to manufacture the products. Extra care is taken while assembling the products. So you can always trust the quality of this product.
Price Transparency - Cost Effective If it comes to product price value, we provide you with the best affordable ex-factory rate which is approximately 40 percent less than the price set by the distributor that means a much cost effective
			Highly Cost-effective The precise and thin design of Outdoor LED Screen Module for Sale makes it easy to move, install and maintain. It saves good amount of money on your labor and transportation cost. Special technology is used to minimize power use. PCB boards use Large Scale Integrated Circuit design, improving the stability of LED screen
Hi-Tech Manufacturing - Hi-Tech Products Best quality components are used to manufacture the Outdoor LED Screen Module for Sale, and we purchase the components from most reputed vendors. Cutting-edge technology is used by our engineers, making sure the final product delivers utmost quality.

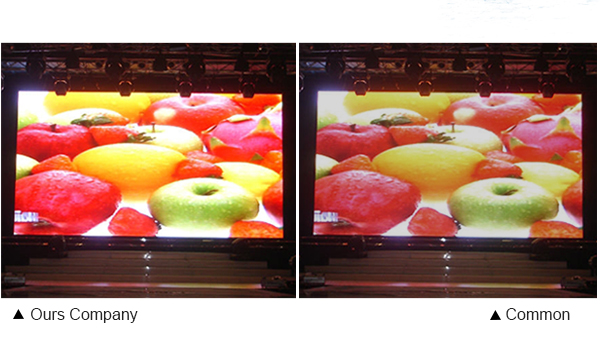

			High Brightness, Better Quality Installing at outdoor places require the displays to produce high brightness outputs. The high brightness and high definition features of the Outdoor LED Screen Module for Sale ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.
Low Power Consumption - Environment Friendly The high-tech transformer used in the module can change AC-220/110V input voltage into DC-5V output ensuring low power consumption. So it saves on your electricity bills, it saves energy and becomes environment friendly

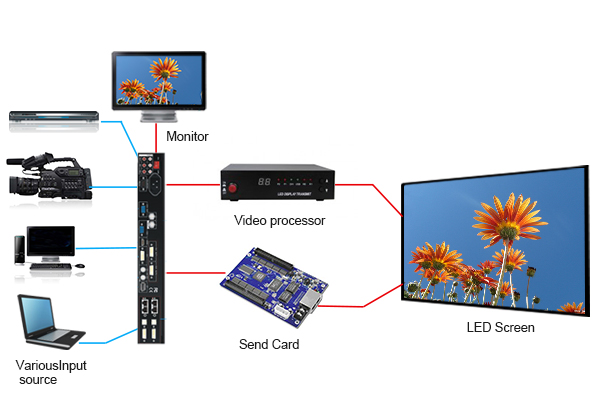

			Standard Control Process for Perfect Performance The video process can receive different input signals and its video integrate machine works with sending card to create complete image. It's intelligent remote control lets you manage everything very conveniently. Receives synchronous message on the screen, getting everything under control

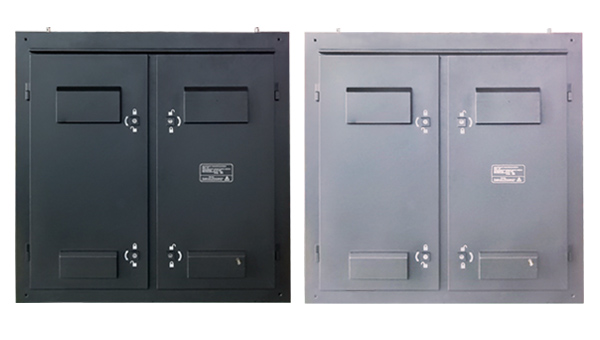

Standard Cabinet Dimensions The ultra-lightweight cabinet made is aluminum alloy which gives it extra strength. The cabinet of Outdoor LED Screen Module for Sale is designed with perfection, making it really easy to install.

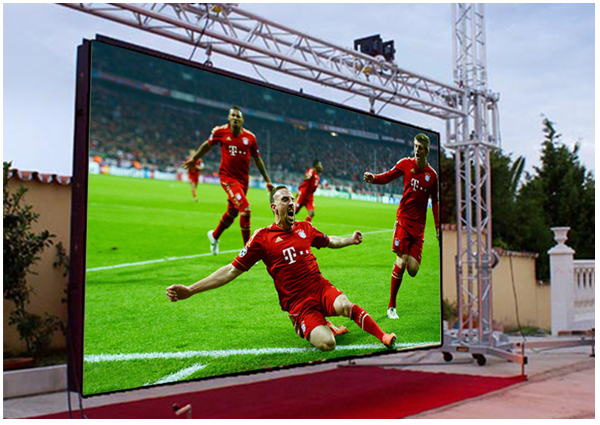

			High Brightness, Better Quality Installing at outdoor places require the displays to produce high brightness outputs. The high brightness and high definition features of the Outdoor LED Screen Module ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places
Factory real shot Focus in every single detail of product. Keep improving the quality.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

Your Recent History

PH7.62 Indoor Single Red Module 488×244mm
US$ 16.41

Add to cart
Full-color Asynchronous Sending Box
US$ 338.00

Add to cart

Quick Index: A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0-9 Sitemap Mobile Site

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	SMD2727/SMD3535/SMD1921
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(800-960mcd)
Chip parameters	Green (520-525nm) IV:(1350-1650mcd)
Chip parameters	Blue (470-475nm) IV:(330-400mcd)
LED Module
Pixel Pitch	6mm
Module Size	192×192mm
Module Resolution	32×32=1024(Dots)
Module Weight	0.4kg
Module Input Interface	HUB-75
LED Cabinet
Pixel Density	27777 Dots/㎡
Frame Frequency	no less than 60 frame/sec
Brightness	≥5500cd/㎡
Input Voltage	AC110-220V±10%,50/60Hz
Viewing Angle	120(Horizontal),120(Vertical)
Output Voltage	DC-5V,40A/60A/80A
Nearest Viewing Distance	9m
Color Grayscale	16bit
Gray Scale per Color	65536 level
Power Consumption (Max)	1200 w/㎡
Color Processing	R(1024)×G(1024)×B(1024)
Power Consumption (Average)	300 w/㎡
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional
Display Function	Text,Graphics,Video
MTBF( mean time between failures)	5000 hours
Refresh Rate	≥1000Hz
Life-span	100,000 hours
Operating Temp/Humidity	0℃~45℃, 15%~85%RH
Protection Level(front/back)	IP65/IP54
Storage Temp/Humidity	-30℃~55℃, 15%~85%RH
Malfunction Dot Rate	less than 0.0001
Drive Mode/Driver Position	Constant driving 1/8 Scan，Combined diver board
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc

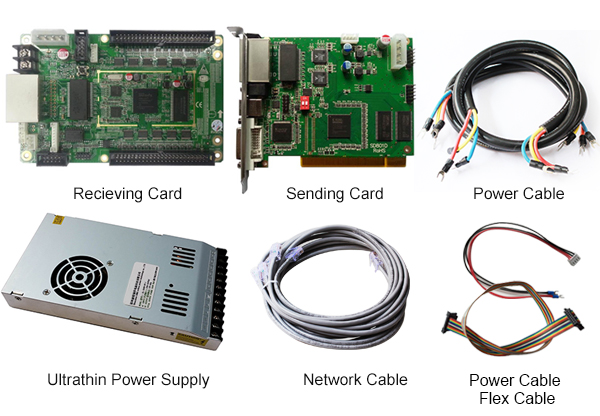

Control System	Sending Card, Receiving Card,Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio ( HSTV-linsn )
Communication Type	Net cable，3G、WIFI（Sold separately)
Language	Chinese、Traditional Chinese、English、French、Japanese、Russian、Thai、Spanish、Polish、Italian、Portuguese、Turkish、Dutch、Greek、Bulgarian、Romanian、Arabic、Korean、German
Certificate	CE,ROHS,FCC,ISO9001，TUV
Control Card Input	DVI,USB,RJ45、HDMI（Sold separately)
