Media Video LED Screen Processor

LED Screen Media Video Processor #VDWALL-LVP

Price:US$ 622.⁰⁰

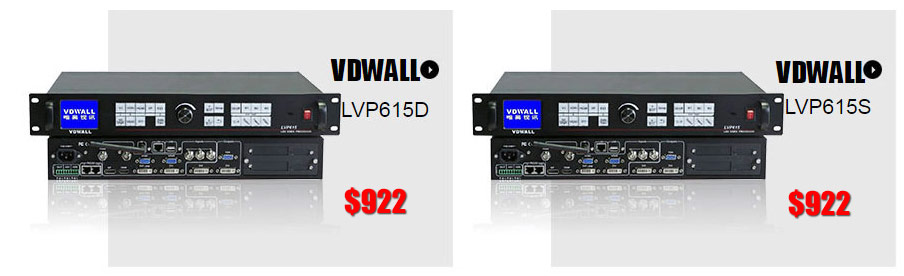

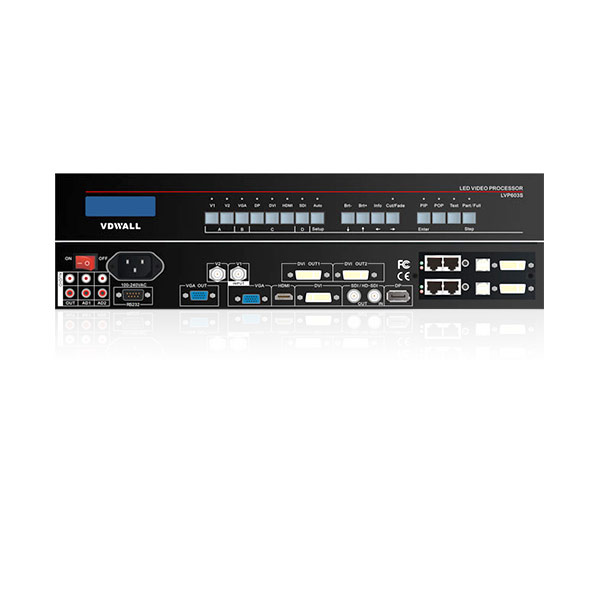

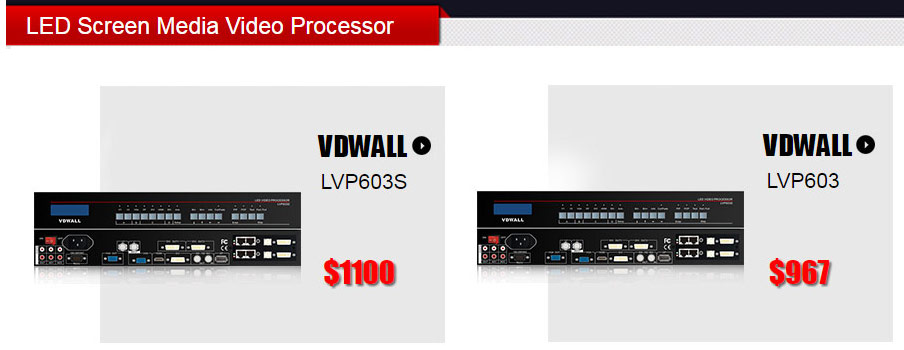

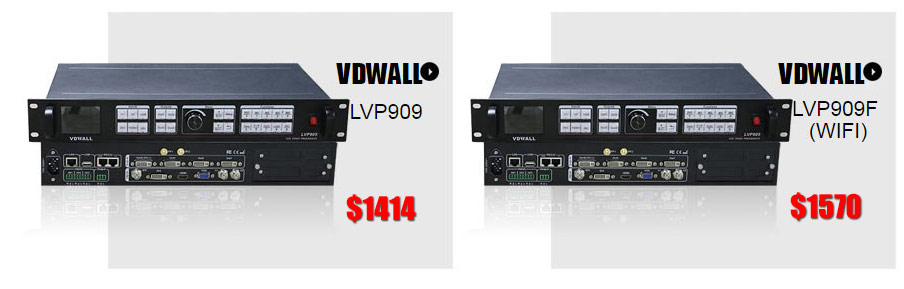

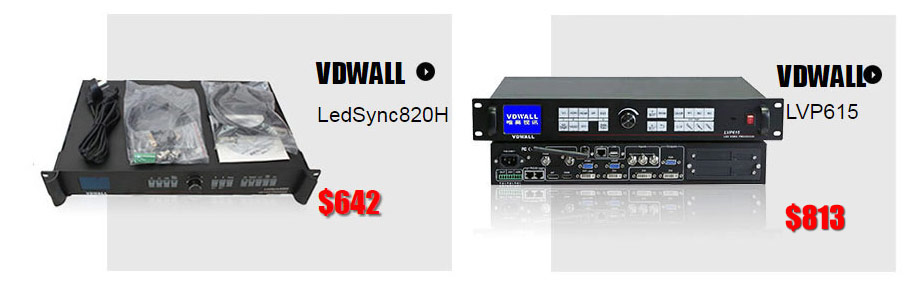

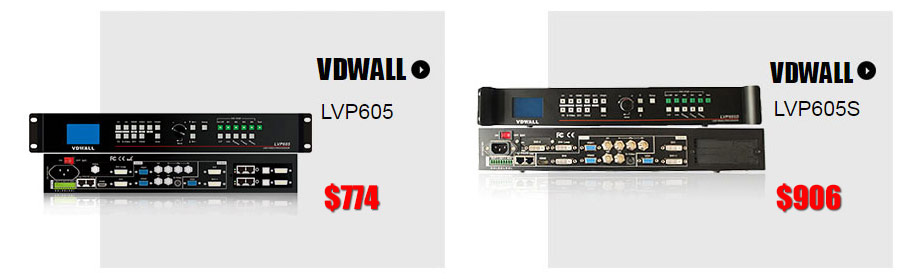

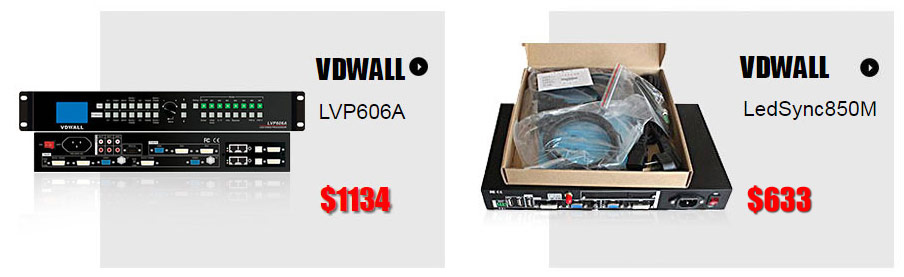

Model No:: VDWALL--LVP603S VDWALL-LVP603 VDWALL-LVP605 VDWALL-LedSync820H VDWALL-LedSync850M VDWALL-LVP606A VDWALL-LVP605S VDWALL-LVP615 VDWALL-LVP615S VDWALL-LVP909 VDWALL-LVP909F(WIFI) VDWALL-LVP615D

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

led display receiving cards sending card

receiving card sending card control card of led display

Model Number	LVP605	LVP603	LVP603S	LVP605S	LVP606A	LedSync850M	LedSync820H	LVP615/615D/615S	LVP909/909F(WIFI)
Brand	VDWALL
Inputs Nums / Type	3×Composite, 1×S-Video, 1×YPbPr, 2×VGA（RGBHV）, 1×DVI（HDMI）, 1×HDMI（1.3a with HDCP）, 1×EXT.（Extended ）	2×Composite video, 1×D/P( Display Port ), 1×VGA ( RGBHV ), 1×DVI, 1×HDMI, 1×SDI / HD-SDI	2×Composite video, 1×D/P( Display Port ), 1×VGA ( RGBHV ), 1×DVI, 1×HDMI, 1×SDI / HD-SDI	3×Composite video, 1×S-Video, 1×YPbPr, 2×VGA（RGBHV）, 1×HDMI（1.3a with HDCP ）, 1×DVI（HDMI）, 1×EXT.（Expansion Interface）	2×Composite video, 2×VGA( RGBHV ), 2×DVI-I( VGA / DVI / HDMI ), 1×DVI（HDMI）	1×Video, 1×VGA（RGBHV）, 1×DVI（HDMI1.3）, 1×USB	2×Composite video, 1×VGA（RGBHV）, 1×DVI / HDMI（1.3a with HDCP ）	2×Video,1×YPbPr,2×VGA（VESA）,1×DP（VESA）,1×DVI（VESA）,1×HDMI（VESA/CEA-861）,1×EXT ,LVP615D+1×(VGA/DVI/HDMI),LVP615S+ 1×(SDI/HD-SDI/3G-SDI)	2×Video,1×VGA（RGBHV）,1×HDMI（VESA/ CEA-861）,1×DVI（VESA/ CEA-861）,1×SDI（SDI/HD-SDI/3G-SDI）
Video system	PAL / NTSC	No	No	PAL / NTSC	PAL / NTSC	PAL / NTSC	PAL / NTSC	PAL / NTSC	PAL / NTSC
Composite Video Scope / Impedance	1V（p_p）/ 75Ω	1V（p_p）/ 75Ω	1V（p_p）/ 75Ω	1V（p_p）/ 75Ω	1V（p_p）/ 75Ω	1V（p_p）/ 75Ω	1V（p_p）/ 75Ω	1V（p_p）/ 75Ω	1V（p_p）/ 75Ω
S-video Scope / Impedance	Y:1.0V（p_p）/ 75Ω, C:0.35V（p_p）/ 75Ω	Y:1.0V（p_p）/ 75Ω, C:0.35V（p_p）/ 75Ω	Y:1.0V（p_p）/ 75Ω, C:0.35V（p_p）/ 75Ω	Y:1.0V（p_p）/ 75Ω, C:0.35V（p_p）/ 75Ω	No	No	No	Y：1.0V（p_p）/ 75Ω，C：0.35V（p_p）/ 75Ω	Y：1.0V（p_p）/ 75Ω，C：0.35V（p_p）/ 75Ω
VGA Format	PC（VESA） ≤2048x1152@60Hz	PC（VESA） ≤1600x1200 @60HZ	PC（VESA）, ≤1600x1200 @60HZ	PC（VESA）, ≤2048x1152@60Hz	PC（VESA）,≤1600x1200 @60HZ	PC（VESA）, ≤1920x1080@60Hz	PC（VESA）,≤2048x1152@60Hz	PC（VESA） ≤2048x1152@60Hz	PC（VESA） ≤1600x1200 @60HZ
VGA Scope / Impedance	R, G, B = 0.7 V（p_p）/ 75Ω	R, G, B = 0.7 V（p_p）/ 75Ω	R, G, B = 0.7 V（p_p）/ 75Ω	R, G, B = 0.7 V（p_p）/ 75Ω	R, G, B = 0.7 V（p_p）/ 75Ω	R, G, B = 0.7 V（p_p）/ 75Ω	R, G, B = 0.7 V（p_p）/ 75Ω	R、G、B = 0.7 V（p_p）/ 75Ω	R、G、B = 0.7 V（p_p）/ 75Ω
DVI Format	SD / HD（CEA-861）,≤1920x1080@60Hz;PC（VESA）,≤2048x1152@60Hz	SD / HD（CEA-861),≤1920x1080@60Hz;PC（VESA）,≤1600x1200 @60HZ	SD / HD（CEA-861）,≤1920x1080@60Hz;PC（VESA）,≤1600x1200 @60HZ	SD / HD（CEA -861）, ≤1920x1080@60Hz；PC（VESA）, ≤2048x1152@60Hz	SD / HD（CEA -861）, ≤1920x1080@60Hz；PC（VESA）, ≤2048x1152@60Hz	PC（VESA standard）, HDMI1.3（CEA-861）; ≤1920x1080@60Hz	SD / HD（CEA -861）,≤1920x1080@60Hz	SD / HD（CEA-861）,≤1920x1080@60Hz;PC（VESA）,≤2048x1152@60Hz	SD / HD（CEA-861）,≤1920x1080@60Hz;PC（VESA）,≤1600x1200 @60HZ
HDMI 1.3 Format( HDCP )	SD / HD（CEA-861）,≤1920x1080@60Hz;PC（VESA）,≤2048x1152@60Hz	SD / HD（CEA-861),≤1920x1080@60Hz;PC（VESA),≤1600x1200 @60HZ	SD / HD（CEA-861）,≤1920x1080@60Hz;PC（VESA）,≤1600x1200 @60HZ	SD / HD（CEA -861）, ≤1920x1080@60Hz；PC（VESA）, ≤2048x1152@60Hz	SD / HD（EIA-861B）,≤1920x1080P @60HZ;PC（VESA）,≤1600x1200 @60HZ;PC（VESA）,≤1600x1200 @60HZ	1920*1080/60HZ	PC（VESA）,≤2048x1152@60Hz	SD / HD（CEA-861）,≤1920x1080@60Hz;PC（VESA）,≤2048x1152@60Hz	SD / HD（CEA-861）,≤1920x1080@60Hz;PC（VESA）,≤1600x1200 @60HZ
YPbPr Format	SD / HD（CEA-861） ≤1920x1080@60Hz	SD / HD（CEA-861） ≤1920x1080@60Hz	SD / HD（CEA-861） ≤1920x1080@60Hz	SD / HD（CEA -861）, ≤1920x1080@60Hz	No	No	No	SD / HD（CEA-861） ≤1920x1080@60Hz	SD / HD（CEA-861） ≤1920x1080@60Hz
YPbPr Scope / Impedance	Y= 1.0V（p_p）/ 75Ω , Pb= 0.35V（p_p）/ 75Ω , Pr= 0.35V（p_p）/ 75Ω	No	No	Y= 1.0V（p_p）/ 75Ω, Pb= 0.35V（p_p）/ 75Ω, Pr= 0.35V（p_p）/ 75Ω	No	No	No	Y= 1.0V（p_p）/ 75Ω 、 Pb= 0.35V（p_p）/ 75Ω 、 Pr= 0.35V（p_p）/ 75Ω	Y= 1.0V（p_p）/ 75Ω 、 Pb= 0.35V（p_p）/ 75Ω 、 Pr= 0.35V（p_p）/ 75Ω
SDI format	SDI-SMPTE 259M-C 576i @50Hz 480i @60Hz	SDI-SMPTE 259M-C 576i @50Hz 480i @60Hz	SDI-SMPTE 259M-C 576i @50Hz 480i @60Hz	SDI-SMPTE 259M-C, 576i @50Hz, 480i @60Hz	No	No	No	SDI-SMPTE 259M-C 576i @50Hz 480i @60Hz	SDI-SMPTE 259M-C 576i @50Hz 480i @60Hz
HD-SDI 3G-SDI format	HDSDI-SMPTE 292M, SMPTE 274M/296M , SMPTE 424M/425M ≤1920×1080@50Hz / 60Hz	HDSDI-SMPTE 292M, SMPTE 274M/296M, SMPTE 424M/425M ≤1080P @50Hz/60Hz	HDSDI-SMPTE 292M, SMPTE 274M/296M, SMPTE 424M/425M 1080P @50HZ/60HZ, 720P @60HZ	HDSDI-SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M, ≤1920×1080@50Hz / 60Hz	No	No	No	HDSDI-SMPTE 292M、SMPTE 274M/296M 、SMPTE 424M/425M ≤1920 x 1080@50Hz / 60Hz	HDSDI-SMPTE 292M、SMPTE 274M/296M、SMPTE 424M/425M 1080P @50HZ/60HZ、720P @60HZ
AUDIO Scope / Impedance	2.0Vp-p / 10KΩ	No	No	2.0Vp-p / 10KΩ	2.0Vp-p / 10KΩ	2.0Vp-p / 10KΩ	2.0Vp-p / 10KΩ	2.0Vp-p / 10KΩ	2.0Vp-p / 10KΩ
Input Connectors	VGA:15pin D_Sub( Female ), DVI:24+1 DVI_D, YPbPr: BNC×3, Composite:BNC, S-VIDEO:4pin mini DIN( Female ), SDI / HD-SDI / 3G-SDI:BNC	VGA:15pin D_Sub ( Female ), DVI:24+1 DVI_D, Composite video:BNC, DP: Display Port, SDI / HD-SDI: BNC	VGA:15pin D_Sub ( Female ), DVI:24+1 DVI_D, Composite video:BNC, DP: Display Port, SDI / HD-SDI: BNC	VGA:15pin D_Sub(Female), DVI:24+1 DVI_D, YPbPr: BNC×3, Composite video:BNC, S-VIDEO:4pin mini DIN(Female), SDI / HD-SDI / 3G-SDI :BNC	VGA:15pin D_Sub(Female), DVI:24+1 DVI_D, DVI-I( VGA /DVI / HDMI ) : 24+5 DVI-I, Composite video:BNC	Video:BNC, VGA:15pin D_Sub(Female), DVI:24+1 DVI_D, USB: A type	VGA:15pin D_Sub(Female), DVI:24+1 DVI_D, Composite video:BNC	Video：BNC YPbPr：BNC×3 VGA：15pin D_Sub DP：DisplayPort SMT20pin DVI：24+1 DVI_D HDMI：HDMI SDI ：BNC	Video：BNC VGA：15pin D_Sub HDMI：HDMI DVI：24+1 DVI_D SDI：BNC/ 75Ω
Outputs Nums / Type	1×VGA（RGBHV）, 2×DVI	1×VGA（RGBHV）, 2×DVI	1×VGA（RGBHV）, 2×DVI	1×VGA（RGBHV） 2×DVI	2×DVI 1×VGA( RGBHV )	1×VGA（RGBHV） 1×DVI	1×VGA（RGBHV） 2×DVI	1×VGA（RGBHV）、2×DVI	1×VGA（RGBHV）、4×DVI
VGA / DVI Format	1024×768@60Hz / 75Hz, 1280×1024@60Hz / 75Hz, 1600×1200@60Hz, 1920×1080@50Hz / 60Hz, 1366×768@60Hz, 1440×900@60Hz, 2048×1152@60Hz, 2304x1152@60Hz, 2560x816@60Hz	1024×768@60Hz/75Hz, 1280×1024@60Hz/75Hz, 1600×1200@60Hz, 1920×1080p@50Hz/60Hz	1024×768@60Hz/75Hz, 1280×1024@60Hz/75Hz, 1600×1200@60Hz, 1920×1080p@50Hz/60Hz	1024×768@60Hz / 75Hz, 1280×1024@60Hz / 75Hz, 1600×1200@60Hz, 1920×1080@50Hz / 60Hz,1366×768@60Hz,1440×900@60Hz,2048×1152@60Hz, 2304x1152@60Hz, 2560x816@60Hz	1024×768@60Hz/75Hz, 1280×1024@60Hz/75Hz, 1366×768@60Hz, 1440×900@60Hz, 1600×1200@60Hz, 1920×1080p@50Hz/60Hz	1024×768@60Hz / 75Hz, 1280×1024@60Hz / 75Hz, 1366×768@60Hz, 1440×900@60Hz, 1600×1200@60Hz, 1920×1080@50Hz / 60Hz	1024×768@60Hz/75Hz, 1280×1024@60Hz / 75Hz, 1600×1200@60Hz, 1920×1080@50Hz / 60Hz, 1366×768@60Hz, 1440×900@60Hz	1024×768@60Hz / 75Hz、1280×1024@60Hz / 75Hz、1600×1200@60Hz、1920×1080@50Hz / 60Hz、1366×768@60Hz、1440×900@60Hz、2048×1152@60Hz、2304x1152@60Hz、2560x816@60Hz	1024×768@60Hz / 75Hz、1280×1024@60Hz / 75Hz、1600×1200@60Hz、1920×1080@50Hz / 60Hz、1366×768@60Hz、1440×900@60Hz、2048×1152@60Hz、2304x1152@60Hz、2560x816@60Hz
VGA Scope / Impedance	R, G, B = 0.7 V（p_p）/ 75Ω	R, G, B = 0.7 V (p_p) / 75Ω	R, G, B = 0.7 V (p_p) / 75Ω	R, G, B = 0.7 V（p_p）/ 75Ω	No	R, G, B = 0.7 V（p_p）/ 75Ω	R, G, B = 0.7 V（p_p）/ 75Ω	R、G、B = 0.7 V（p_p）/ 75Ω	R、G、B = 0.7 V (p_p) / 75Ω
Output Connectors	VGA OUT:15pin D_Sub( Female ), DVI OUT1:24+5 DVI_I, DVI OUT2:24+1 DVI_D	VGA OUT:15pin D_Sub( Female ), DVI OUT1:24+5 DVI_I, DVI OUT2:24+1 DVI_D	VGA OUT:15pin D_Sub( Female ), DVI OUT1:24+5 DVI_I, DVI OUT2:24+1 DVI_D	VGA OUT:15pin D_Sub(Female), DVI OUT1:24+5 DVI_I, DVI OUT2:24+1 DVI_D	VGA OUT:15pin D-Sub(Female), DVI OUT:24+1 DVI_D	VGA OUT:15pin D_Sub(Female), DVI OUT:24+1 DVI_D	VGA OUT:15pin D_Sub(Female), DVI OUT1:24+5 DVI_I, DVI OUT2:24+1 DVI_D	VGA OUT：15pin D_Sub( Female ) DVI OUT1：24+5 DVI_I DVI OUT2：24+1 DVI_D	VGA OUT：15pin D_Sub( Female ) DVI OUT1：24+1 DVI_D DVI OUT3：24+1 DVI_D DVI OUT2：24+1 DVI_D DVI OUT4：24+1 DVI_D
Control	Panel Button / Knob / RS232	Panel Button	Panel Button , RS232	Panel Button / Knob / RS232	Panel Button , RS232	Panel buttons / PC PC software	Panel buttons / knobs / RS232 / USB	WiFi, IP/LAN, panel buttons, infrared remote control, PC software	Panel Button /RS232/USB/LAN/WiFi
Power	100-240VAC 35W 50 / 60Hz	100-240VAC 35W 50 / 60Hz	100-240VAC 35W 50 / 60Hz	100-240VAC 35W 50 / 60Hz	100-240VAC 60W 50 / 60Hz	100-240VAC　Max 20W 50/60Hz	100-240VAC 35W 50 / 60Hz	100-240VAC 35W 50 / 60Hz	100-240VAC 80W 50 / 60Hz
Operating Temp	5-40 ℃	5-40 ℃	5-40 ℃	5-40 ℃	5-40 ℃	0-40℃	5-40 ℃	0-45 ℃	0-45 ℃
Humidity	15%-85%
Dimensions（Package/LWH）	535×370×145mm	510×350×135mm	485×350×155mm	535×370×145	535×370×145mm	340×190×44mm	535×370×145mmm	535×370×145mm	483×274×155mm
Weight	5kg	3.9kg	4.1kg	5kg	5kg	2.8kg	5kg	5kg	5kg
Certificate	CE,ROHS,FCC,ISO9001, TUV
