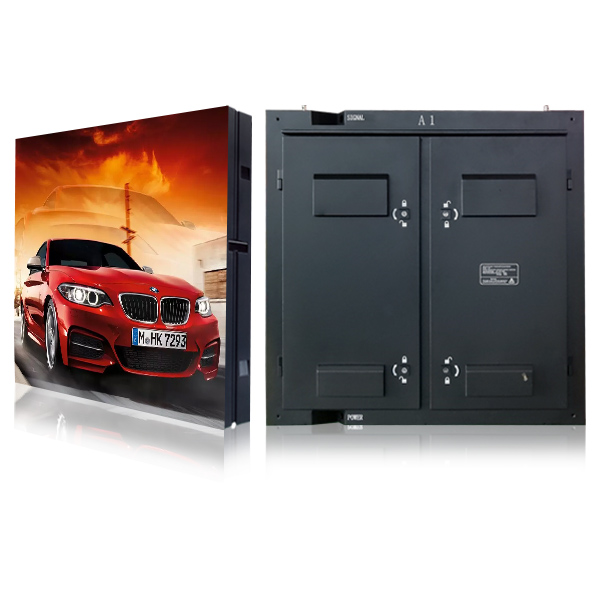

PH16 Outdoor Advertising DIP LED Display Screen

PH16 Outdoor DIP LED Screen 1024×1024mm #OFDC16

Price:US$ 600.⁰⁰


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

Multipurpose, Full Color Display The full color display shows your advertisements with deep details, catching the eyes of the viewers. Can be used at stations, highways, commercial centers, shopping malls etc.
			Easy to Install The ergonomics design make installation a DIY task. You won't require any technical knowledge of expensive gadgets to install it.
Thin and Lightweight: The lightweight panel makes it easy to transport and install. You may carry this outdoor advertising LED display very comfortably.
			Outstanding performance With its crystal-clear display and video quality, the screen shows great quality videos outdoor. Can be installed at any height.
High Grey Scale Level - for every detail: The display features high level of grey-scale which lets you see every detail in the video. So now, you will see the cuteness of penguins more clearly.
			Adjustable Brightness: You may adjust the brightness to make it suitable to different surroundings. Option to adjust brightness manually and automatically.
Safe and Reliable: It's waterproof, so rains won't affect it. The solid structure keeps it protected from damage. A design that you may rely upon.
			High refresh rate for flicker-free picture: Avoid those blurry water-waves of flicks when you watch a video. Its smooth picture refresh will present you a flicker-free video.
Applications: The display can be used for many purposes, like displaying advertisements on highways, shopping malls and outdoors. It may also serve as a great training tool in schools and colleges.
			Our Company Building A place of great infrastructure where we deliver the quality. With our unique approach, our products have passed CE, FC, RoSH and SGS certificates, and many more.
Quality at its best Quality is the word we live by, followed by Continual Improvement, Excellent Service and Quick Response. We follow Total Quality Management practice which is reflected in our products.
			After-sale Support: Optokingdom provides comprehensive after-sales support. So if the product is in warrantee period, we take care of the faults and damages.
Quick Response - Fast Delivery: Optokingdom is always there for you, whenever you need us. Proximity to the airport & port and cooperation with best logistic services allow us to ensure fast and safe delivery.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

Technical Specifications	OFDC16-A	OFDC16-C
Pixel Pitch	16mm
Type	DIP346
Arrangement	2R1G1B	1R1G1B
Chip parameters	Red λd:(625-628nm) IV:(1000-1200mcd)
Chip parameters	Green λd:(523-525nm) IV:(2000-2500mcd)
Chip parameters	Blue λd:(470-472nm) IV:(500-650mcd)
Module Resolution	16×8=128(Dots)	16×16=256(Dots)
Module Size	256×128mm	256×256mm
Pixel Density	3906 Dots/㎡
Cabinet Resolution	64×64=4096(Dots)
Cabinet Dimension(WHD)	1024×1024×185mm
Cabinets Material	Steel
Cabinet Weight	59kg	50kg
Brightness	≥8500cd/㎡	≥7500cd/㎡
Viewing Angle	110(Horizontal),55(Vertical)
Nearest Viewing Distance	19m
Power Consumption (Max)	800 w/㎡
Power Consumption (Average)	250 w/㎡
Refresh Rate	≥1000Hz
Input Voltage	AC110-220V±10%,50/60Hz
Grey Scale Levels	16bit
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional
Life-span	100,000 hours
Protection Level(front/back)	IP66/IP54
Working Temperature	-30℃~50℃
Humidity	15%~85%
Drive Mode/Driver Position	Static Separated driver board	Static Combined driver board
Input Signal	AVI/MPG/MPEG/TXT.etc
Control Mode	Synchronization/Asynchronization
Control System	Sending Card, Receiving Card,Receiving HUB
PC Operating System	Microsoft Windows 7, XP and Vista
Software	LED Studio ( HSTV-linsn )
Language	Chinese、Traditional Chinese、English、French、Japanese、Russian、Thai、Spanish、Polish、Italian、Portuguese、Turkish、Dutch、Greek、Bulgarian、Romanian、Arabic
Communication Type	Net cable，3G、WIFI（Sold separately)
Control Card Input	DVI,USB,RJ45、HDMI（Sold separately)
Certificate	CE,ROHS,FCC,ISO9001，TUV
