P13.33 Waterproof LED Screen Module

PH13.33 Outdoor Full Color Module 320×160mm #OFDM13.33

Price:US$ 13.²⁰

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

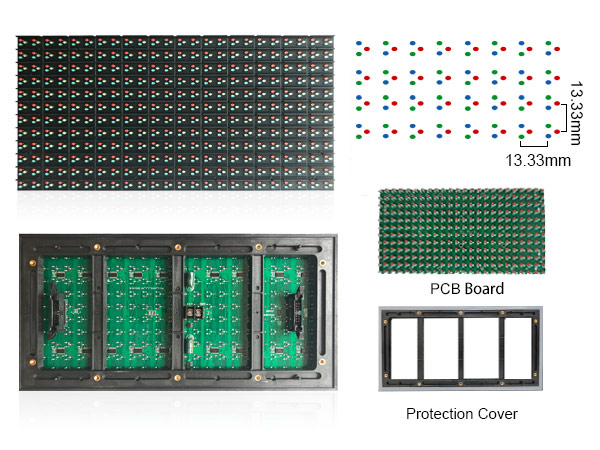

PH13.33 Full Color Outdoor LED Displays Module Low power consumption allows you to save on your electricity bills and help environment. 13.33mm Pixel pitch and full-color module presents stunning display. An ideal choice for outdoor advertising.

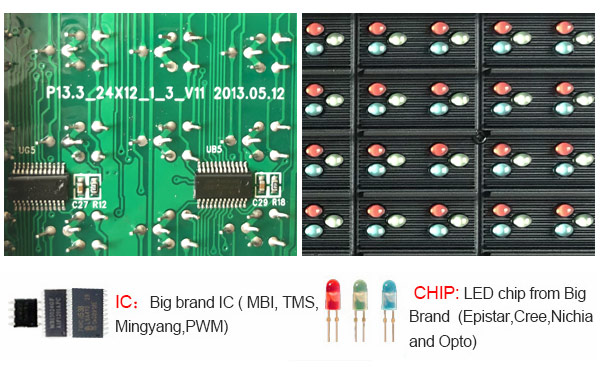

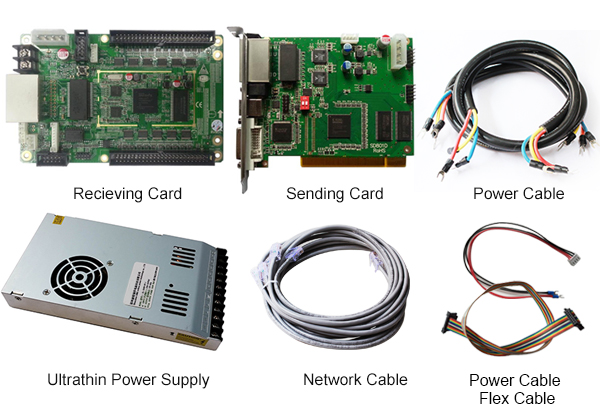

			Best Quality Material, Modules and Chips The material, modules and chips are selected with great care. We purchase the material from reputed vendors. Chips are purchased from big brands like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan). ICs are bought from MBI, TMS, PWM and MingYang. These manufactures are known for their great quality products.
High-performing Components at Best Price All components used to manufacturer this module are purchased from most reputed suppliers, ensuring utmost quality of the module. We guarantee best price for the product making sure it remains in your budget.

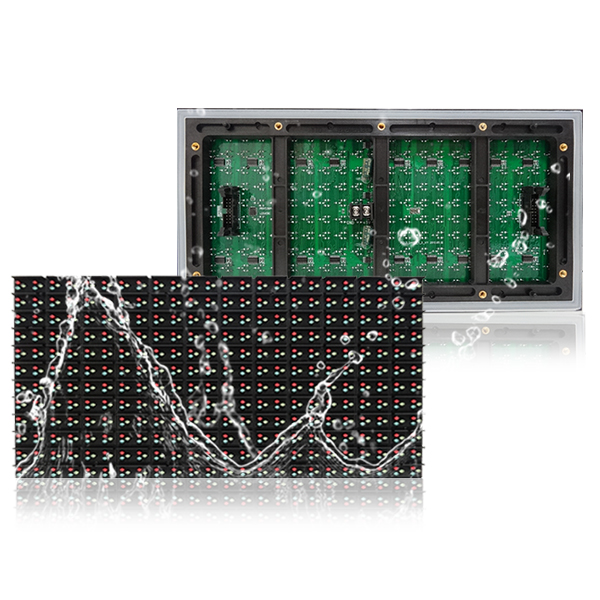

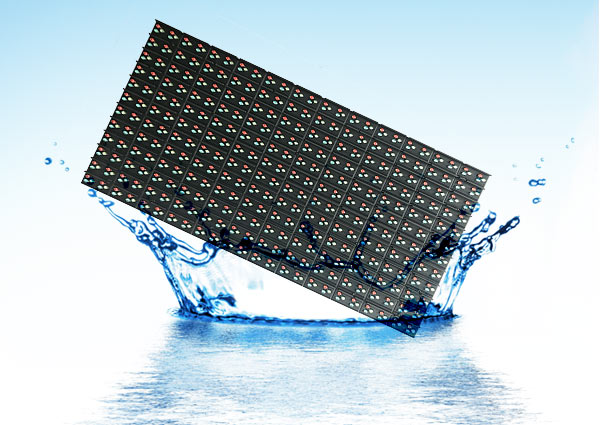

			High IP Rating IP65 - Safe and Reliable The special waterproof design of Outdoor LED Display Modules protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating IP65 ensures great quality outputs in every condition.
High Brightness, Better Quality Installing at outdoor places require the displays to produce high brightness outputs. The high brightness and high definition features of the Outdoor LED Display Modules ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.
			Open Price We provide most cost effective LED display module on the ex-factory price.
Low Power Consumption - Environment Friendly The high-tech transformer used in the module can change AC-220/110V input voltage into DC-5V output ensuring low power consumption. So it saves on your electricity bills, it saves energy and becomes environment friendly.

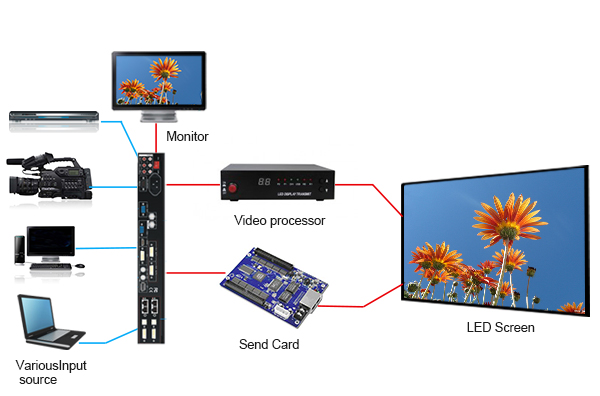

			Standard Control Process for Perfect Performance The video process can receive different input signals and its video integrate machine works with sending card to create complete image. It's intelligent remote control lets you manage everything very conveniently. Receives synchronous message on the screen, getting everything under control.

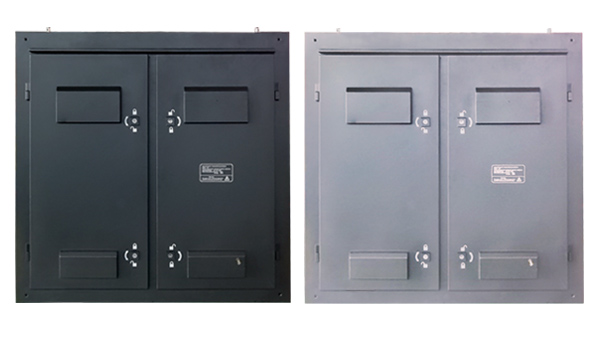

Module Supports Different Cabinets The Outdoor LED Display Modules is perfectly sized to support different cabinets. Its steel cabinet is strong. The module can be installed on any aluminum cabinet or common cabinet. Flexible and easy to install.

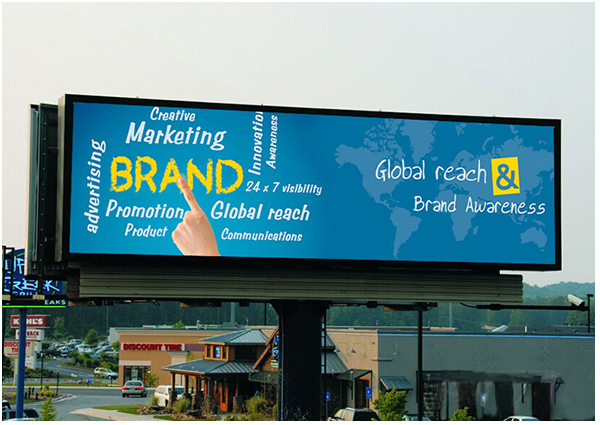

			High Brightness, Better Quality Installing at outdoor places require the displays to produce high brightness outputs. The high brightness and high definition features of the Outdoor LED Display Modules ensures great quality pictures - making it a perfect fit for stage, banks, highways, promotion, station, stadium and other outdoor places.
Factory real shot Focus in every single detail of product. Keep improving the quality.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	DIP346
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(1000-1200mcd)
Chip parameters	Green (520-525nm) IV:(2000-2500mcd)
Chip parameters	Blue (470-475nm) IV:(500-650mcd)
LED Module
Pixel Pitch	13.33mm
Module Size	320×160mm
Module Resolution	24×12=288(Dots)
Module Weight	0.75kg
Module Input Interface	HUB-08
LED Cabinet
Pixel Density	5628 Dots/㎡
Frame Frequency	no less than 60 frame/sec
Brightness	≥5500cd/㎡
Input Voltage	AC110-220V±10%,50/60Hz
Viewing Angle	110(Horizontal),55(Vertical)
Output Voltage	DC-5V,40A/60A/80A
Nearest Viewing Distance	16m
Color Grayscale	16bit
Gray Scale per Color	65536 level
Power Consumption (Max)	600 w/㎡
Color Processing	R(1024)×G(1024)×B(1024)
Power Consumption (Average)	280 w/㎡
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional
Display Function	Text,Graphics,Video
MTBF( mean time between failures)	5000 hours
Refresh Rate	≥1000Hz
Life-span	100,000 hours
Operating Temp/Humidity	-15℃~50℃,15%~85%RH
Protection Level(front/back)	IP65/IP54
Storage Temp/Humidity	-30℃~55℃,15%~85%RH
Malfunction Dot Rate	less than 0.0001
Drive Mode/Driver Position	Constant driving 1/3 Scan，Combined diver board
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card,Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio ( HSTV-linsn )
Communication Type	Net cable，3G、WIFI（Sold separately)
Language	Chinese、Traditional Chinese、English、French、Japanese、Russian、Thai、Spanish、Polish、Italian、Portuguese、Turkish、Dutch、Greek、Bulgarian、Romanian、Arabic、Korean，German
Certificate	CE,ROHS,FCC,ISO9001，TUV
Control Card Input	DVI,USB,RJ45、HDMI（Sold separately)
