LED Display Screen Netwok Router TP-link

Netwok Router for LED Display Screen TP-link #LOA

Price:US$ 21.⁰⁰

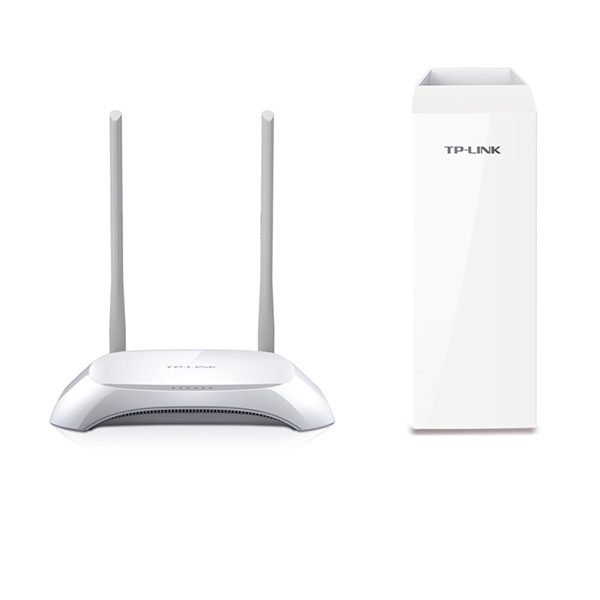

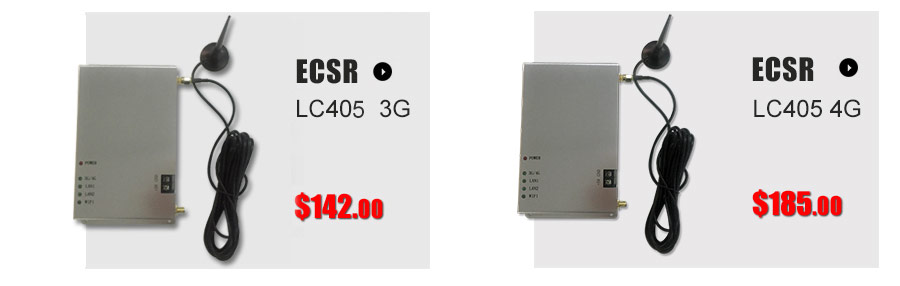

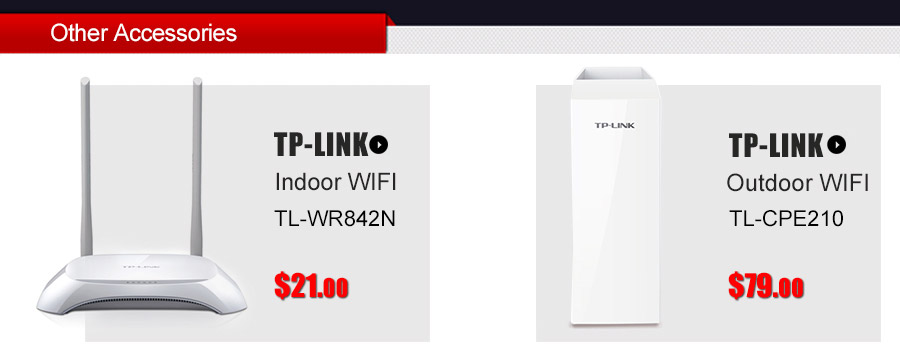

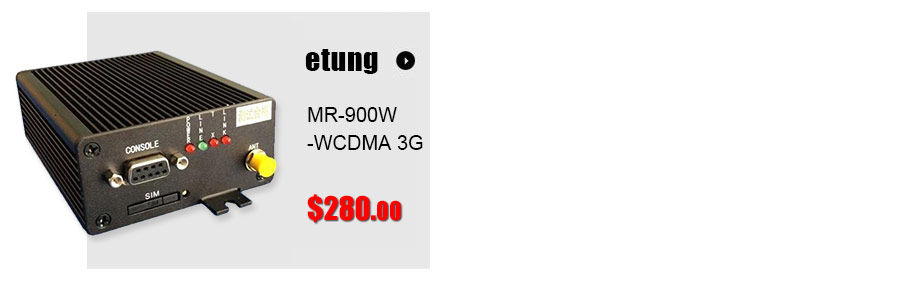

Model No:: TL-WR842N TL-CPE210 ECSR-YC-LC405(4G) ECSR-YC-LC405(3G) MR-900W-WCDMA 3G

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

Model Number	TL-WR842N（Indoor）	TL-CPE210（Outdoor）	ECSR-YC-LC405(3G/4G)	MR-900W-WCDMA 3G
Protocol Standards	IEEE 802.11n，IEEE 802.11b，IEEE 802.11g，IEEE802.3，IEEE802.3u	IEEE 802.11b/g/n ，TP-LINK MAXtream TDMA	WCDMA	WCDMA
Wireless rate band	300Mbps	Working frequency: 2.4 ~ 2.4835GHz (China) wireless speeds: 300Mbps	No limited	No limited
Interface	4 10 / 100M adaptive LAN port A 10 / 100M adaptive WAN port (Auto MDI / MDIX)	A 10 / 100Mbps shielded RJ45 port (LAN0 / POE) A 10 / 100Mbps shielded RJ45 port (LAN1)	A 10 / 100M adaptive LAN / WAN port, Micro USB charging port	A 10 / 100M adaptive LAN port, 3.5mm charging port ,RS232
Push button	Reset button reuse	Reset	Reset	Reset
LED lights	SYS system instructions, the port Link / Act instructions	PWR, LAN0, LAN1,4 signal strength indicator	LED lights	LED lights
Antenna, the maximum transmission power	Two external fixed omni-directional antenna	Built 9dBi polarized antenna, 27dBm / 500mw	One external fixed omni-directional antenna	One external fixed omni-directional antenna
Size	190mm×133mm×33mm	224×79×60(mm)	131mm x 63mm x 22mm	80mm x 104mm x 38mm
Operating Voltage	DC9V	DC24V	5V	DC5V-36V
Operating temperature	0～40℃	-30°C～70°C	0℃～40℃	-30°C～70°C
Operating humidity	15％～85％	10% ~ 90% RH non-condensing	15%～85%	15%～85%
Lightning, dust, water level	No	6kV lightning protection, 15kV ESD protection ASA plastic housing, IP55 rating against dust and water	No	No
Maximum wireless transmission distance (without interference environment)	300M	5 km	No limited	No limited
