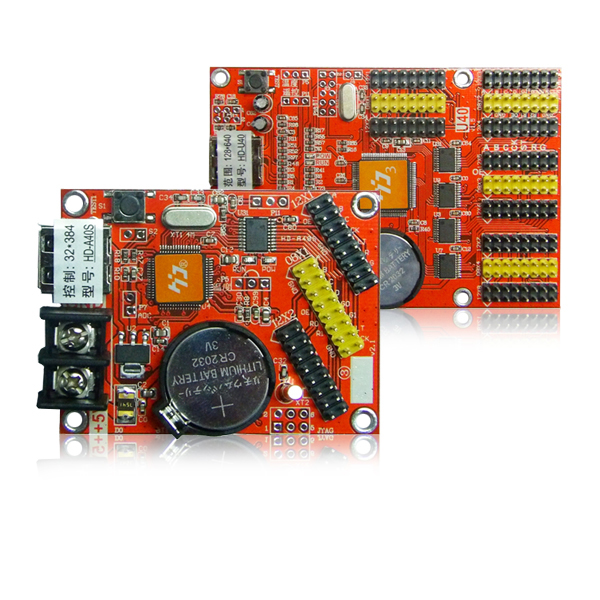

Triple-color U Disk Card

Triple-color U Disk Card #TUC

Price:US$ 48.⁰⁰

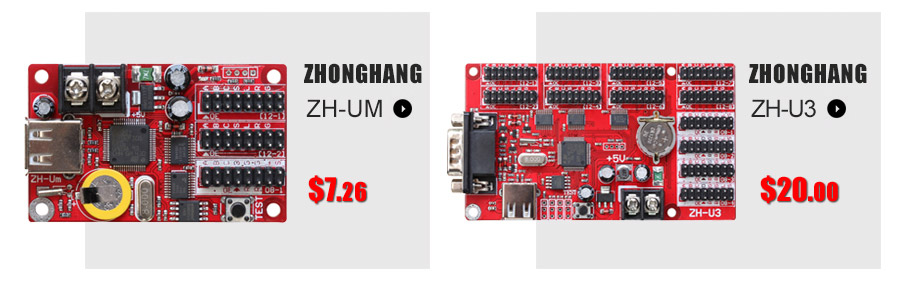

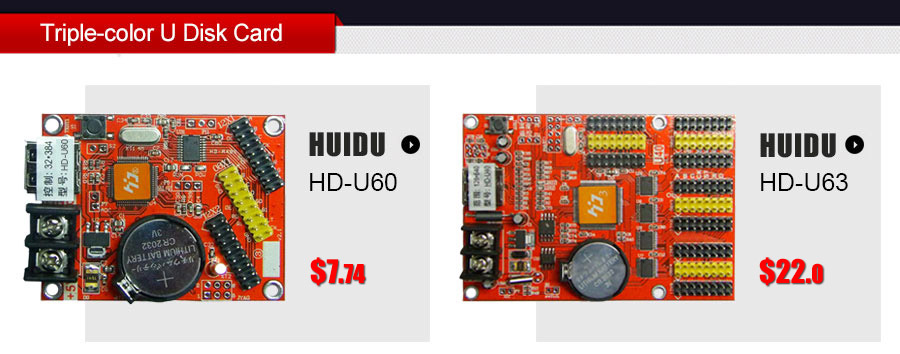

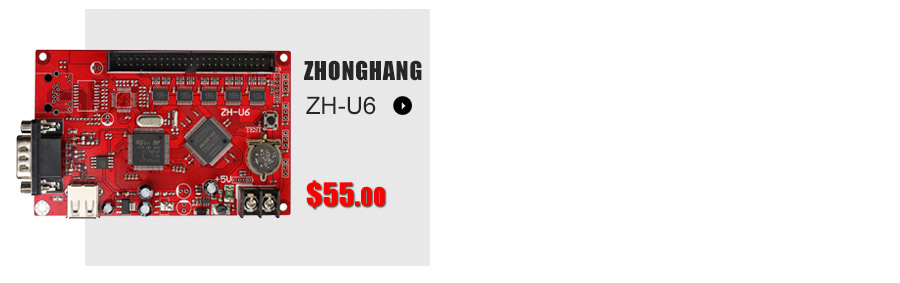

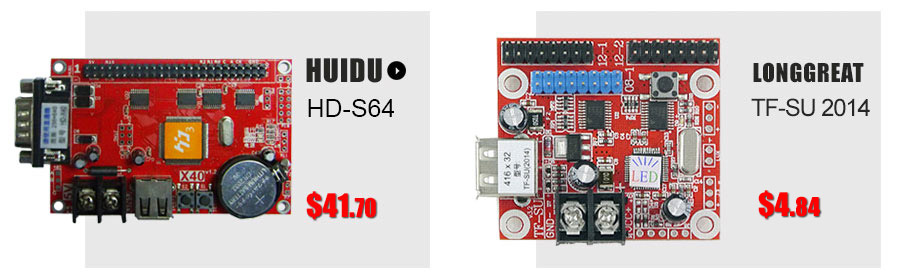

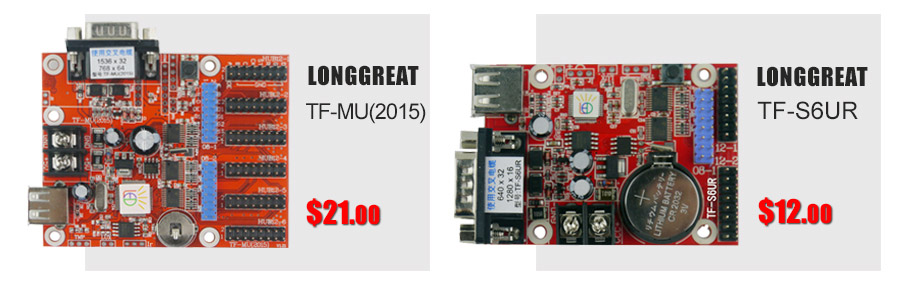

Model No:: LongGreat-TF-SU 2014 LongGreat-TF-MU(2015) LongGreat-TF-S6UR ZhongHang-ZH-Um ZhongHang-ZH-U3 ZhongHang-ZH-U6 HUIDU-HD-U60 HUIDU-HD-U63 HUIDU-HD-S64

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

Have you found out the suitable led card for your project? More advises of purchasing led sending card please contact our online service! Enjoy your shopping moment!

Model Number	HD-U60	HD-U63	HD-S64	TF-SU 2014	TF-MU(2015)	TF-S6UR	ZH-Um	ZH-U3	ZH-U6
Operating System	Windows2000、NT、XP、Vista、Win7			Windows2000、NT、XP、Vista、Win7			Windows2000、NT、XP、Vista、Win7
Control Range	Single Color:32×384、16×768；Triple Color:32×192、16×384	Single Color:128×640、64×1280、32×2048；Triple Color:128×320、64×640、32×1280	Single Color:256×1024、128×2048；Triple Color:256×512、128×1024、64×2048	Single Color:832×16、416×32；Triple Color:416×16、192×32	Single Color:1536×32、768×64；Triple Color:768×32、384×64	Single Color:2048×64、1024×128；Triple Color:1024×64、 512×128	Single Color:1024×16、512×32	Single Color:1024×64、800×80、1344×48 、512×128	Single Color:128×4096、256×2045、160×3272
Onboard Interface	Two 12 interfaces,one 08 interface	Eight 12 interfaces,four 08 interfaces	Need HUB board	Two 12 interfaces,one 08 interface	Six 12 interfaces,two 08 interface	Eight 12 interfaces,four 08 interface	Two 12 interfaces,one 08 interface	Eight 12 interfaces,four 08 interfaces	Need HUB board
Drive Mode	Static、1/2、1/3、1/4、1/6、1/8、1/16 Scan	Static、1/2、1/4、1/8、1/16 Scan	Static、1/2、1/4、1/8、1/16 Scan	1/4、1/16 Scan	1/16、1/8、1/4、1/2、Static	1/16、1/8、1/4、1/2、Static	1/4、1/8、1/16 Scan
Communication Interface	USB	USB	USB、RS232	USB	USB、RS232	USB、RS232	USB	USB、RS232	USB、RS232
Display Color	Triple Color (Red、Green、Yellow)			Triple Color (Red、Green、Yellow)			Triple Color (Red、Green、Yellow)
Number of Programs	200, support key to switch			20	200	200	32
The Number of Regions	4, independent partitions, independent effects, independent border	8, independent partitions, independent effects, independent border		16, independent partitions, independent effects, independent border			4, independent partitions, independent effects, independent border
Display Content	Text, pictures, time, temperature (requires external module), timing, animation word			Text, pictures, animations (does not support dial, clock, countdown, temperature and humidity)	Text, images, animation, countdown,timing, temperature (requires external module), humidity, clock		Teletext, subtitles, digital time, analog dial, animation
Storage Capacity	2MB			512KB	2MB	2MB	8MB	16MB	32MB
Display Method	Sequential display, key switch			Sequential display	Support turn playback, timed long play, support segment by date, time, week broadcast regularly		Order, couplet word display, timed play, divided time segment play, locking a single broadcast
Screen Switch	Support machine timer switch			Manual switch screen	It supports four time periods timer switch screen		Software-enforced switch and timer switch machine
Dimming	Support			Support			Support
Working Voltage	4.2～5.5V			4.5～6V			3.2～5.5V
Working Temperature	-40℃～75℃			-30℃～70℃			-30℃～70℃
Humidity	15%～85%			15%～85%			15%～85%
Power Consumption	≤0.5W			≤0.5W			≤0.5W
Language	Chinese，Traditional Chinese，English，French，German，Japanese，Korean，Thai，Portuguese，Russian，Spanish，Turkish，Vietnamese language，Mongolian，Bulgarian，Persian，Polish			Chinese，Traditional Chinese，English，French，German，Japanese，Portuguese，Spanish，Turkish，Arabic，Persian，Mongolian，Thai.			Chinese，Traditional Chinese，English，French，Japanese，Portuguese，Spanish，Turkish，Arabic，Russian
Supporting Software	HD2014			PowerLed			Led Control system V3
Certificate	CE,ROHS,FCC,ISO9001，TUV			CE,ROHS,FCC,ISO9001，TUV			CE,ROHS,FCC,ISO9001，TUV
