SMD LED Screen, Outdoor SMD LED Display

PH5 Outdoor LED Display Screen 960×960mm #OFSC5A

Price:US$ 365.⁰⁰

Model No:: C-Nationstar lamp B-Kinglight lamp A-Epistar lamp

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

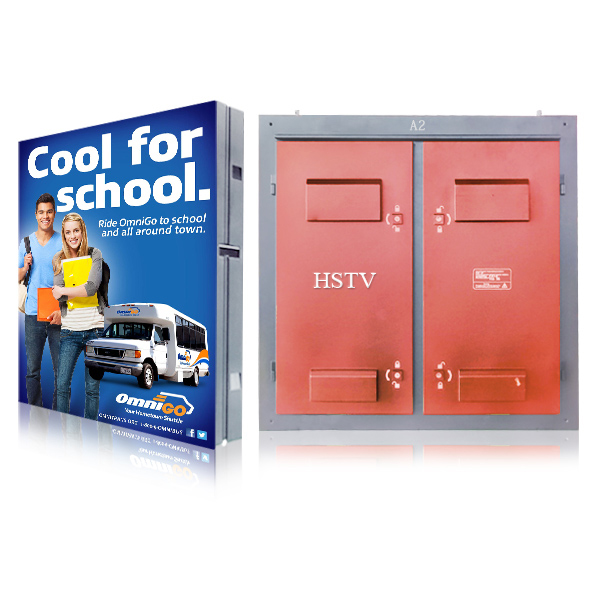

PH5 Outdoor SMD LED Screen The PH5 Outdoor SMD LED Screen is easy to move, install and maintain, so it saves the labor and time costs. Highly applicable for bank, promotion, exhibition, highway, station, KTV, stadium, airport and other outdoor places.

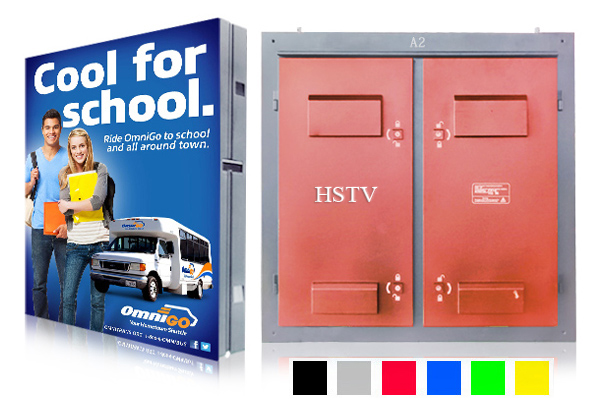

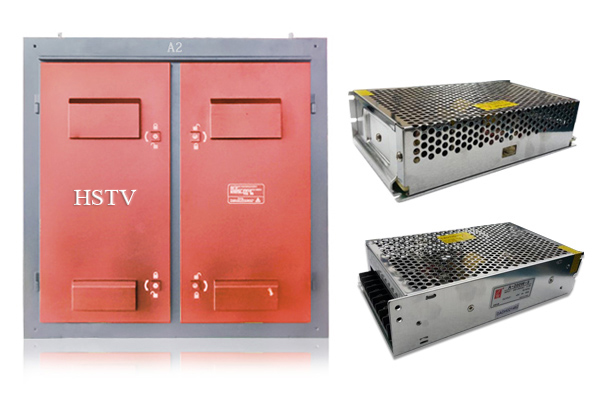

			Unique Cabinet Design - Easy to Install & Transport The cabinet of SMD LED Screen features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It's damage free and lasts for a lifetime. Pick out from different standard colors of cabinets.
Light and convenient handle Thinner and lighter than the traditional cabinet, over 20% lighter than other supplier.
			Good heat dissipation effect, long lifespan Optimize the cooling system, dual-channel cooling design, low attenuation, long service life.
Fast and easy install Accurate, fast, flexible positioning installation, can effectively deal with different installation environment.
			Energy saving design Automatic brightness adjust system can lower 25% power consumption, saving the using cost to you and friendly with environment.

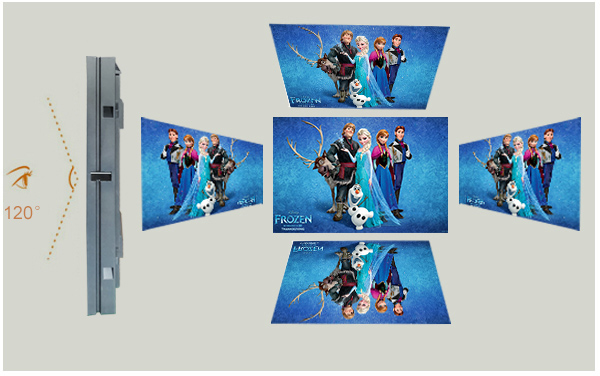

Wide Viewing Angle for Broader Reach The display features a wide viewing angle of 120° horizontal and 120° in vertical which reaches more viewers. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs. This makes it suitable for large gathering.
			Featured quality materials High-quality raw materials, mature technology, large-scale production ensure stable and reliable quality.
Brand Names you can Trust We purchase the chips, ICs and material from the most renowned vendors like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan), MBI, TMS, PWM and MingYang. Best quality material is used to manufacture the products. Extra care is taken while assembling the products. So you can always trust the quality of this product.

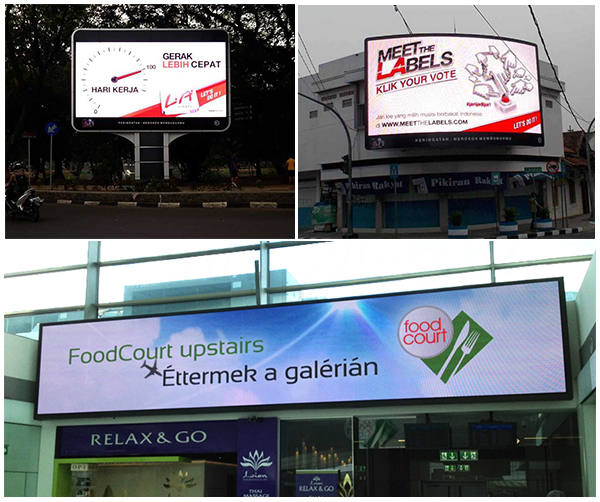

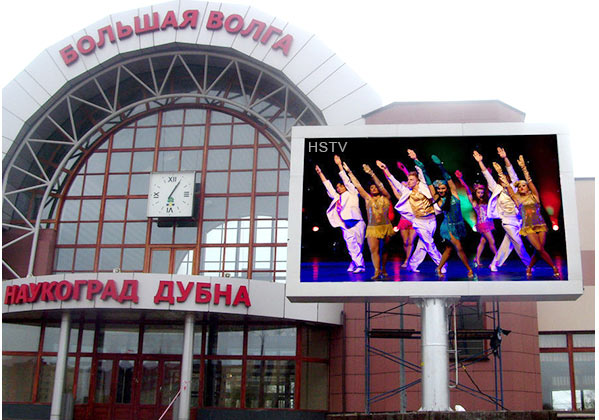

			Application The SMD LED Screen can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration, video displays, educational purposes and much more. You may use it at outdoor areas like highways, streets, malls, stages, stadium and at many more outdoor places.



Our Company Building Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
			Best Quality Guaranteed Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
Fastest Delivery and Best Online Services OptoKingdom provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.
			Best After-sale Service If your Outdoor SMD LED Display is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	SMD1921
Brand	Epistar / Kinglight / Nationstar lamp
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(800-960mcd)
Chip parameters	Green (520-525nm) IV:(1350-1650mcd)
Chip parameters	Blue (470-475nm) IV:(330-400mcd)
LED Module
Pixel Pitch	5mm
Module Size	320×160mm
Module Resolution	64×32=2048(Dots)
Module Weight	0.4kg
LED Cabinet
Pixel Density	40000 Dots/sqm
Frame Frequency	no less than 60 frame/sec
Cabinet Resolution	192×192=36864(Dots)
Input Voltage	AC110-220V±10%, 50/60Hz
Cabinet Dimension(WHD)	960×960×175mm
Output Voltage	DC-5V, 40A/60A/80A
Module Quanty /Cabinet	3×6=18(Pcs)
Color Grayscale	16bit
Gray Scale per Color	65536 level
Cabinets Material	Steel
Color Processing	R(1024)×G(1024)×B(1024)
Cabinet Weight	34kg/PCS
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
Brightness	>5000-5500cd/sqm
MTBF( mean time between failures)	5000 hours
Viewing Angle	120(Horizontal), 120(Vertical)
Life-span	100, 000 hours
Nearest Viewing Distance	8m
Protection Level(front/back)	IP66/IP54
Power Consumption (Max)	1000 w/sqm
Malfunction Dot Rate	less than 0.0001
Power Consumption (Average)	300 w/sqm
Operating Temp/Humidity	-15^oC~50^oC,15%~85%RH
Display Function	Text, Graphics, Video
Storage Temp/Humidity	-30^oC~55^oC,15%~85%RH
Refresh Rate	>1920Hz
Drive Mode/Driver Position	Constant driving 1/8 Scan, Combined diver board
Heat Dissipation	Screen size >30sqm / Temperature >40^oC, need matched air conditioner cooling. only for Outdoor Normal Led Display
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card, Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio(HSTV-NOVA)
Communication Type	Net cable; 3G, WIFI(Sold separately)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate	CE, ROHS, FCC, ISO9001, TUV
Control Card Input	DVI, USB, RJ45, HDMI(Sold separately)
