PH5.2-10.4 Transparent LED Screen Module

PH5.2-10.4 Transparent LED Screen Module 250×250mm #SNTM5.2

Price:US$ 86.⁰⁰

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

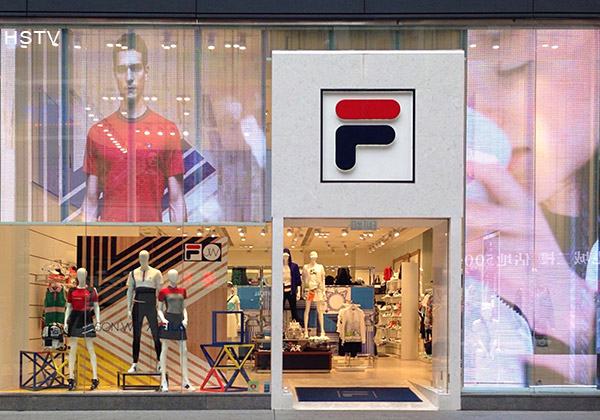

Transparent LED Screen Module Featured with high transparency, PH5.2-10.4 Transparent LED Screen Module can be used at any place that has glass walls. Highly usable at places like bank, shopping mall, theater, commercial stage, chain store, hotel, public building and landmark building etc.

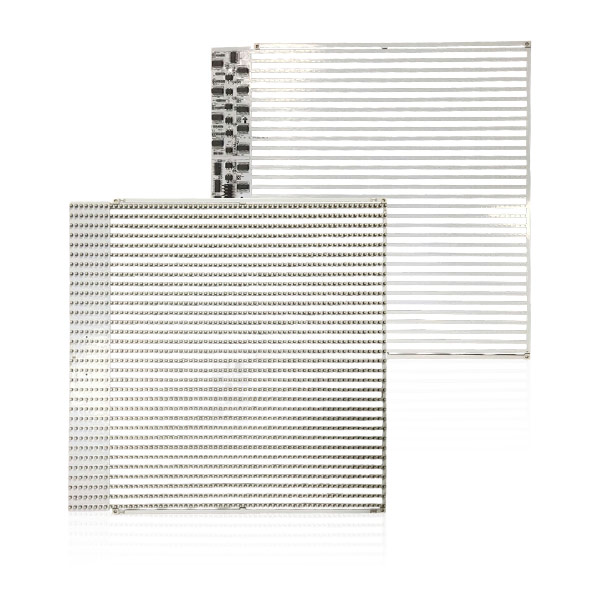

			Best Quality Material, Modules and Chips The material, modules and chips are selected with great care. We purchase the material from reputed vendors. Chips are purchased from big brands like Cree (USA), Nichia (Japan), Epistar, Opto (Taiwan). ICs are bought from MBI, TMS, PWM and MingYang. These manufactures are known for their great quality products.

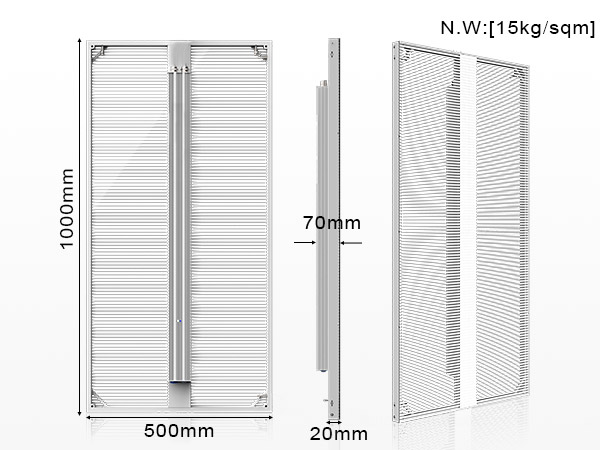

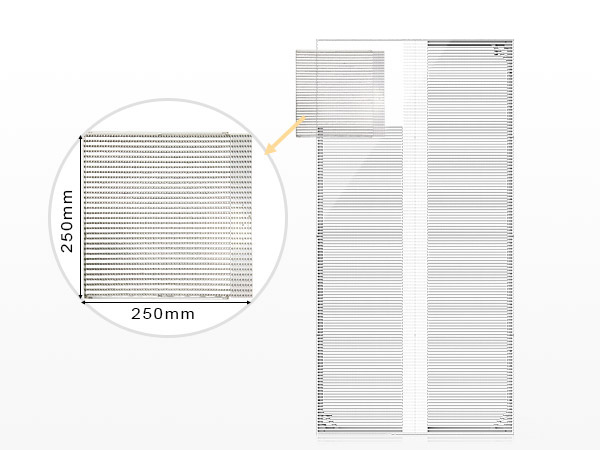

Modular design Cabinet adopt modular design can be fast install and disassemble. It only needs to change the module when there is problem. It is very easy and quick solve the problem.
			Cost saving No need steel structure and no need to change the complicate support structure which saves a lot of installation cost.
Technical upgrades Compare with the common led display, the transparent rate increase 60%. You can hardly see the body of screen but only the like image in the air.
			Standard Control Process for Perfect Performance The video process can receive different input signals and its video integrate machine works with sending card to create complete image. It's intelligent remote control lets you manage everything very conveniently. Receives synchronous message on the screen, getting everything under control.
Simple and fashion The PH5.2-10.4 Transparent LED Screen Suitable for CBD, high-end hotel, 5A level office building, 4S car store, airport, glass elevator, brand chain stores etc .

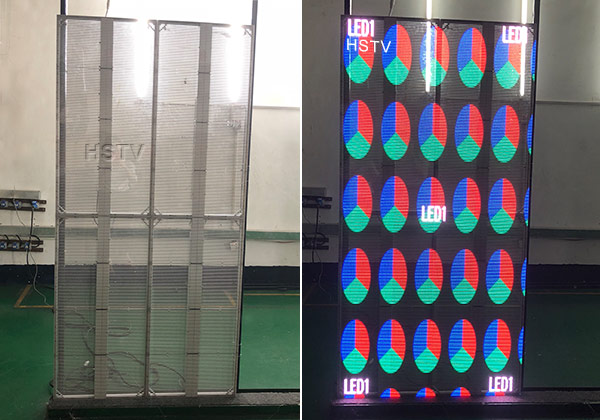

			Factory real shot Focus in every single detail of product. Keep improving the quality.
Our Company Building Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality products that have passed certifications like CE, FCC, RoSH and SGS and many more.
			Best Quality Guaranteed Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
Best After-sale Service If your product is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
			Fastest Delivery and Best Online Services OptoKingdom provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	SMD2727
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(800-960mcd)
Chip parameters	Green (520-525nm) IV:(1350-1650mcd)
Chip parameters	Blue (470-475nm) IV:(330-400mcd)
LED Module
Pixel Pitch	5.2-10.4mm

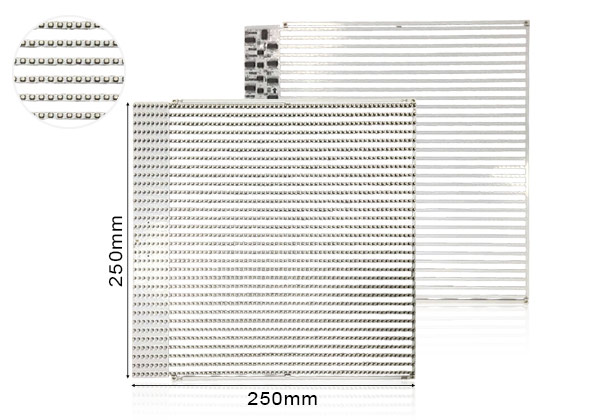

Module Size(W*H)	250×250mm
Module Resolution	48×32=1536(Dots)
Module Weight	0.8kg
Pixel Density	18432 Dots/㎡
Brightness	>3000cd/㎡
Nearest Viewing Distance	9m
Power Consumption (Max)	400 w/㎡
Power Consumption (Average)	120 w/㎡
Refresh Rate	>1800Hz
Drive Mode/Driver Position	1/6 Scan
Display Function	Text,Graphics,Video
Frame Frequency	no less than 60 frame/sec
Input Voltage	AC110-220V±10%,50/60Hz
Output Voltage	DC-5V,40A/60A/80A
Color Grayscale	16 bit
Gray Scale per Color	65536 level
Color Processing	R(1024)×G(1024)×B(1024)
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional
MTBF( mean time between failures)	5000 hours
Life-span	100,000 hours
Protection Level(front)	IP66
Malfunction Dot Rate	less than 0.0001
Working Temperature	-20℃~50℃
Humidity	15%~85%
Control System
Control Method	Synchronization/Asynchronization
Control System	Sending Card, Receiving Card,Receiving HUB
Software	Nova Studio( HSTV-Nova)
Language	Chinese, Traditional Chinese, English, French, Spanish, Korean, Japanese, German, Russian
Control Card Input	DVI,USB,RJ45, HDMI(Sold separately)
Input Signal	AVI/MPG/MPEG/TXT.etc
PC Operating System	Microsoft Windows 10, XP and Windows 7
Communication Type	Net cable, 3G, WIFI(Sold separately)
Certificate	CE,ROHS,FCC,ISO9001, TUV
