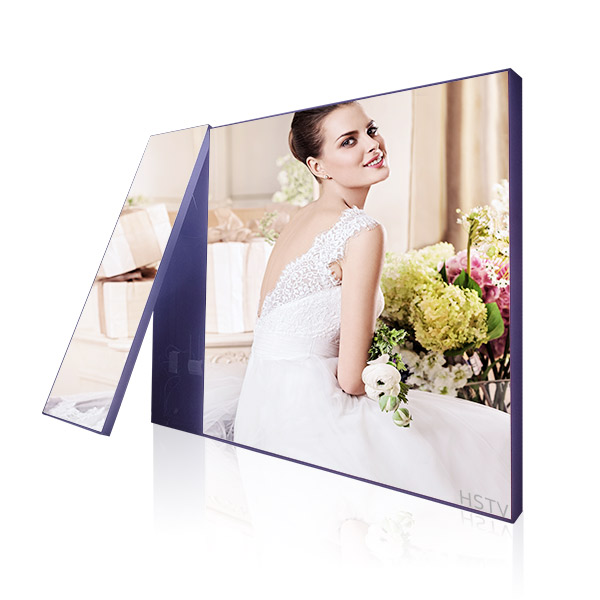

Name: PH4 Indoor Former Maintenance Led display 1064×2344mm
Brand: HS
Price: 2050.00 USD
Availability: InStock
Rating: 0 (0 reviews)

PH4 Indoor Former Maintenance Led display 1064×2344mm #F4

Price:US$ 2050.⁰⁰

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

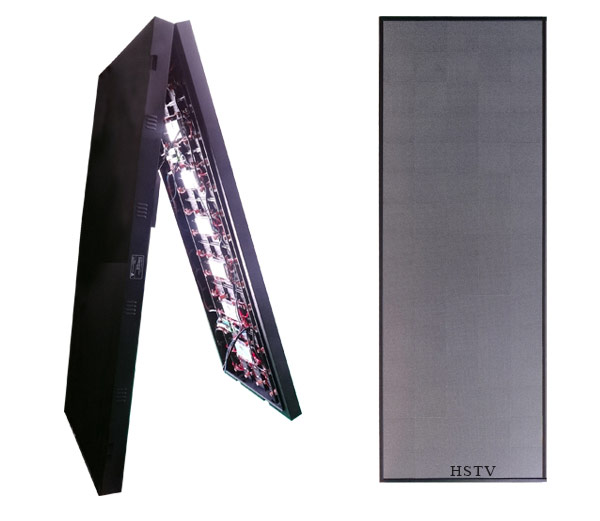

Front Service Cabinet It features a front service cabinet which makes it ideal to use at any place. The cabinet is easy to service and slice freely which saves on maintenance costs. The Front Service LED Display can be directly mounted on wall without help of sophisticated tools.

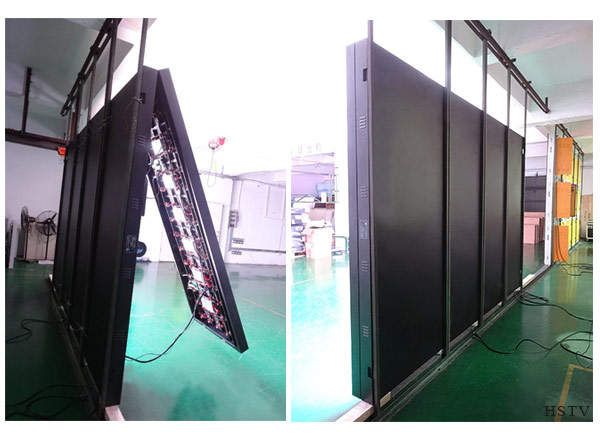

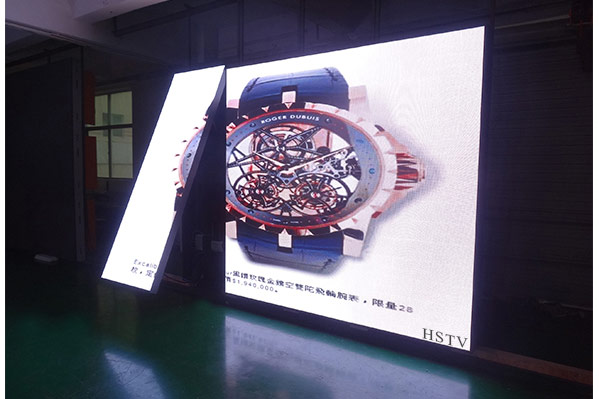

			Front Open Design Its front service design makes it easy to install and carry. The ultra-lightweight saves on transportation cost and unique design allows mounting on the wall without any tools. There is no maintenance cost, thus it also saves on maintenance costs.
Best Quality Material, Modules and Chips The material, modules and chips are selected with great care. We purchase the material from reputed vendors. Chips are purchased from big brands like Cree (USA), Nichia (Japan), Opto (Taiwan). ICs are bought from MBI, TMS, PWM and MingYang. These manufactures are known for their great quality products.
			Simplified Structure - Easy to Install The Front Service LED Display can be easily mounted on the wall by using its setscrews and L shaped connectors. There is no need of sophisticated tools and there is no need of labor. It saves money for your project as it doesn't require steel installation structure.

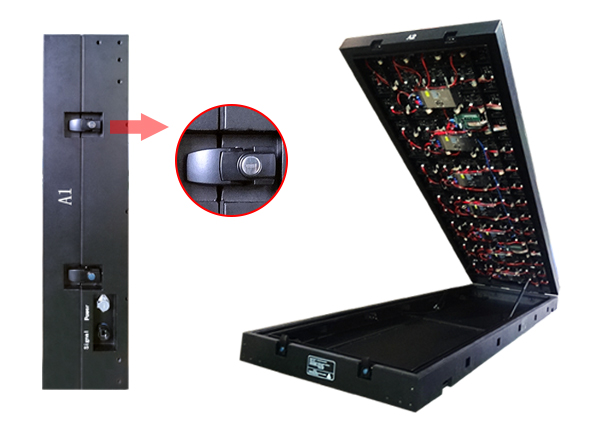

Bottom Safety Lock The display features a safety lock on the bottom which enhances its safety. The easy-to-open safety lock can be opened very easily. Mounting and unmounting the display becomes very easy with the safety lock.

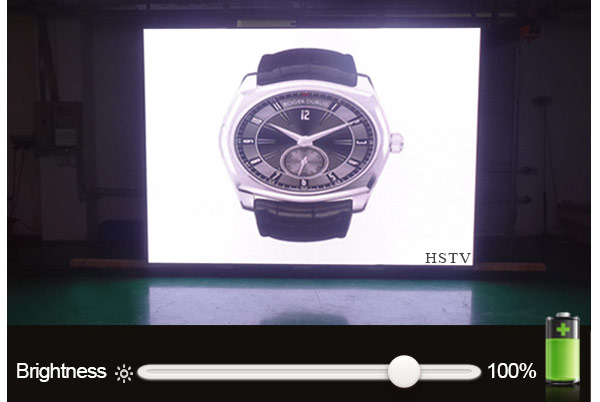

			Automatic Brightness Adjustment - Save Electricity The Front Service LED Display has a multi-functional card with works with sensor. The display can adjust the brightness automatically according to the system. It presents you a clearer picture and also saves some electricity.

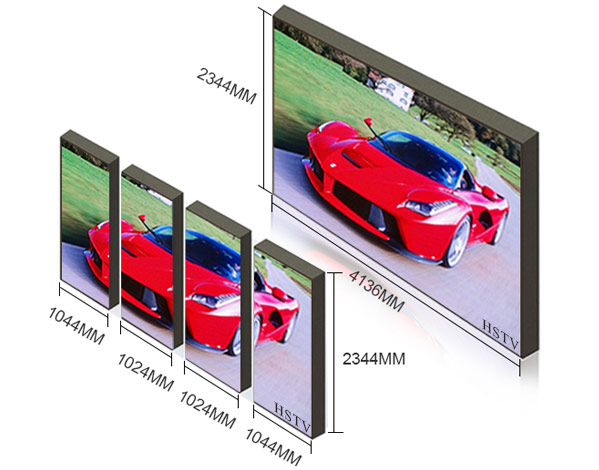

Customized Cabinet Sizing The front service cabinet is designed in standard size but can be customized as per your needs. You may change the design as per the area of installation. Various screen sizes splice freely according to the environment of installation place.

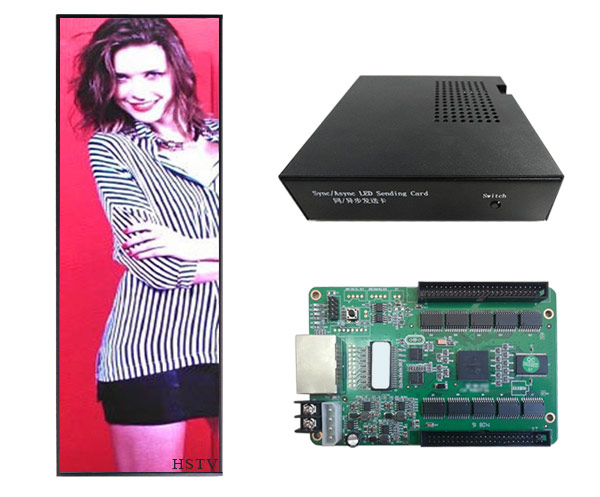

			ECSR control card Front service cabinet features ECSR control system that supports Wi-Fi, 3G and USB-stick to release program. It supports different output formats including pictures, videos and text. It also supports UTP (Unshielded Twisted Pair) to connect LED screen and control the system within 100 meters.

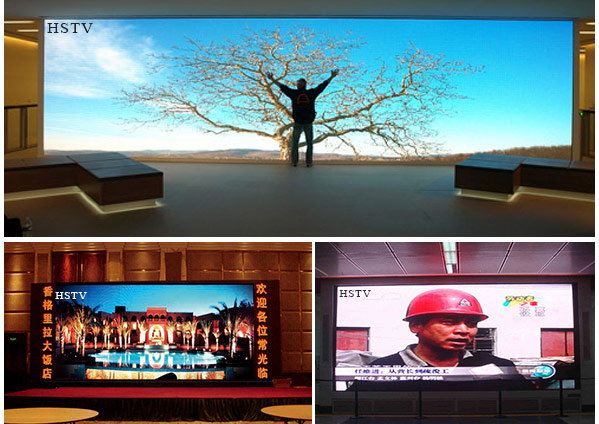

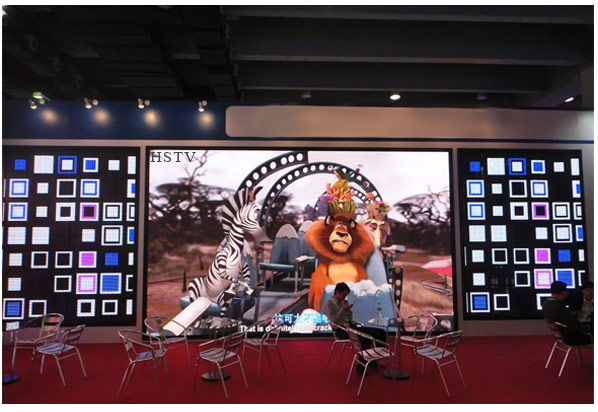

Application The Front Service LED Display can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration, video displays, educational purposes and much more. You may use it at outdoor areas like exhibition, summit, malls, stages, hotel and at many more outdoor places.
			Our company building Our company is built on values, and those values reflect from our product quality, support service and customer care. Have a look at our company building. This is the place where we create best quality product that have passed certifications like CE, FCC, RoSH and SGS and many more.
Best Quality Guaranteed Quality is the word we live by. Our "Quality Management, Continual Improvement, Excellent Service, Quick Response" are strictly followed throughout the process. Our products have passed many certifications including CE, FCC, RoSH and SGS certification and many more. So you may always rest assured about best quality products.
			Best After sale service If your Front Service LED Display is defected and is in warranty period, we offer you free accessories for the product. Whenever you need us, we are always there for you. Our support staff is more than willing to assist you for any query or concern. Feel free to contact us any time.
Fastest Delivery and Best Online Services OptoKingdom provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the leading logistics who ensure fastest and safest delivery of your products.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	SMD2121 black body
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red (620-625nm) IV:(250-300mcd )
Chip parameters	Green (520-525nm) IV:(450-550mcd)
Chip parameters	Blue (470-475nm) IV:(100-120mcd)
LED Module
Pixel Pitch	4mm
Module Size	256×128mm
Module Resolution	64×32=2048(Dots)
Module Weight	0.23kg
LED Cabinet
The entire screen size(WHD)	1064×2344×210mm
Operating Temp/Humidity	0℃~45℃，15%~85%RH
Display Dimension（W*H）	1024×2304mm
Storage Temp/Humidity	-15℃~50℃，15%~85%RH
Resolution W*H(dots/set)	256×576=147456dots
Frame Frequency	no less than 60 frame/sec
Cabinets Material	Steel
Input Voltage	AC110-220V±10%,50/60Hz
Cabinet Weight	121kg/PCS
Output Voltage	DC-5V,40A/60A/80A
Brightness	≥1300cd/㎡
Color Grayscale	16bit
Gray Scale per Color	65536 level
Viewing Angle	140(Horizontal),140(Vertical)
Color Processing	R(1024)×G(1024)×B(1024)
Nearest Viewing Distance	5m
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional
Total Power Consumption (Max)	1300W/H
MTBF( mean time between failures)	5000 hours
Total Power Consumption (Average)	380W/H
Life-span	100,000 hours
Refresh Rate	≥1000Hz
Protection Level(front/back)	IP54/IP43
Drive Mode/Driver Position	Constant driving 1/16 Scan，Combined diver board
Malfunction Dot Rate	less than 0.0001
Display Function	Text,Graphics,Video
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card,Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	Led show ( HSTV-ECSR )
Communication Type	WIFI, Net cable，3G（Sold separately）
Language	Chinese，English
Certificate	CE,ROHS,FCC,ISO9001，TUV
Control Card Input	RJ45，HDMI，USB
