P10 Outdoor LED Advertising Display

PH10 Outdoor SMD LED Screen 960×960mm #OFSC10

Price:US$ 534.⁰⁰


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

Large outdoor led advertising display Widely used for station, highway, shopping mall, beach, commercial center and any outdoor places.
			LED advertising display Pixel pitch : 10mm Pixel Configuration: smd Brightness: over 7500cd/m^{2 Refresh Rate :over 1000Hz Drive Mode: 1/2 Scan Panel dimension: 960*960mm}
Professional Concise Design with Low Operation Cost Concise design makes it lighter and thinner than traditional panel, saving your transportation and labor cost.

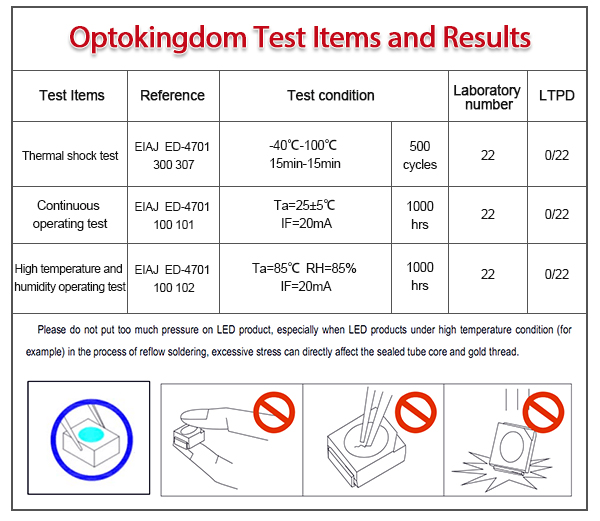

			Reliability The lamp wicks selling on our shopping mall have passed strict test to ensure reliable performance and long lasting lifespan.

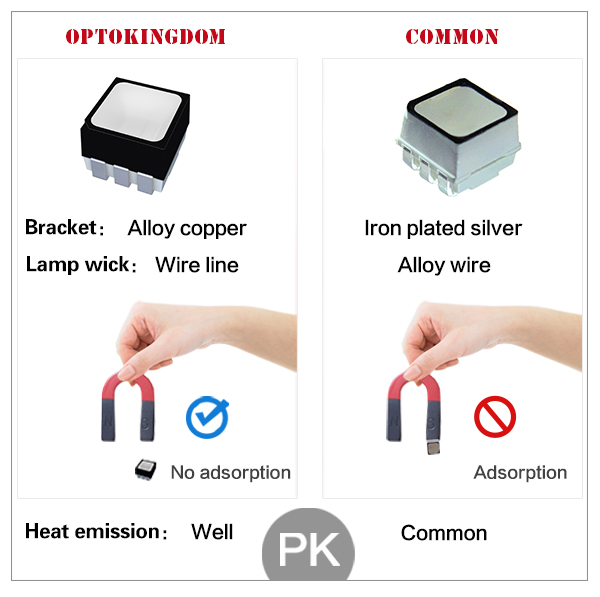

Material We use high quality alloy copper lamp wicks for outdoor SMD products to ensure strong heat emission.
			Outstanding outdoor performance SMD led display become more and more popular. whatever picture, text , or video can be shown clear and attractive.
Excellent Gray Scale Makes a Real Picture High grey scale level makes a clear image. The best choice for making led display.
			High Brightness Perfect Outdoor Performance Over 7500nits brightness , clear image even in the rainy day or in the strong sunshine. manual and automatic brightness adjustment available makes it suitable for any different environment
High IP Rating IP66, Safety and Reliable Special waterproof design protect your product out of water , the high quality is worth to trust.
			High Refresh Rate and Contrast Ratio Excellent Performance Smooth display image is realized shooting with 1000Hz. Ensuring the clear image

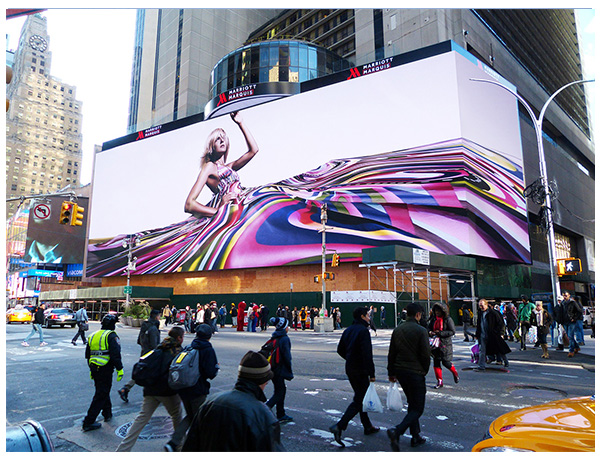

Application Our products have been installed in all over the world.Indoor rental display widely used in the mall,bank,KTV,Hotel,Airport.
			Outlook of our company building We have passed CE, FC, RoSH and SGS certification and so on. We promise offer quality product to every customers.
Best online service We offer online service, you can contact us at any time. we will solve your problem as soon as possible. All components offer free during warranty period.
			Good after-sales service If the product is faulty we will provide free accessories of the product to you during the warranty period.
Fast and safe delivery After you pay the earnest money we will manufacture and deliver your product immediately.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

Technical Specifications	OFSC10-A	OFSC10-B
Pixel Pitch	10mm
Type	SMD3535
Chip parameters	Red λd:(620-625nm) IV:(800-960mcd)
Chip parameters	Green λd:(520-525nm) IV:(1350-1650mcd)
Chip parameters	Blue λd:(470-475nm) IV:(330-400mcd)
Module Resolution	32×16=512(Dots)
Module Size	320×160mm
Pixel Density	10000 Dots/㎡
Cabinet Resolution	96×96=9216(Dots)
Cabinet Dimension(WHD)	960×960×175mm
Cabinets Material	Steel
Cabinet Weight	39kg
Brightness	≥7500cd/㎡	≥5000cd/㎡
Viewing Angle	120(Horizontal),120(Vertical)
Nearest Viewing Distance	13m
Power Consumption (Max)	1000 w/㎡	950 w/㎡
Power Consumption (Average)	300 w/㎡	250 w/㎡
Refresh Rate	≥1800Hz	≥1800Hz
Input Voltage	AC110-220V±10%,50/60Hz
Grey Scale Levels	16bit
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional
Life-span	100,000 hours
Protection Level(front/back)	IP66/IP54
Working Temperature	-30℃~50℃
Humidity	15%~85%
Drive Mode/Driver Position	Constant driving 1/2 Scan，Combined diver board	Constant driving 1/4 Scan，Combined diver board
Input Signal	AVI/MPG/MPEG/TXT.etc
Control Mode	Synchronization/Asynchronization
Control System	Sending Card, Receiving Card,Receiving HUB
PC Operating System	Microsoft Windows 7, XP and Vista
Software	LED Studio ( HSTV-linsn )
Language	Chinese、Traditional Chinese、English、French、Japanese、Russian、Thai、Spanish、Polish、Italian、Portuguese、Turkish、Dutch、Greek、Bulgarian、Romanian、Arabic
Communication Type	Net cable，3G、WIFI（Sold separately)
Control Card Input	DVI,USB,RJ45、HDMI（Sold separately)
Certificate	CE,ROHS,FCC,ISO9001，TUV
