Name: PH6 Indoor Rental 1/16 Scan Led Screen576×576mm
Brand: HS
Price: 225.00 USD
Availability: InStock
Rating: 0 (0 reviews)

PH6 Indoor Rental 1/16 Scan Led Screen576×576mm #IFSE6-A

Price:US$ 225.⁰⁰

Quantity:


+Wishlist
Share:

MOQ : 1 piece Warranty :24 months Lead Time : 7 days

			576×576mm PH6 Indoor Rental LED Screen Video Thanks for watching our product video, more product introduction, install and operate teaching lesson welcome to visit our "Video" webpage or our YouTube channel "Optokingdom LED".
Multipurpose High definition picture quality expands the reach, allowing more people to enjoy the display. It's multipurpose and can be used at banks, concerts, hotels, stations, summits and conference etc.
			Quick Installation and Easy-to-use Each module of China Indoor Rental LED Display weighs only 0.25kg and everything is installed inside, making it really lightweight. It's easy to install and use.

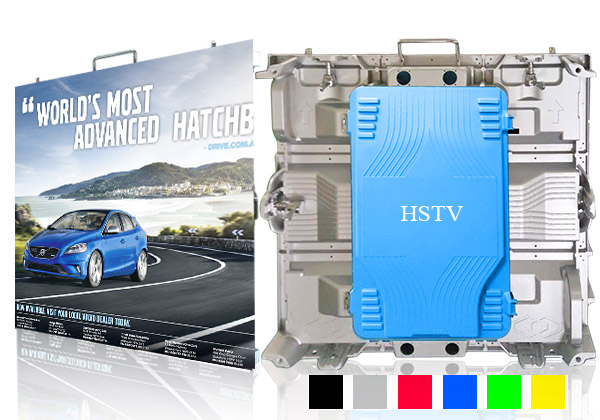

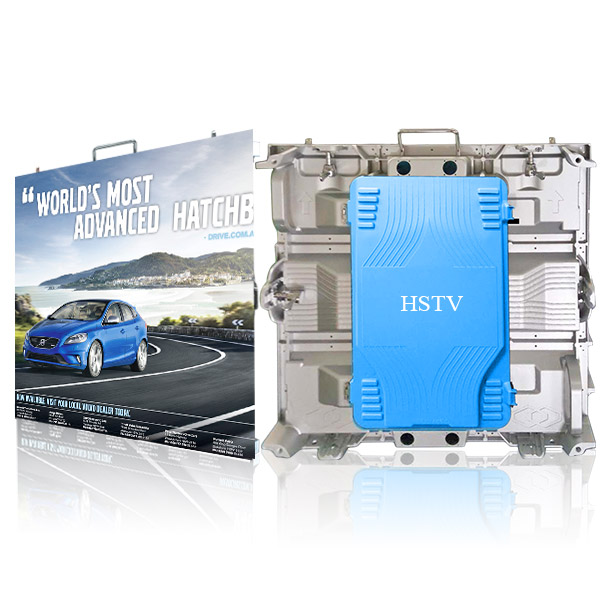

Lightweight Cabinet The aluminum cabinet weighs just 9kg - easy to carry and install. The cabinet is available in six stunning colors. The quick lock system allows easy transportation and installation.
			Pixel-perfect Display - Every time The luminance and chromaticity of each LED lamp is set to provide over 99% highly unified consistency. So you will see a pixel-perfect picture - every single time.
The Quality Module Replace module within minutes - just with a screwdriver. The small size and light weight of the module makes it easy to carry and install.
			Wider viewing angles China Indoor Rental LED Display features 140 horizontal and 140 vertical angles - so you will get a super quality image in a super large range.
High Grey Scale for better Performance OptoKingdom uses best quality ICs supplied by the leading brands make sure you get the outstanding performance you desired.
			High Refresh Rate for Flicker-free Picture High refresh rate of over 1000Hz ensure you gain outstanding, flicker-free picture for ultra-smooth user experience.

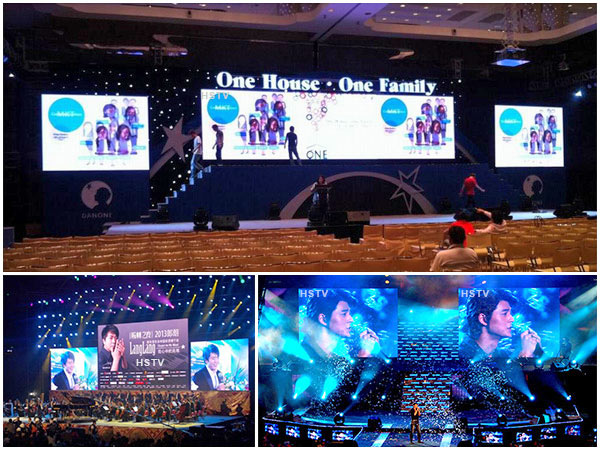

Application The China Indoor Rental Display can be utilized for a varied range of applications, like displaying the advertisements and for training purpose.



			One price for all You get the modules, cabinet, package box and other accessories for a single price, so no need of paying individually for anything.
Our Company Building A place of great infrastructure where we deliver the quality. With our unique approach, our products have passed CE, FCC, RoSH and SGS certificates, and many more.
			Quality at its best Quality is the word we live by, followed by Continual Improvement, Excellent Service and Quick Response. OptoKingdom follows Total Quality Management practice which is reflected in our products.
Quick Response - Fast Delivery: The support team of OptoKingdom is always there for you, whenever you need us. Proximity to the airport & port and cooperation with best logistic services allow us to ensure fast and safe delivery.
			After-sale Support OptoKingdom provides comprehensive after-sales support. So if the product is in warrantee period, we take care of the faults and damages.

Inquiry

Leave a message to get best quotation and solution!

* Your email :
* Message:	Your message must be between 20-8000 characters
*Design content:	Product specification and quotation Design sketch and layout Our Certifications
	Please upload your business card*:
* Code :

This item is currentiy out of stock. Please enter your email below. when in stock,we will let you know
Email:
Code:
	Submit Close

Your auto quote small assistant!
Size:	Length (m)	Height (m)
Length Cabinet:		Actual Length:
Height Cabinet:		Actual Height:
Totally Cabinet:		Total( EXW Price):
Need a specific quotation? Send to email *The specific quotation form includes tech para, picture, price, spare part, lead time ETC.

LED Lamp
Type	SMD3528
Brand	Epistar
Arrangement	1R1G1B
Chip parameters	Red:(625-630nm) IV:(275-300mcd)
Chip parameters	Green:(523-526nm) IV:(1000-1200mcd)
Chip parameters	Blue:(470-475nm) IV:(180-210mcd)
LED Module
Pixel Pitch	6mm
Module Size	192×192mm
Module Resolution	32×32=1024(Dots)
Module Weight	0.25kg
LED Cabinet
Pixel Density	27777 Dots/sqm
Frame Frequency	no less than 60 frame/sec
Cabinet Resolution	96×96=9216(Dots)
Input Voltage	AC110-220V±10%, 50/60Hz
Cabinet Dimension(WHD)	576×576×95mm
Output Voltage	DC-5V, 40A/60A/80A
Module Quanty /Cabinet	3×3=9(Pcs)
Color Grayscale	16bit
Gray Scale per Color	65536 level
Cabinets Material	Aluminum alloy Cabinet
Color Processing	R(1024)×G(1024)×B(1024)
Cabinet Weight	9kg
Brightness Adjustment	256 color levels, can be adjusted manually and automatically optional
Brightness	>800cd/sqm
MTBF( mean time between failures)	5000 hours
Viewing Angle	140(Horizontal), 140(Vertical)
Life-span	100, 000 hours
Nearest Viewing Distance	9m
Protection Level(front/back)	IP43/IP54
Power Consumption (Max)	800 w/sqm
Malfunction Dot Rate	less than 0.0001
Power Consumption (Average)	240 w/sqm
Operating Temp/Humidity	0^oC-45^oC,15%~85%RH
Display Function	Text, Graphics, Video
Storage Temp/Humidity	-15^oC-50^oC,15%~85%RH
Refresh Rate	>1920Hz
Drive Mode/Driver Position	Constant driving 1/16 Scan, Combined diver board
Control System
Control Mode	Synchronization/Asynchronization
Input Signal	AVI/MPG/MPEG/TXT.etc
Control System	Sending Card, Receiving Card, Receiving HUB
PC Operating System	Microsoft Windows 10 ,Windows 7 and XP
Software	LED Studio ( HSTV-linsn )
Communication Type	Net cable; 3G, WIFI(Sold separately)
Language	Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German
Certificate	CE, ROHS, FCC, ISO9001, TUV
Control Card Input	DVI, USB; RJ45, HDMI(Sold separately)
